Radio/Stereo

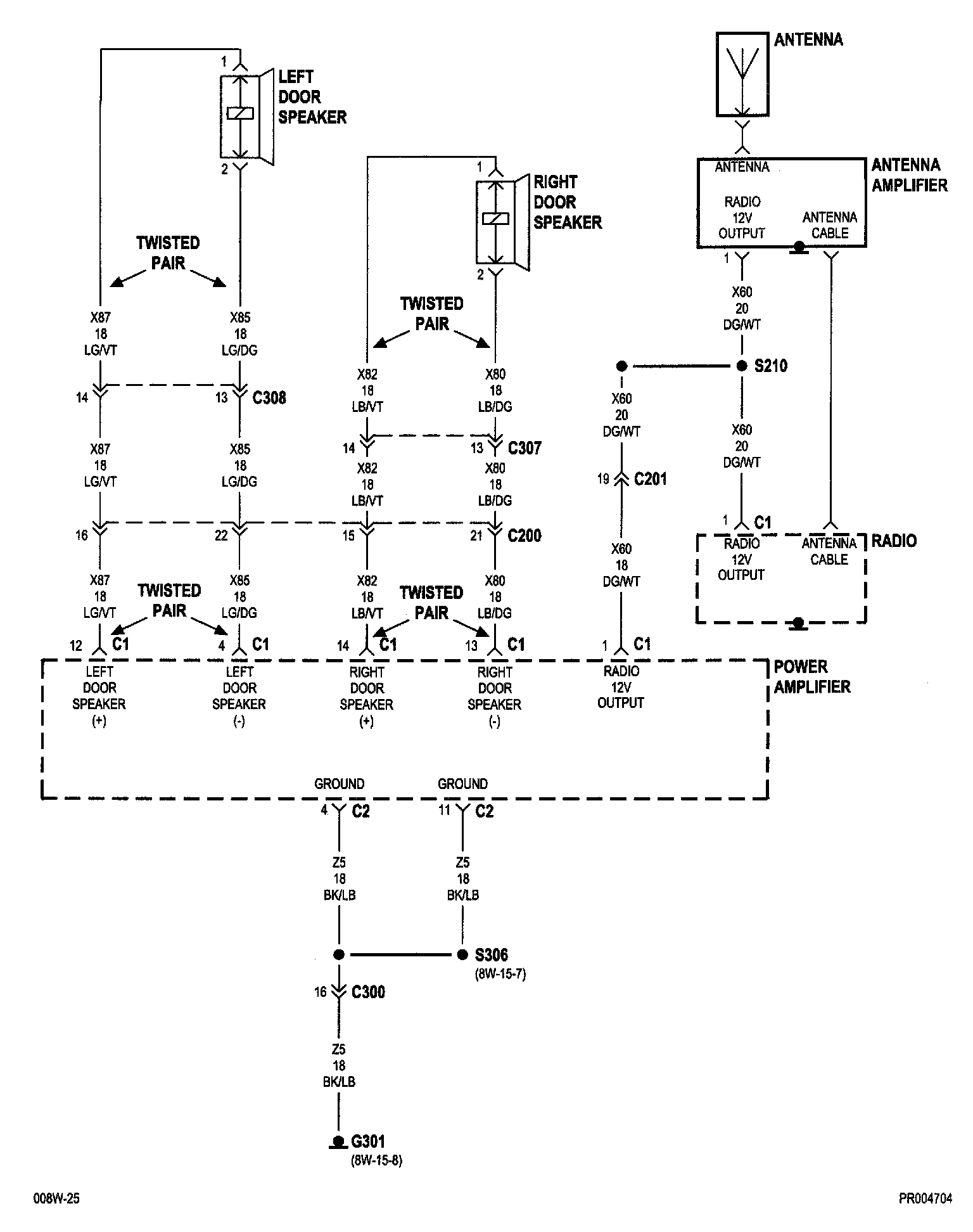

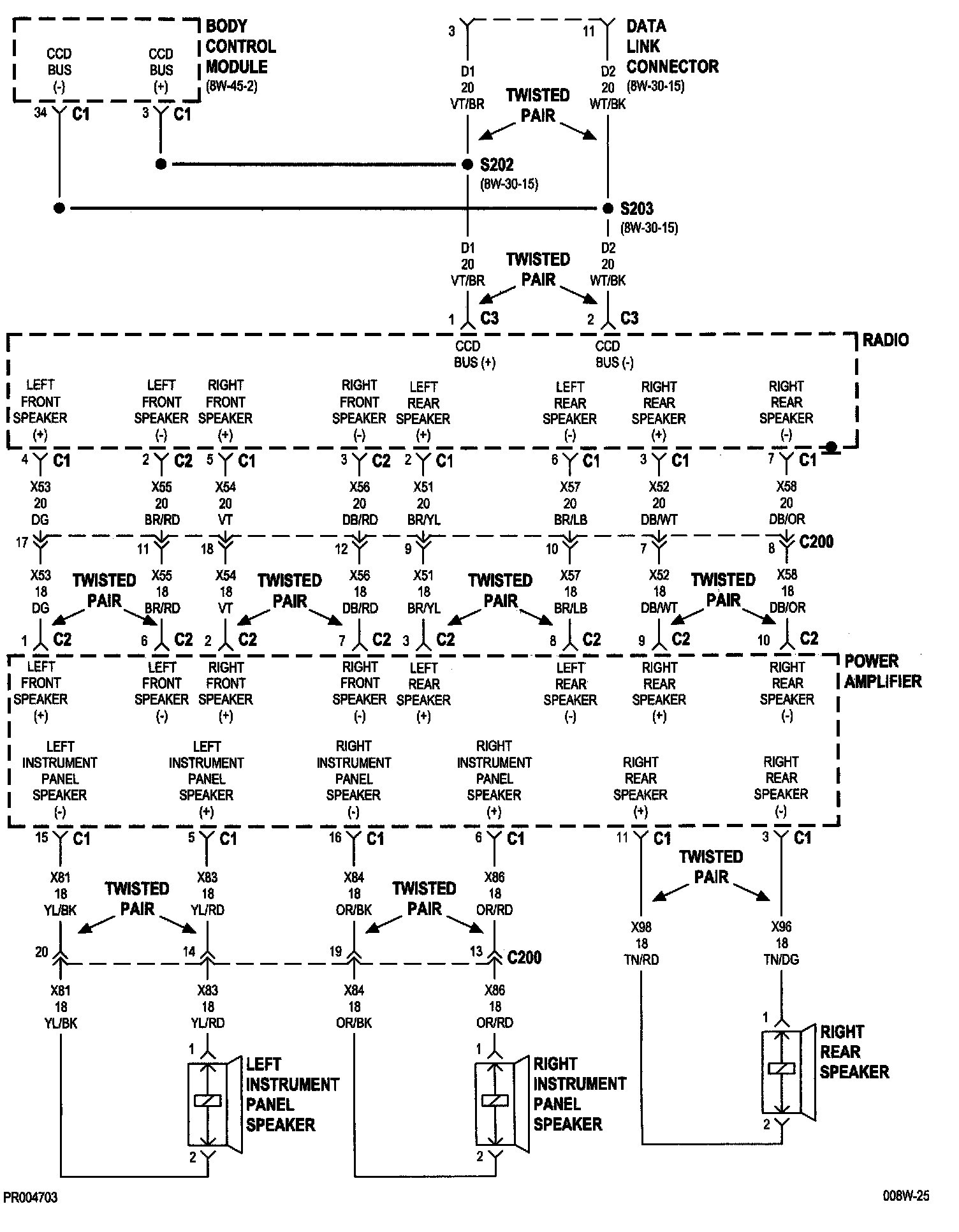

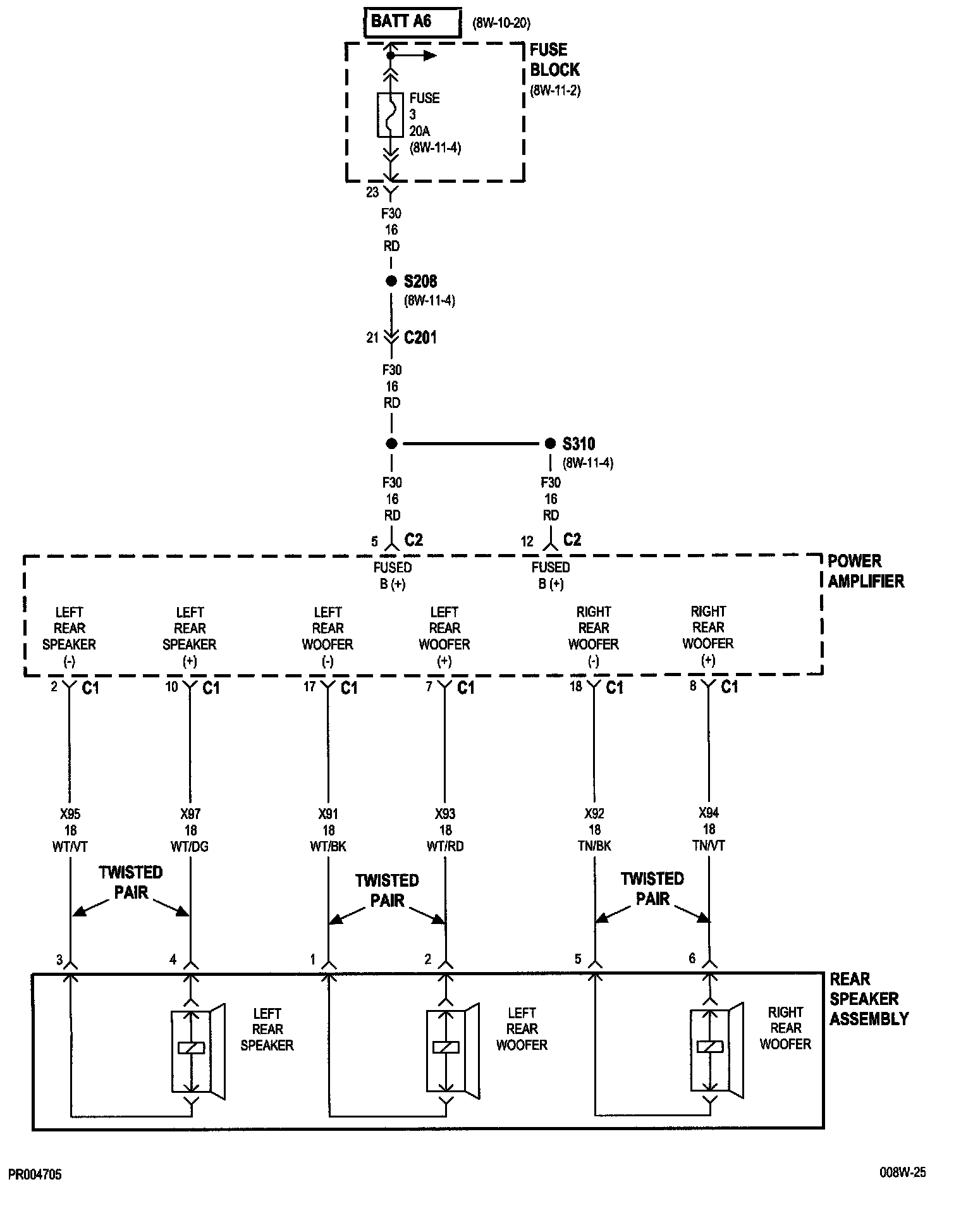

Audio System:

Radio Remote Controls:

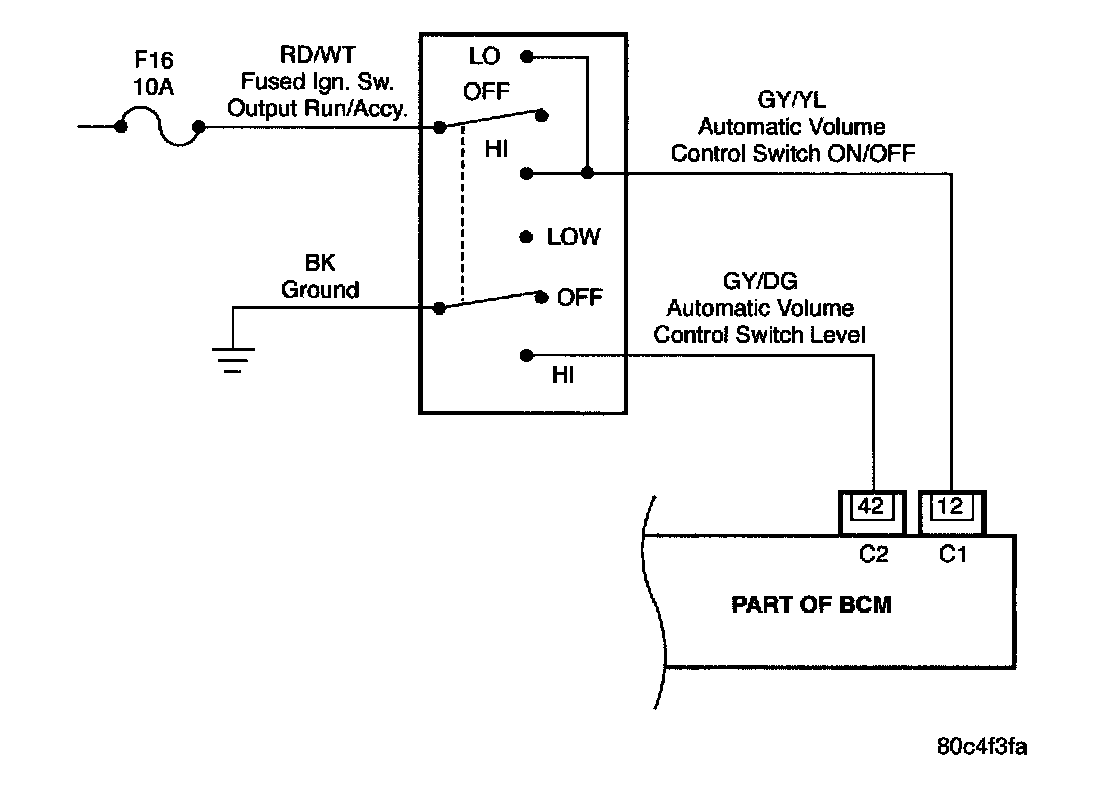

Automatic Volume Control Circuit:

8W-47-2:

8W-47-3:

8W-47-4:

8W-47-5:

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
Electrical Diagrams
