Wiring Diagrams

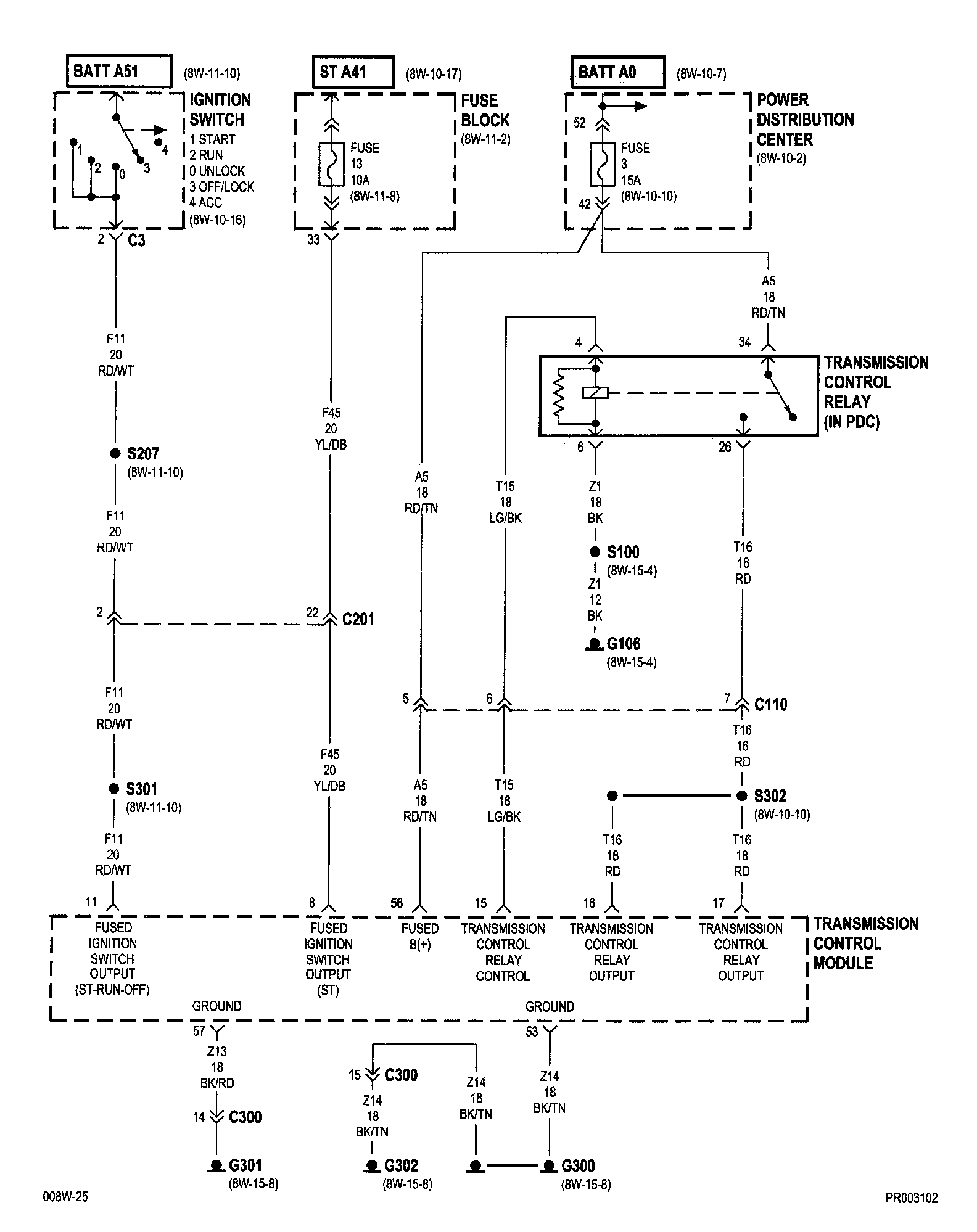

8W-31-2:

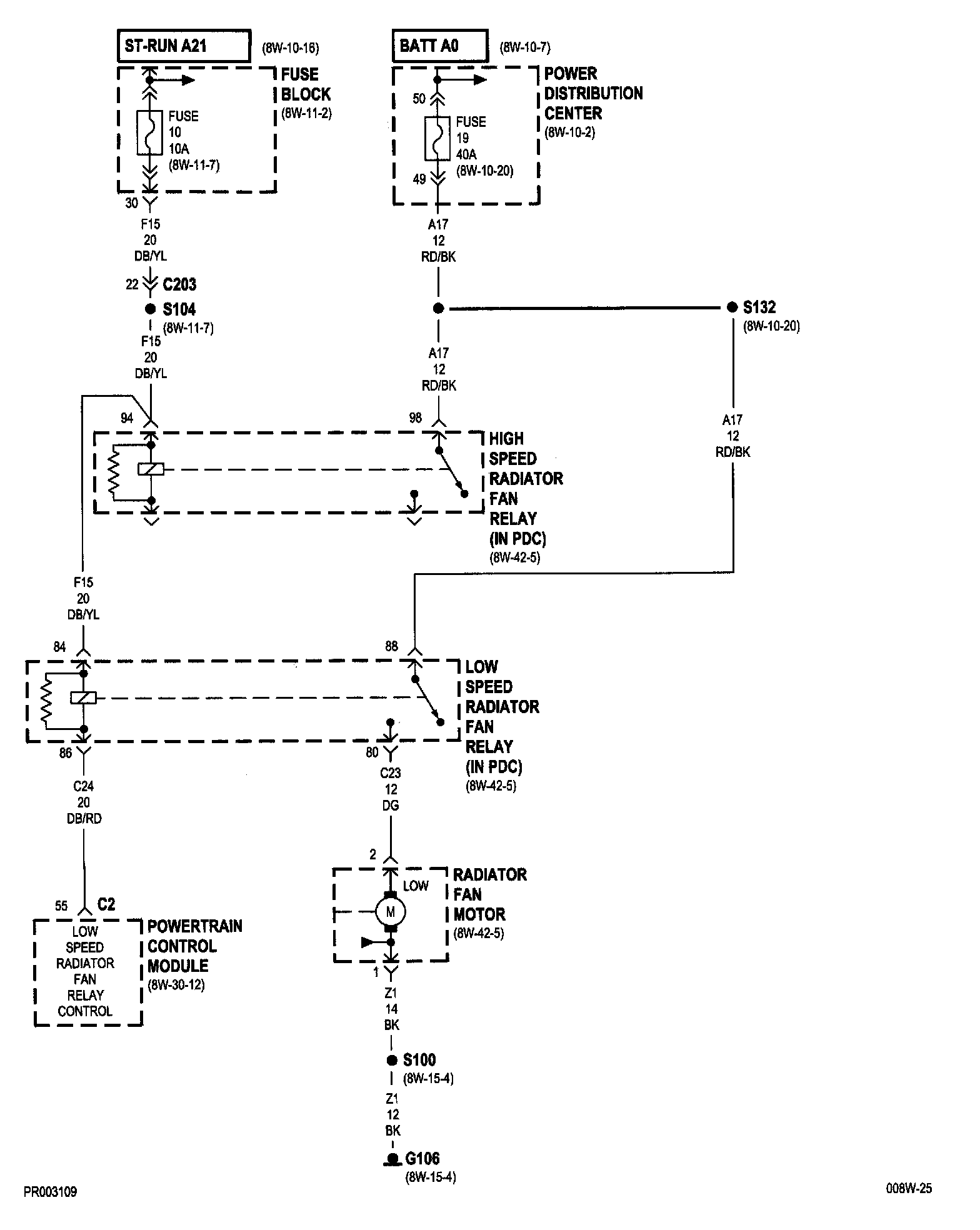

8W-31-3:

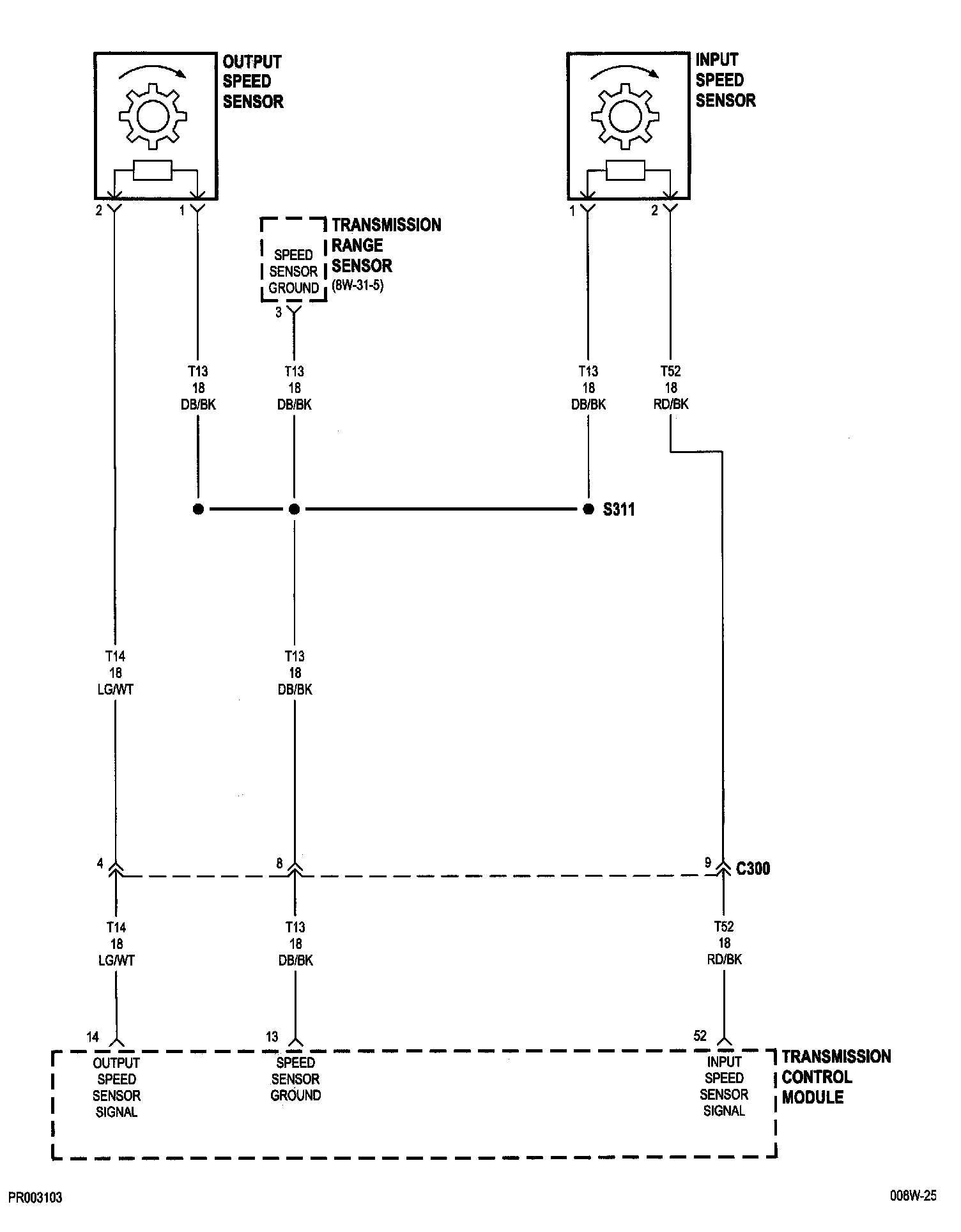

8W-31-4:

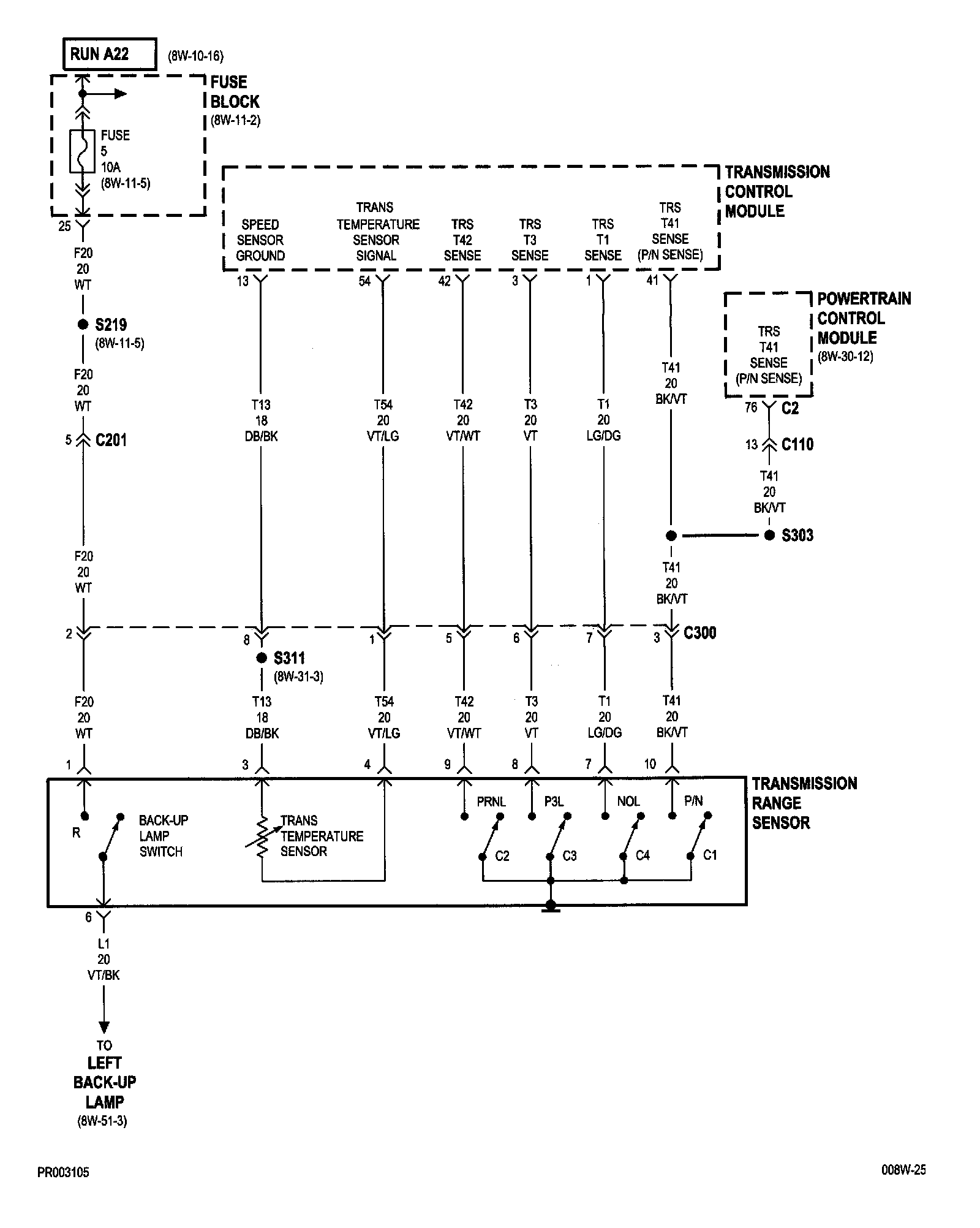

8W-31-5:

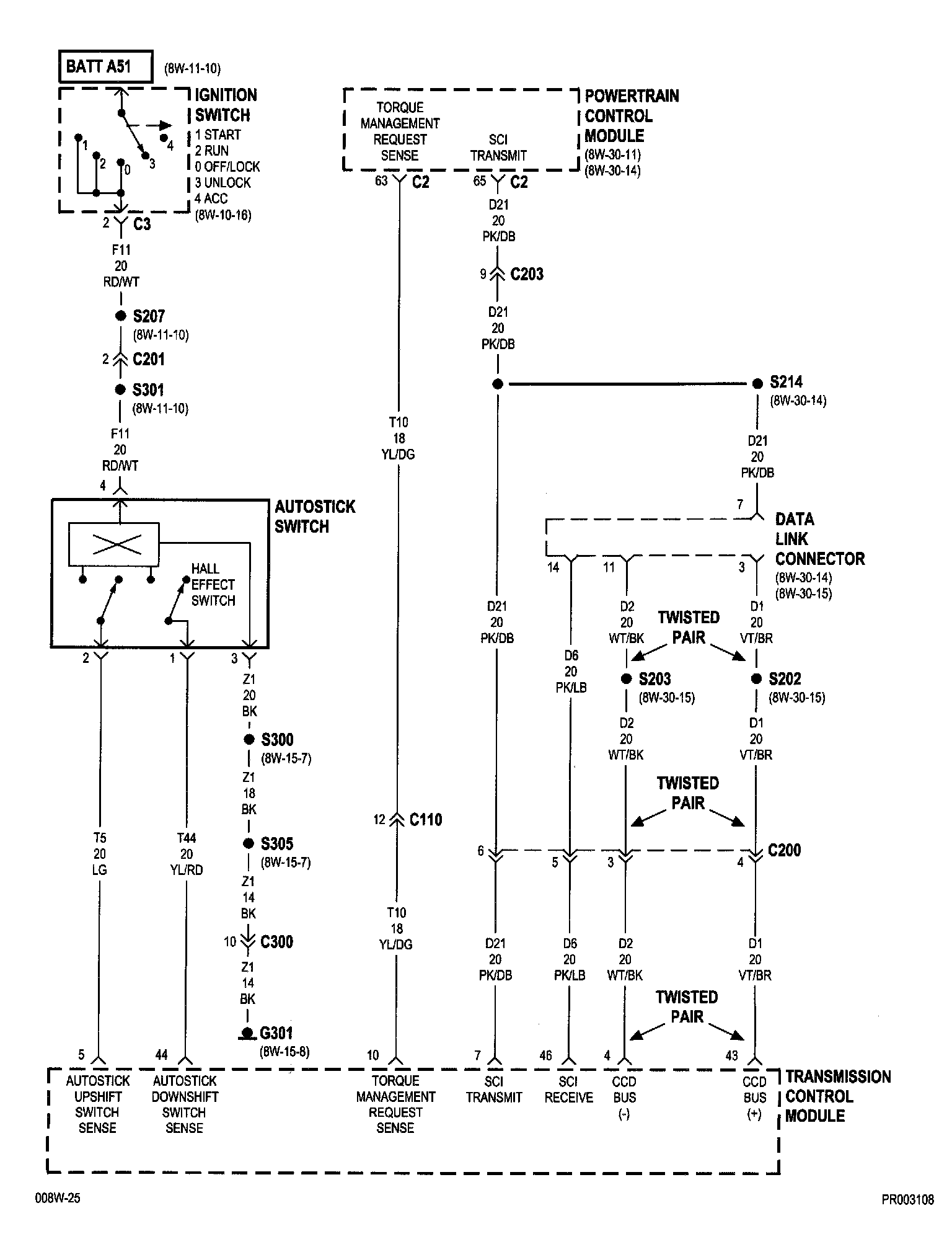

8W-31-6:

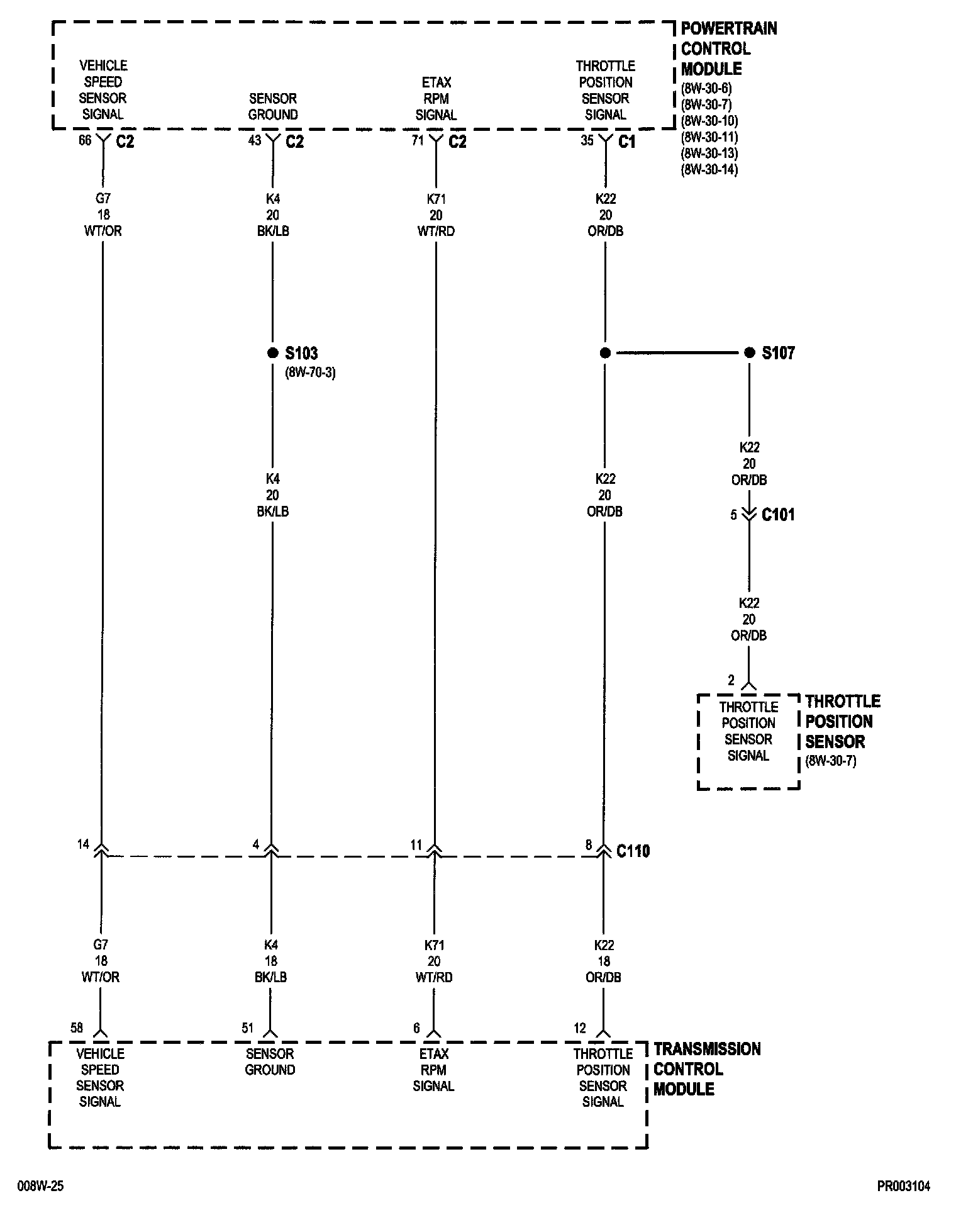

8W-31-7:

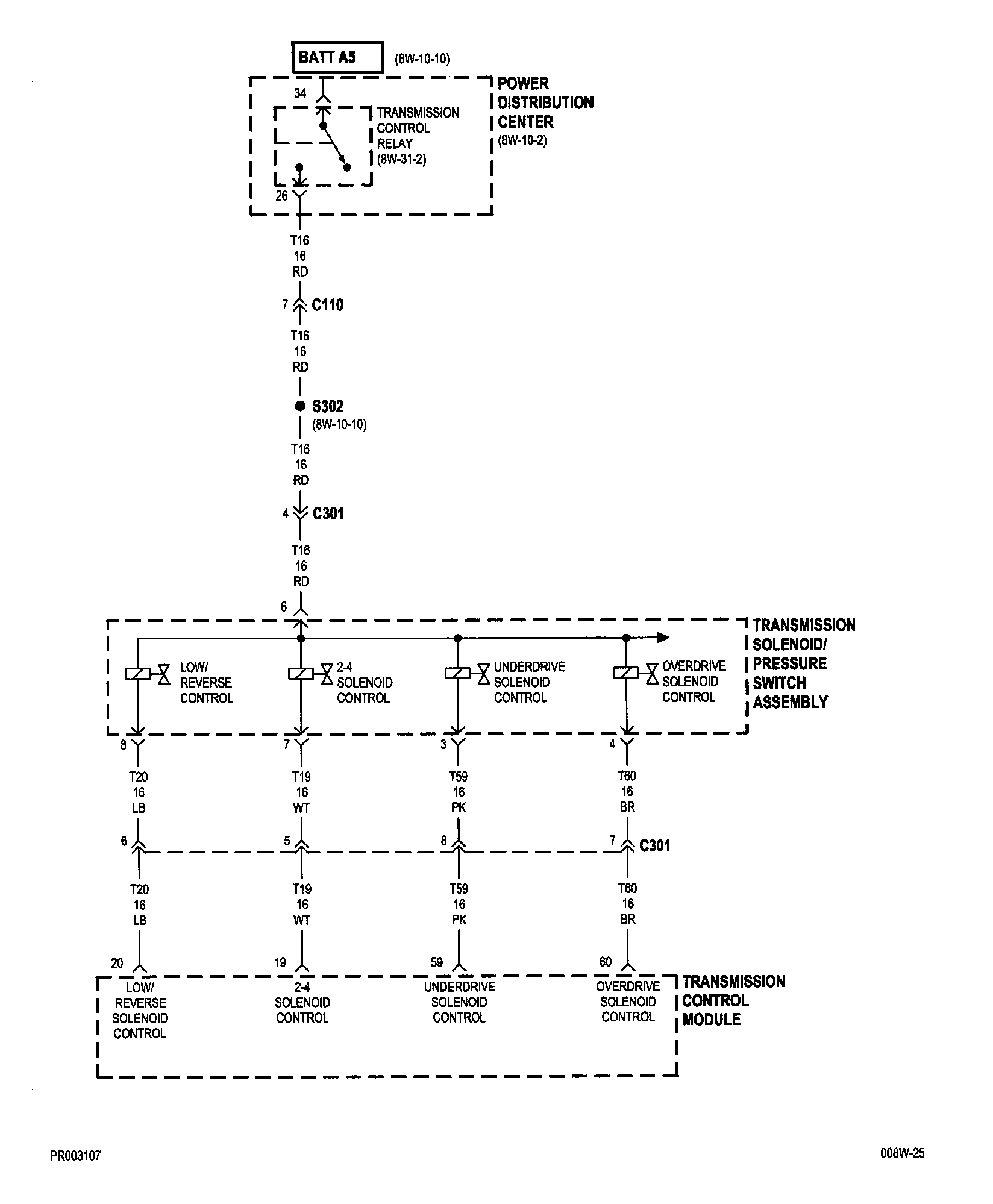

8W-31-8:

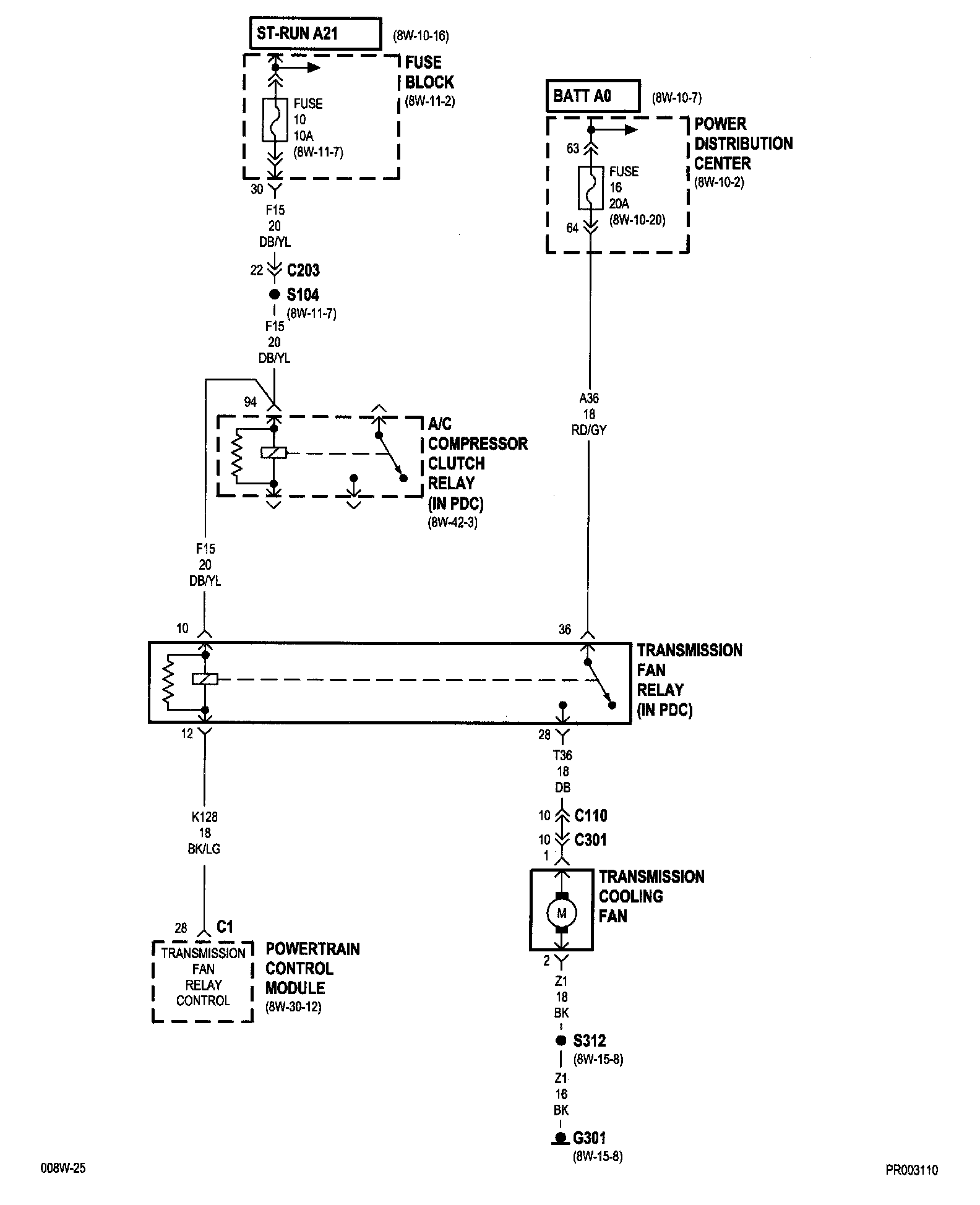

8W-31-9:

8W-31-10:

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
