Accessory Drive Belt

DESCRIPTION

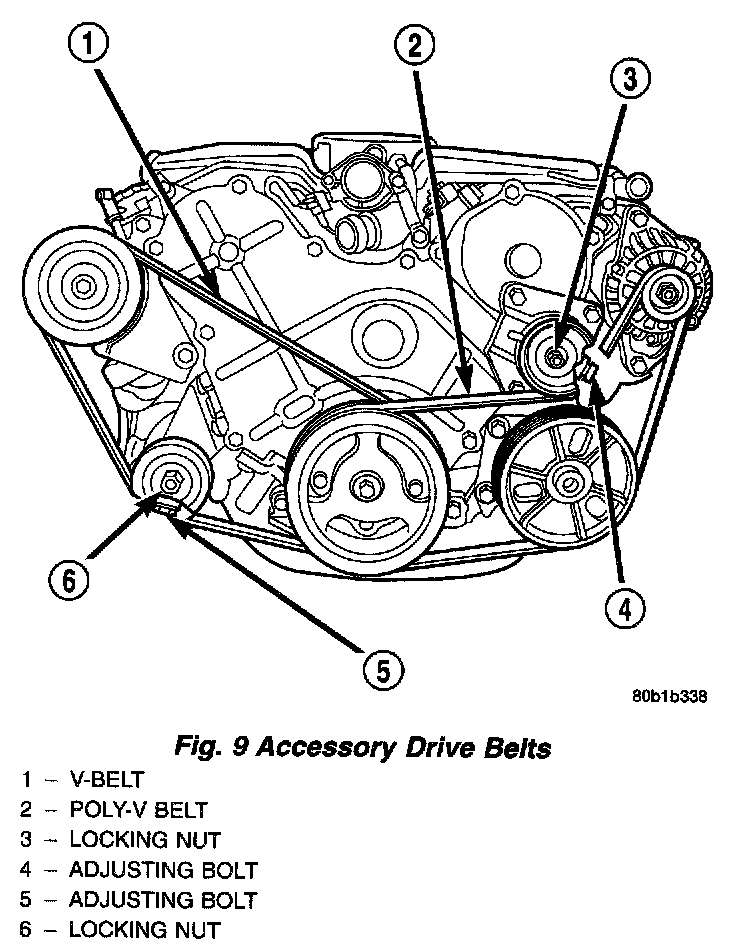

The accessory drive system on the 3.5L engine utilizes two different belts. A conventional V-belt drives the air conditioning compressor and a Poly-V belt drives the generator and power steering pump.

OPERATION
The accessory drive belts provide the link between the crankshaft and the engine driven accessories.
