Coolant Recovery System

DESCRIPTION

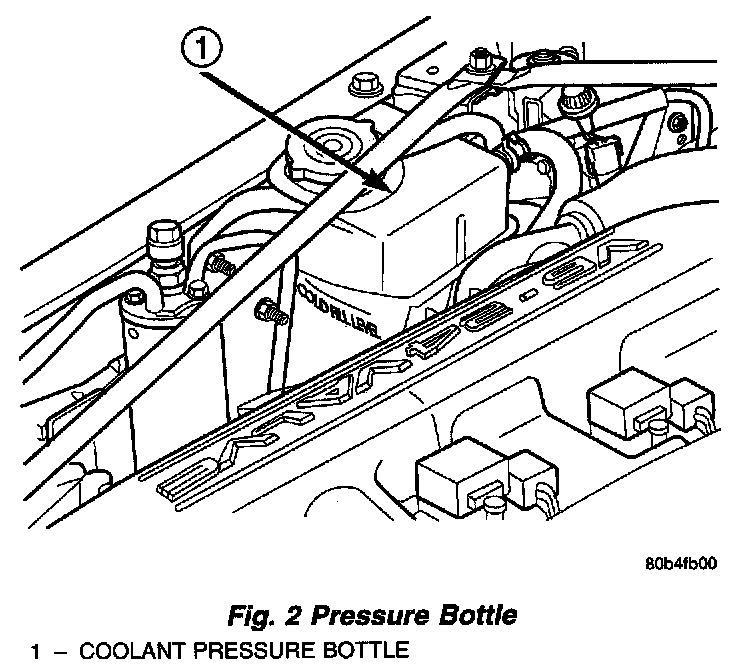

The coolant pressure bottle is made of molded plastic and is mounted to the right side fender support in the engine compartment.

OPERATION
This bottle keeps the coolant free of trapped air. It provides a volume for expansion and contraction and provides a convenient and safe method for checking coolant level and adjusting level at atmospheric pressure. It also provides some reserve coolant to cover minor leaks and evaporation or boiling losses.
