Cooling System Hoses/Clamps

DESCRIPTION







The cooling system utilizes both worm drive and spring type hose clamps. If a spring type clamp replacement is necessary, replace with the original Mopar equipment spring type clamp. To identify size of spring hose clamps, the size in millimeters has been stamped on each clamp. Refer to Hose Clamp Usage Chart for proper size and location of hose clamps.

OPERATION
The worm type hose clamp uses a specified torque value to maintain proper tension on a hose connection.

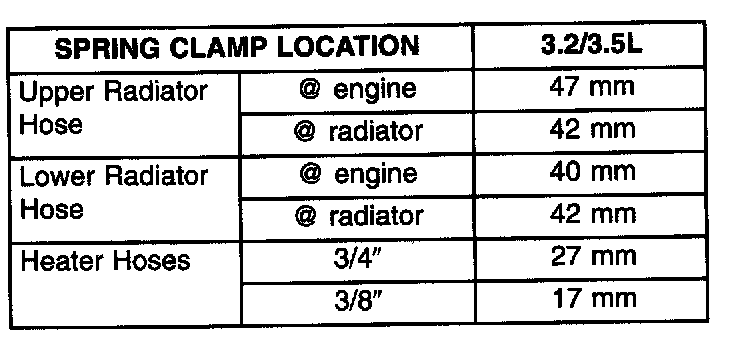

HOSE CLAMP USAGE CHART

The spring type hose clamp applies constant tension on a hose connection. To remove a spring type hose clamp, use constant tension clamp pliers to compress the hose clamp.
