Description

DESCRIPTION





Fig. 1

The 3.5 Liter (214 Cubic Inches) 60 degree V-6 engine is a single overhead camshaft design with hydraulic lifters and four valves per cylinder (Fig. 1). The engine does not have provision for a free wheeling valve train.

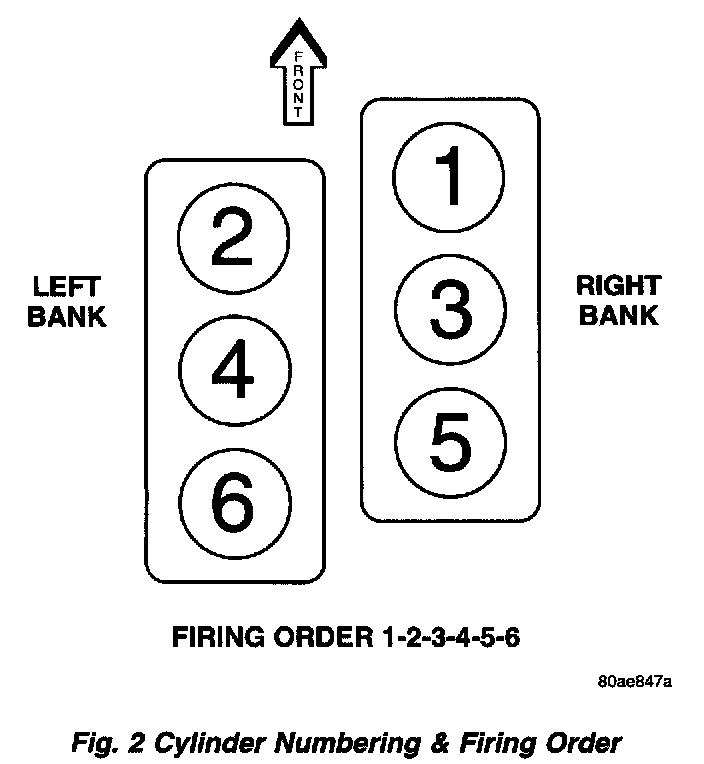

Fig. 2

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered (Fig. 2). The firing order is 1-2-3-4-5-6.

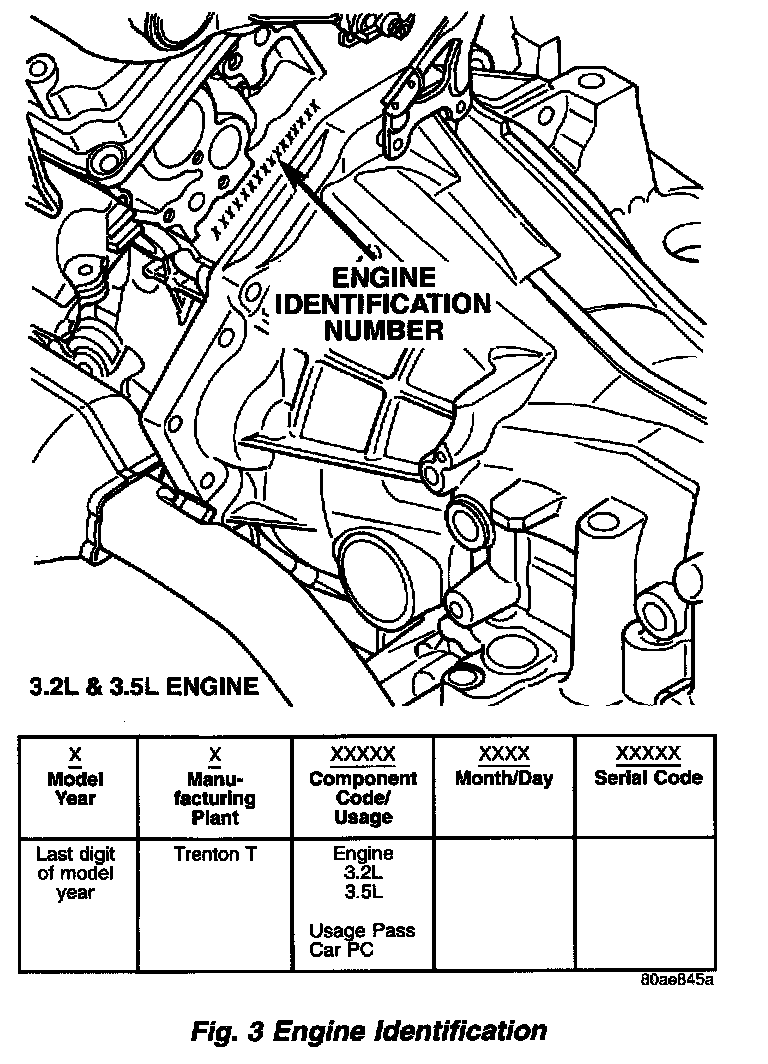

Fig. 3

The engine identification number is located on the rear of engine block just below the cylinder head (Fig. 3).
