Blower Motor: Service and Repair

The blower motor is located on the bottom right side of the unit housing. The blower motor can be removed from the vehicle without having to remove the unit housing assembly.

REMOVAL
1. Remove right side scuff plate.
2. Pull back carpet.
3. Disconnect blower motor wiring connector.

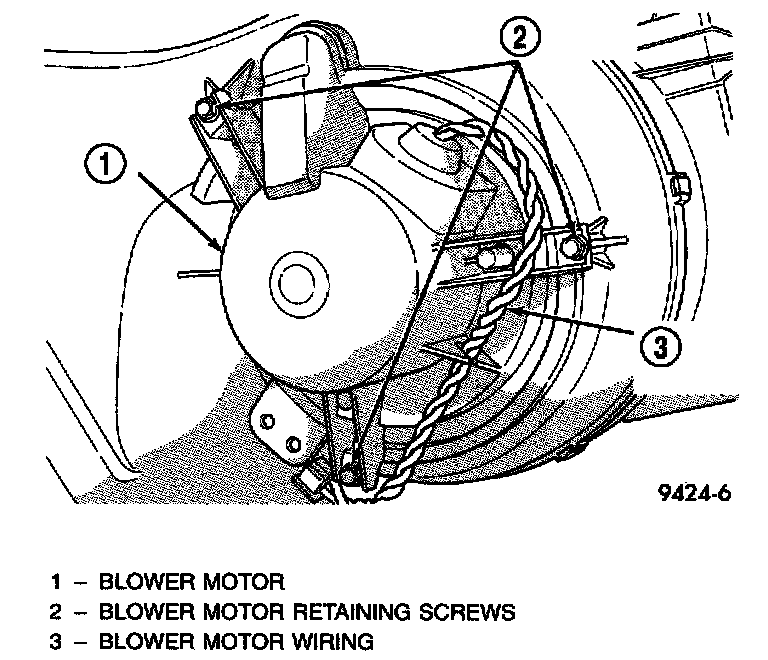

Blower Motor Retaining Screws:

4. Remove three blower motor retaining screws.
5. Lower blower motor assembly from unit housing.

INSTALLATION
For installation, reverse the above procedures.
