Cluster Printed Circuit Board Replacement

REMOVAL
1. Open hood.
2. Disconnect and isolate the negative battery cable.
3. Remove cluster. Refer to Instrument Cluster Removal and Installation.
4. Remove four cluster back cover retaining screws and remove the cover.

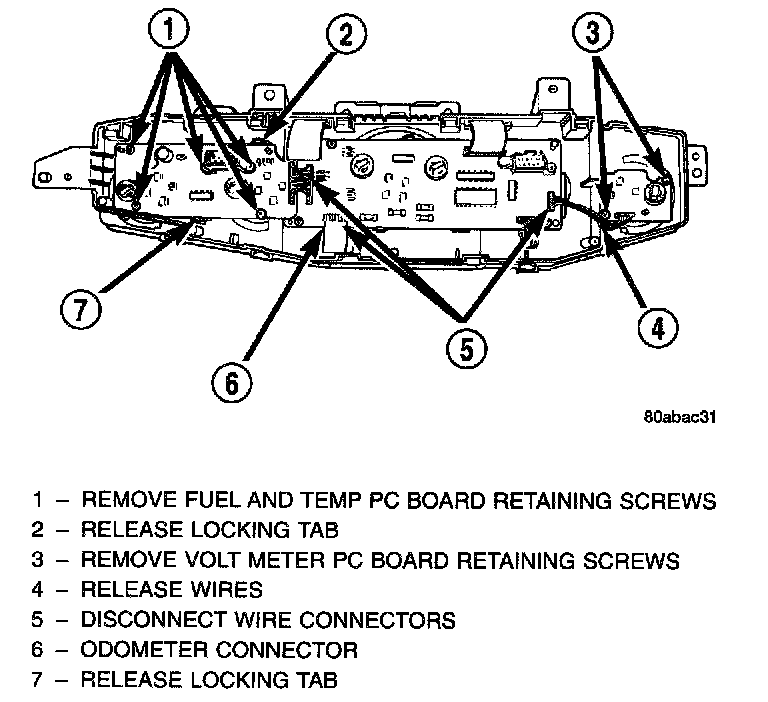

5. Disconnect the wire connector from the fuel and temp printed circuit board to the speedometer printed circuit board.

Fuel And Temp Printed Circuit Board:

6. Remove two printed circuit board attaching screws and remove two screws located at the base of the connector.
7. Remove PC board.

INSTALLATION
For installation, reverse the above procedures.
