Instrument Cluster Lamps Replacement

REMOVAL AND INSTALLATION
1. Disconnect and isolate the negative battery cable.

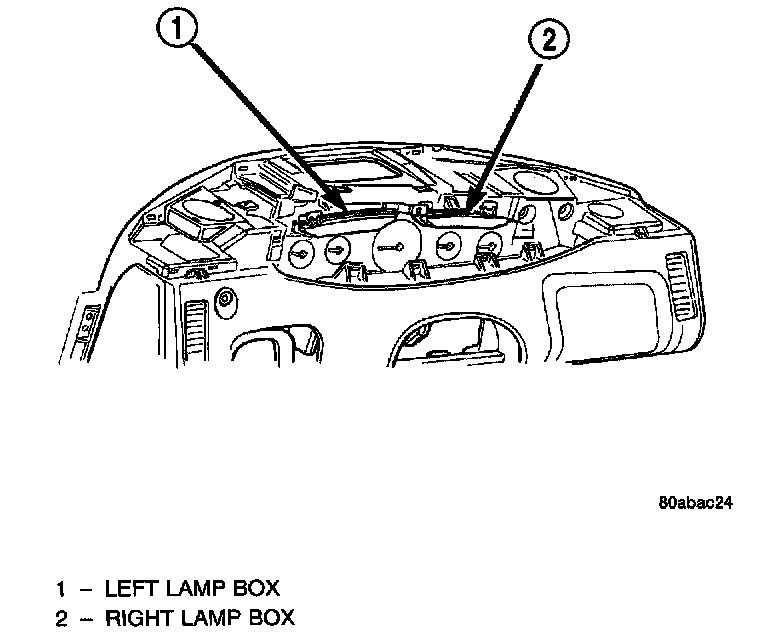

Lamp Boxes:

2. Remove the instrument panel top cover. To service lamps, remove the lamp boxes.

Lamps Located In The Right And Left Lamp Boxes:

3. Refer to and Cluster Lamp Location table for appropriate lamp locations. The indicator lamps use a # 103 lamp, and the illumination lamps use a # 194 lamp.
4. To service the vehicle theft, Passenger Airbag, or Seat belt LED, the mask/lens needs to be removed. The LED's are a socket/lamps unit. Refer to Mask/Lens Removal and Installation.
5. Remove cluster to service illumination lamps. Refer to Instrument Cluster Removal and Installation. The lamps can be remove from the rear of the cluster. To remove the oil gauge illumination lamp, the speedometer PC board will have to be removed. Refer to Oil Gauge PC Board Removal and Installation.
