Instrument Cluster Replacement

REMOVAL
1. Open hood.
2. Disconnect and isolate the negative battery cable.
3. Remove instrument panel top cover. Refer to Instrument Panel Top Cover Removal and Installation.

Instrument Cluster Removal:

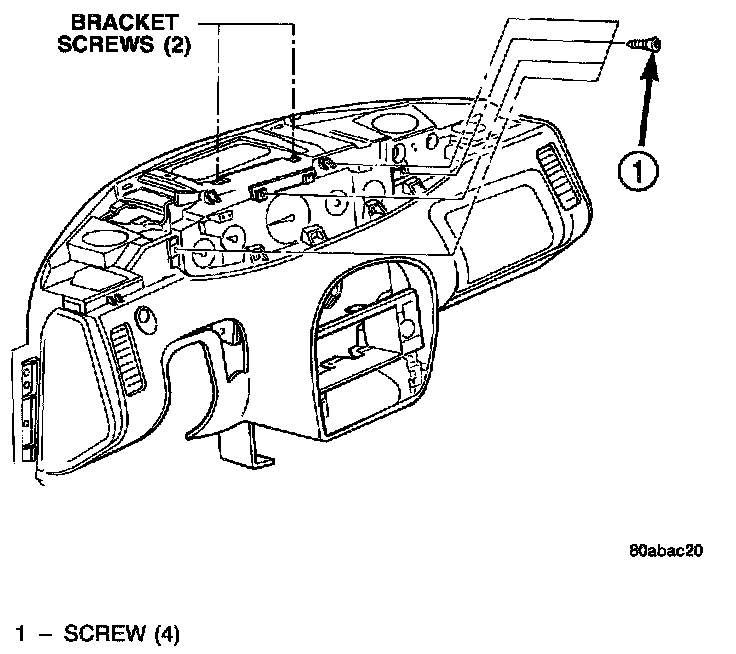

4. Remove the four cluster attaching screws and two mounting bracket screws.
5. Remove instrument cluster and disconnect the two wire connectors from instrument panel by pulling cluster rearward.

INSTALLATION
For installation, reverse the above procedures.
