Headlamp: Testing and Inspection

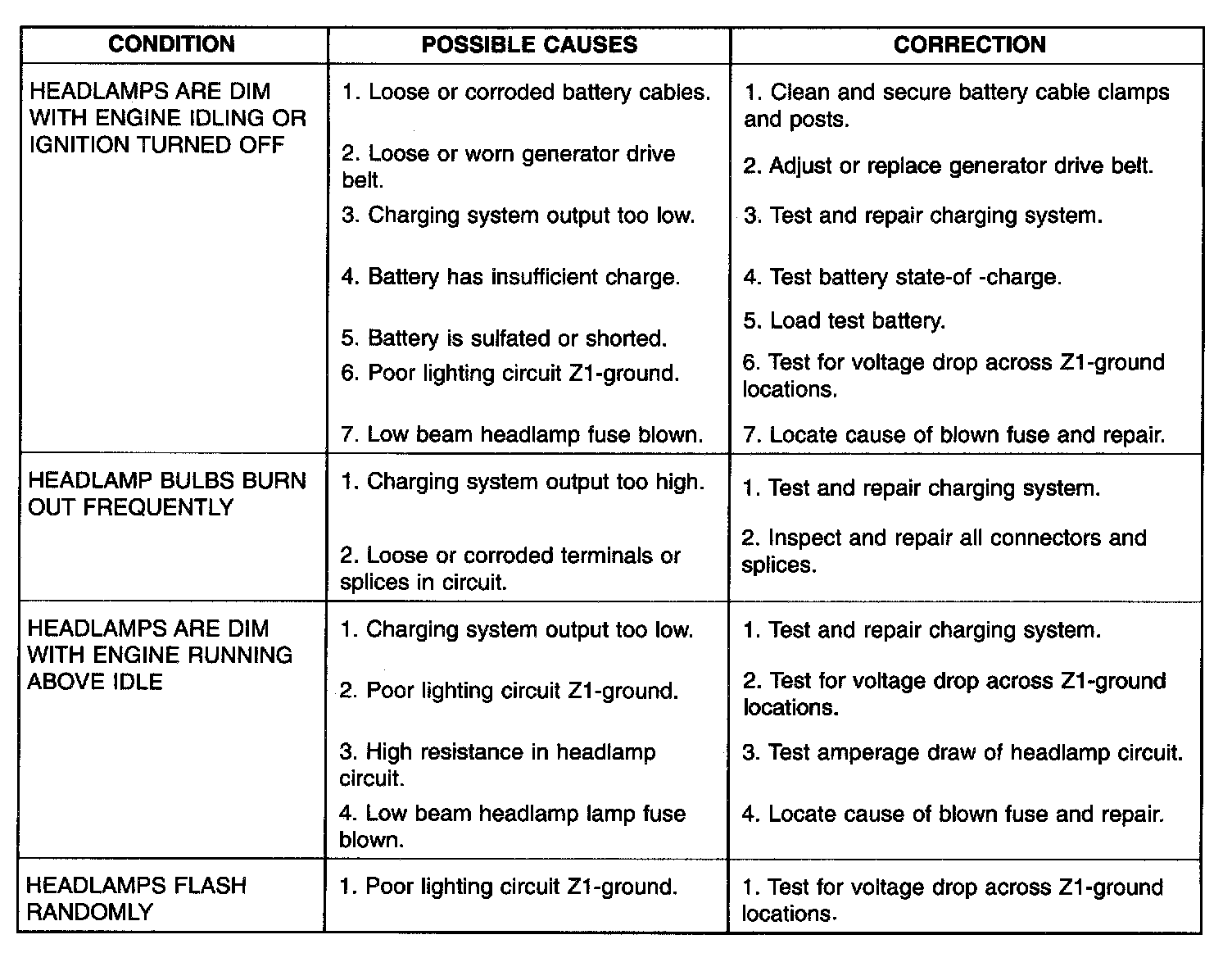

HeadLamp Diagnosis (Part 1 Of 2):




HeadLamp Diagnosis (Part 2 Of 2):




DIAGNOSTIC PROCEDURES
When a vehicle experiences problems with the headlamp system, verify the condition of the battery connections, charging system, headlamp bulbs, wire connectors, relay, high beam dimmer switch and headlamp switch. Refer to Wiring Diagrams, for component locations and circuit information
