Home
>>
Plymouth
>>
2001
>>
Prowler V6-3.5L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Fuse
Fuse
Front Of Fuse Block:

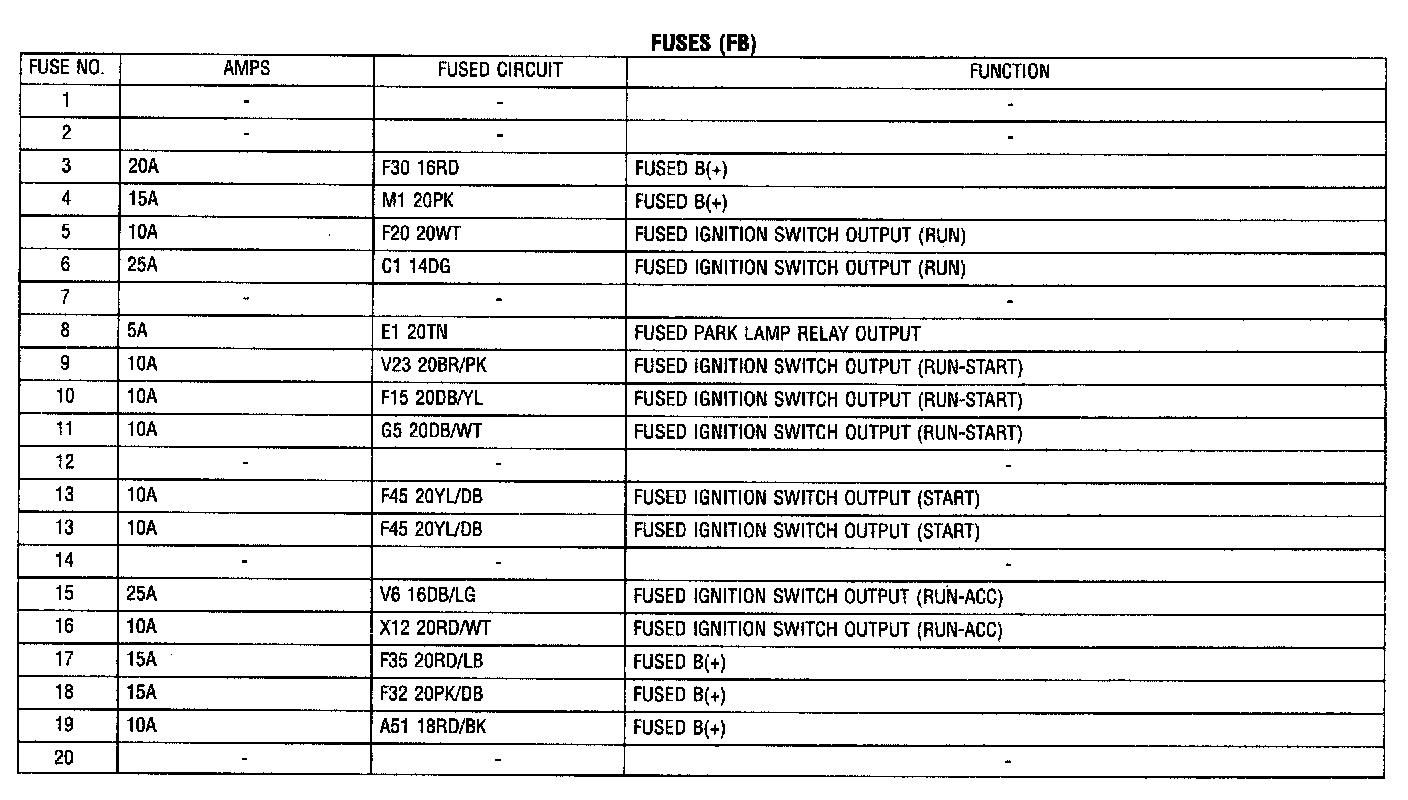

Fuses (FB):

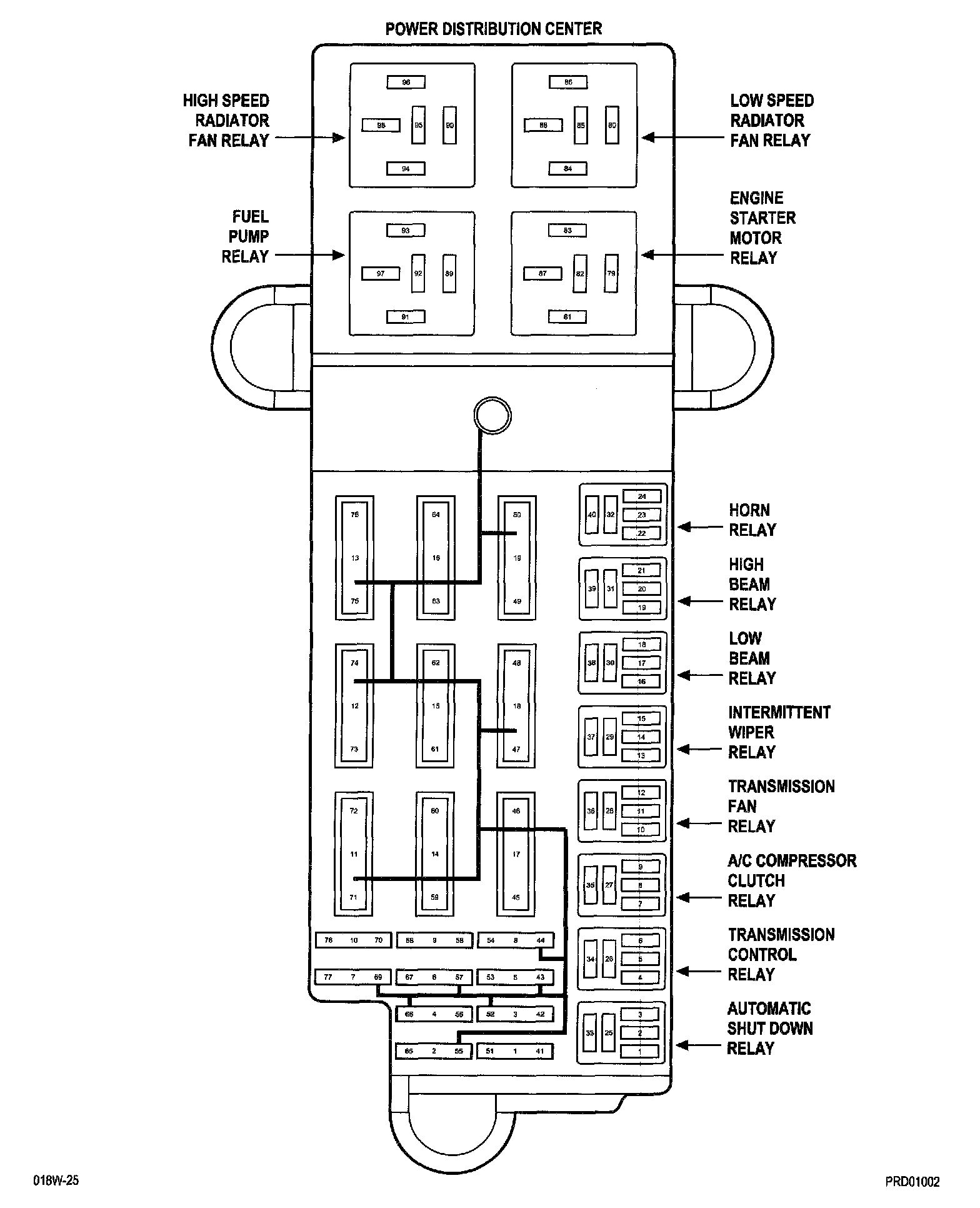

Power Distribution Center:

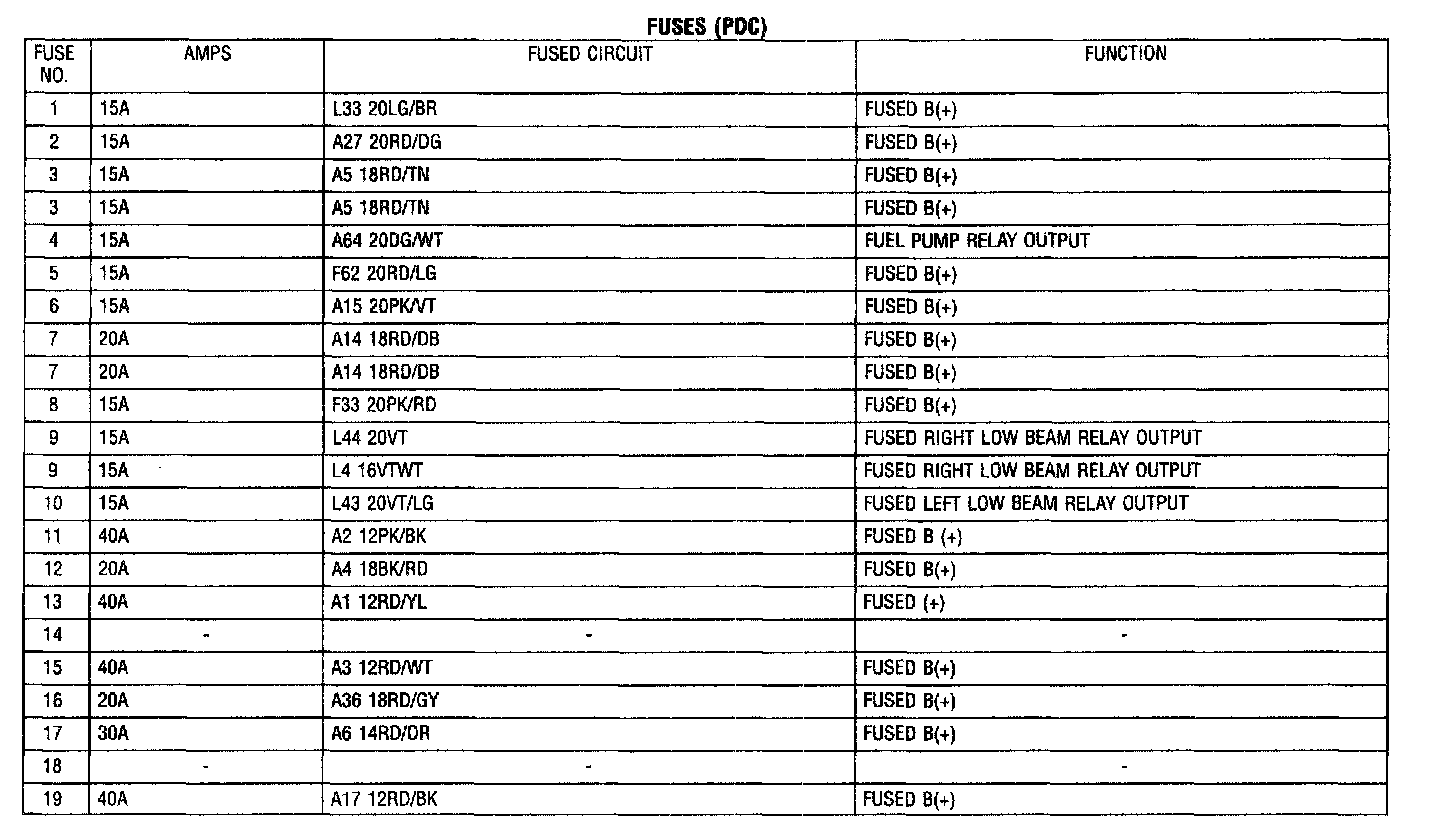

Fuses (PDC):
