Home >> Plymouth >> 2001 >> Prowler V6-3.5L VIN G >> Repair and Diagnosis >> Diagrams >> Connectors >> Figure 15

Figure 15

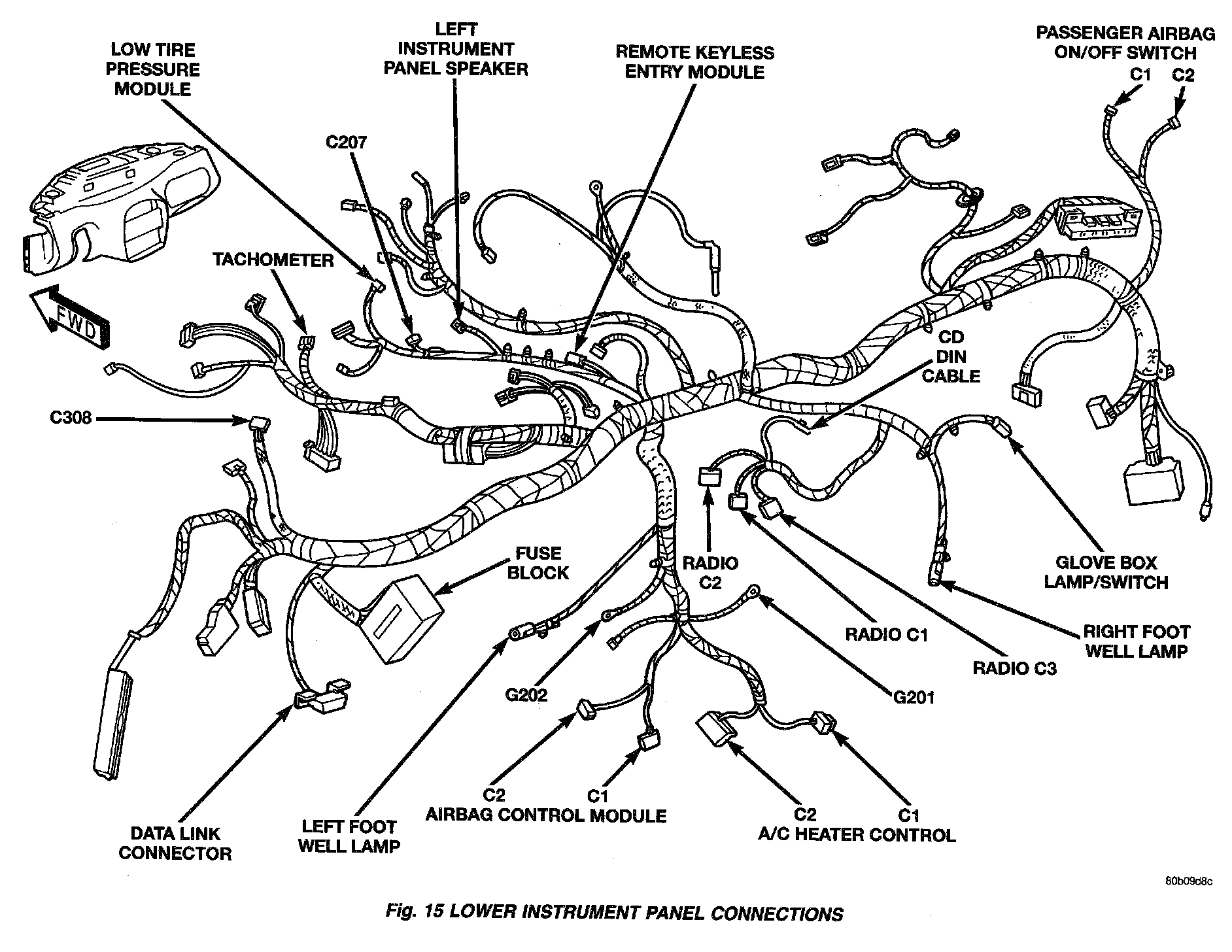

Fig. 15 Lower Instrument Panel Connections:
