Heating and Air Conditioning: Application and ID

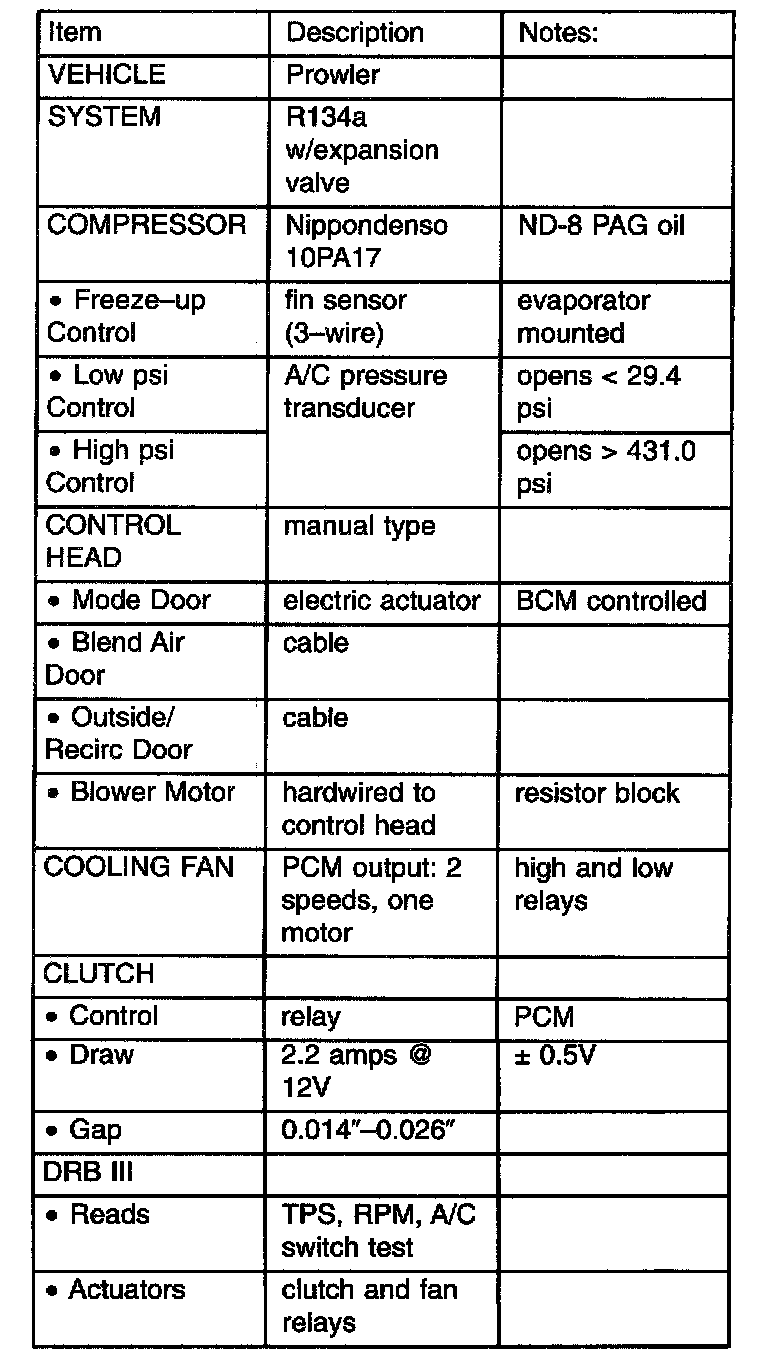

A/C Application Table:

NOTE: Prowler uses a Body Control Module (BCM) to control the mode door operation. The BCM also monitors the evaporator 3-wire fin sensor and sends the A/C clutch request signal over the CCD to the PCM.
