Turn Signal Lamp: Diagrams

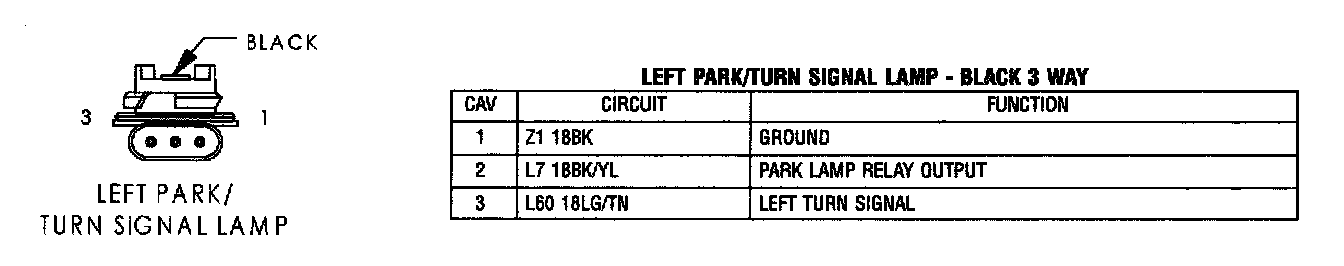

Left Park/Turn Signal Lamp:

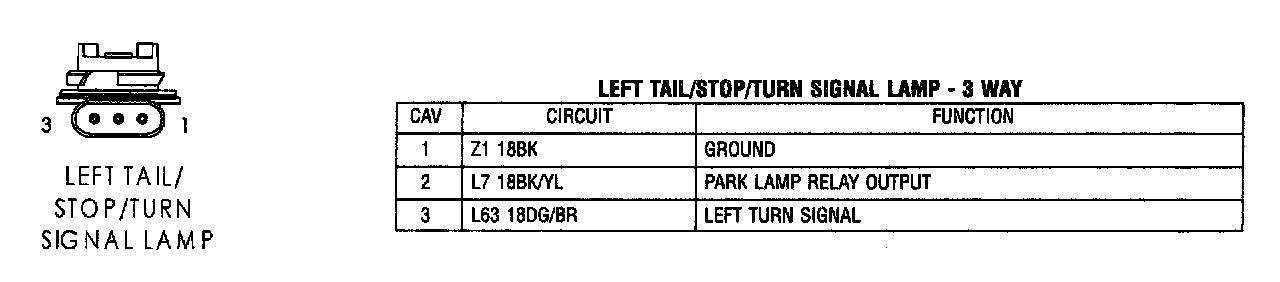

Left Tail/Stop/Turn Signal Lamp:

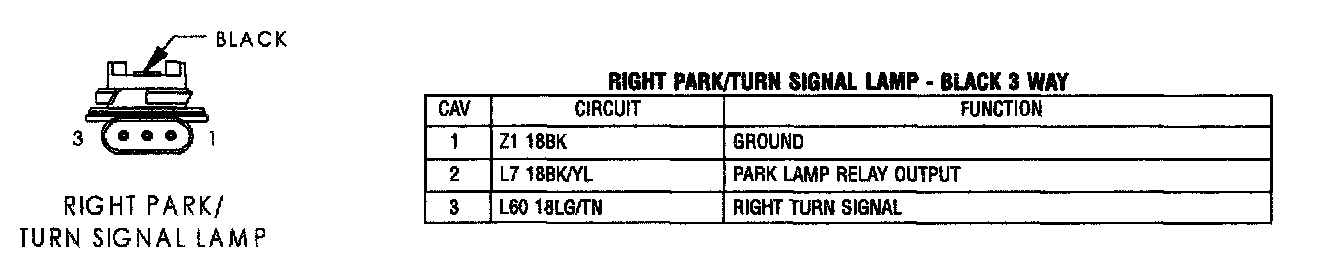

Right Park/Turn Signal Lamp:

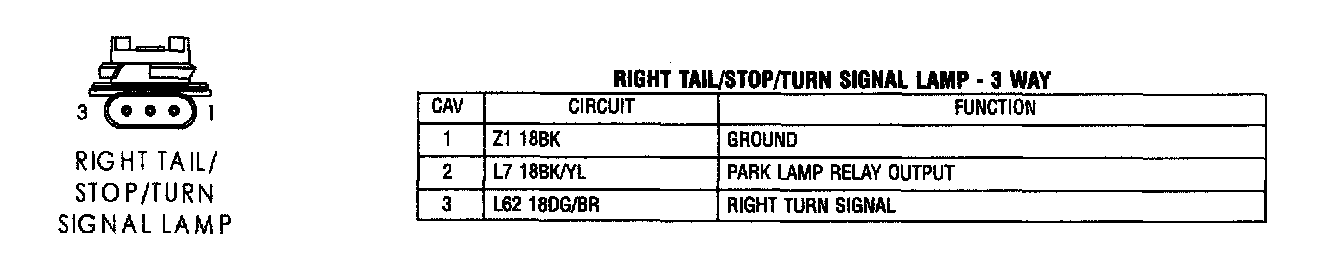

Right Tail/Stop/Turn Signal Lamp:
