Automatic Transmission/Transaxle: Diagrams

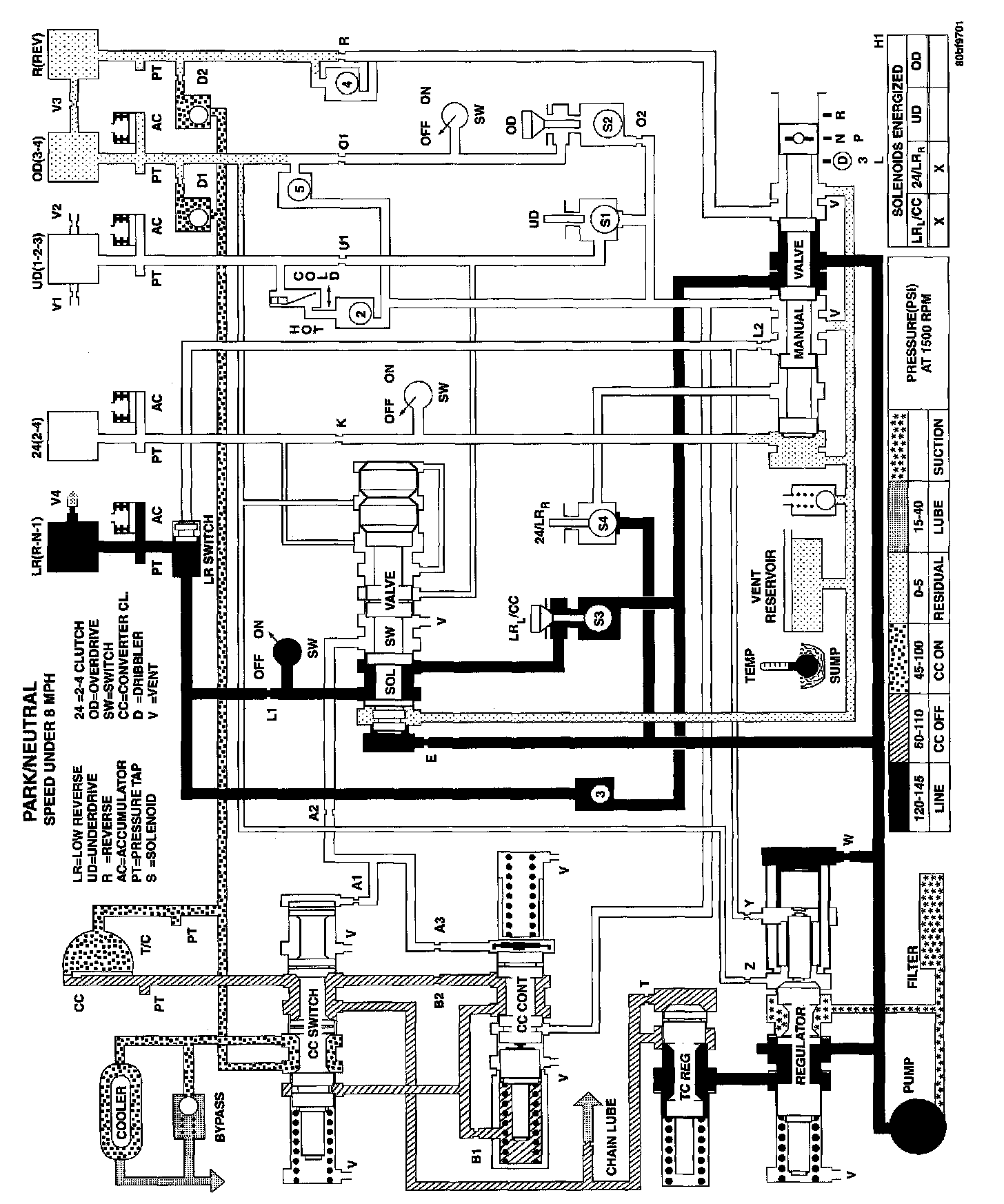

PARK/NEUTRAL (SPEED UNDER 8 MPH)

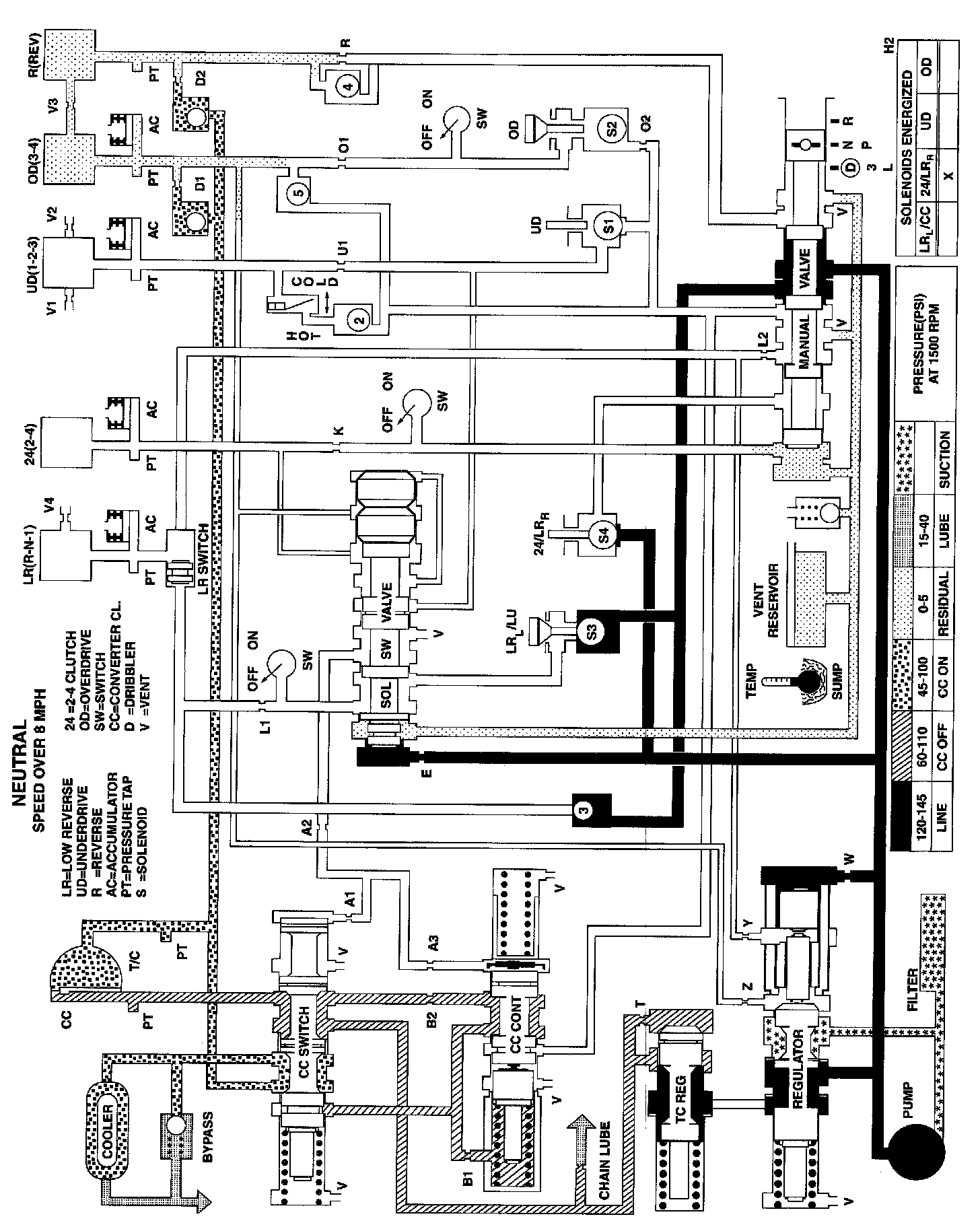

NEUTRAL (SPEED OVER 8 MPH)

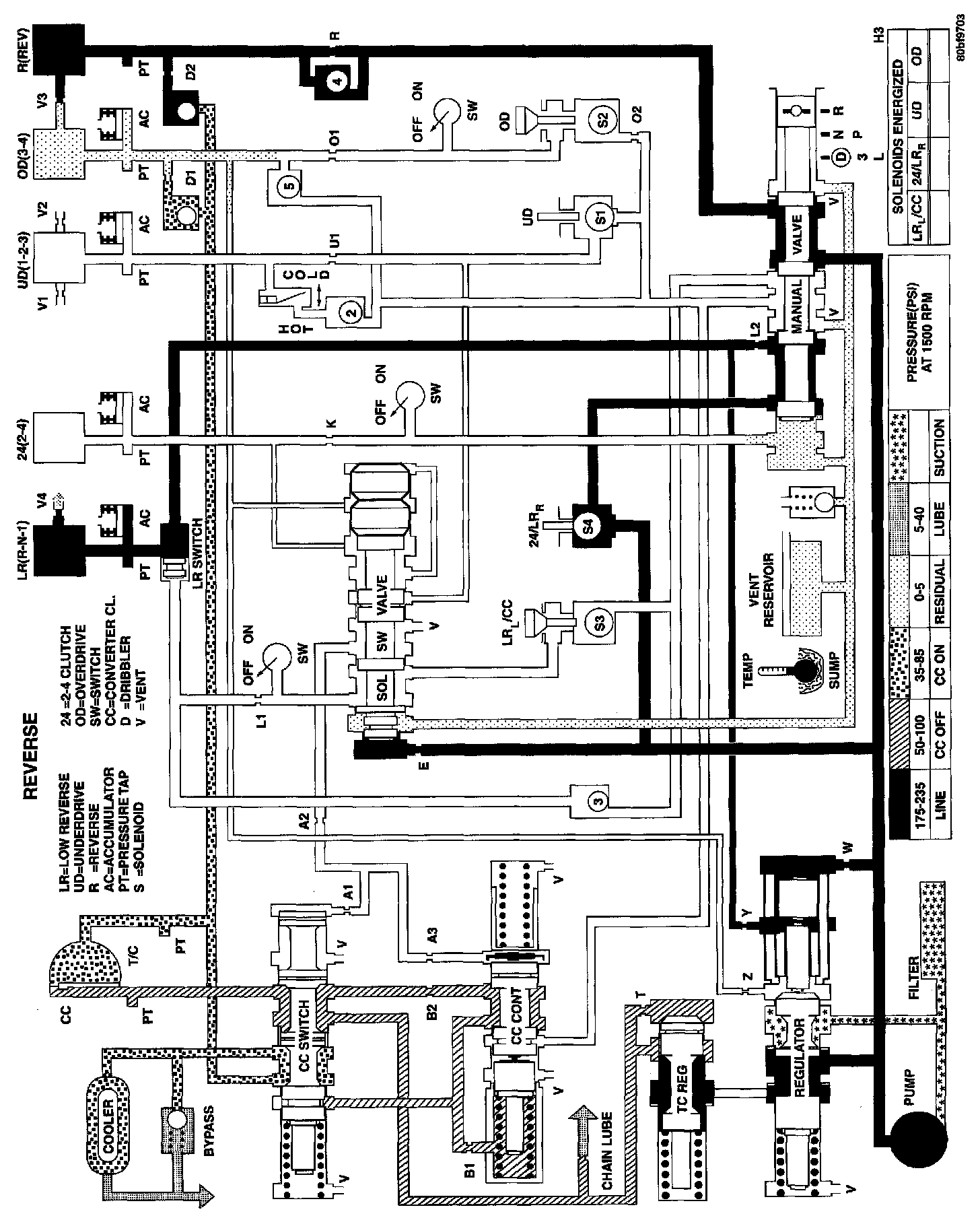

REVERSE

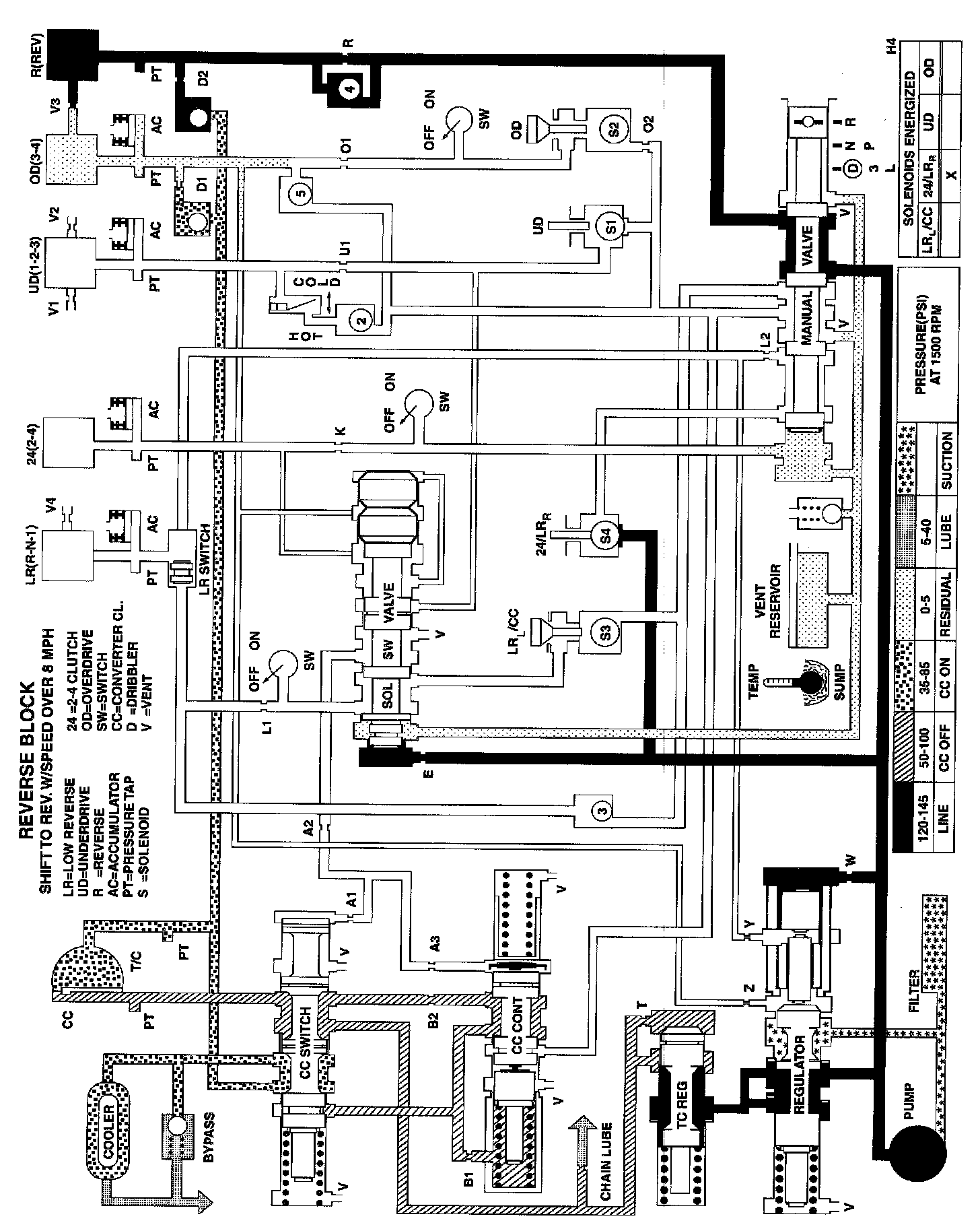

REVERSE BLOCK (SHIFT TO REVERSE W/SPEED OVER 8 MPH)

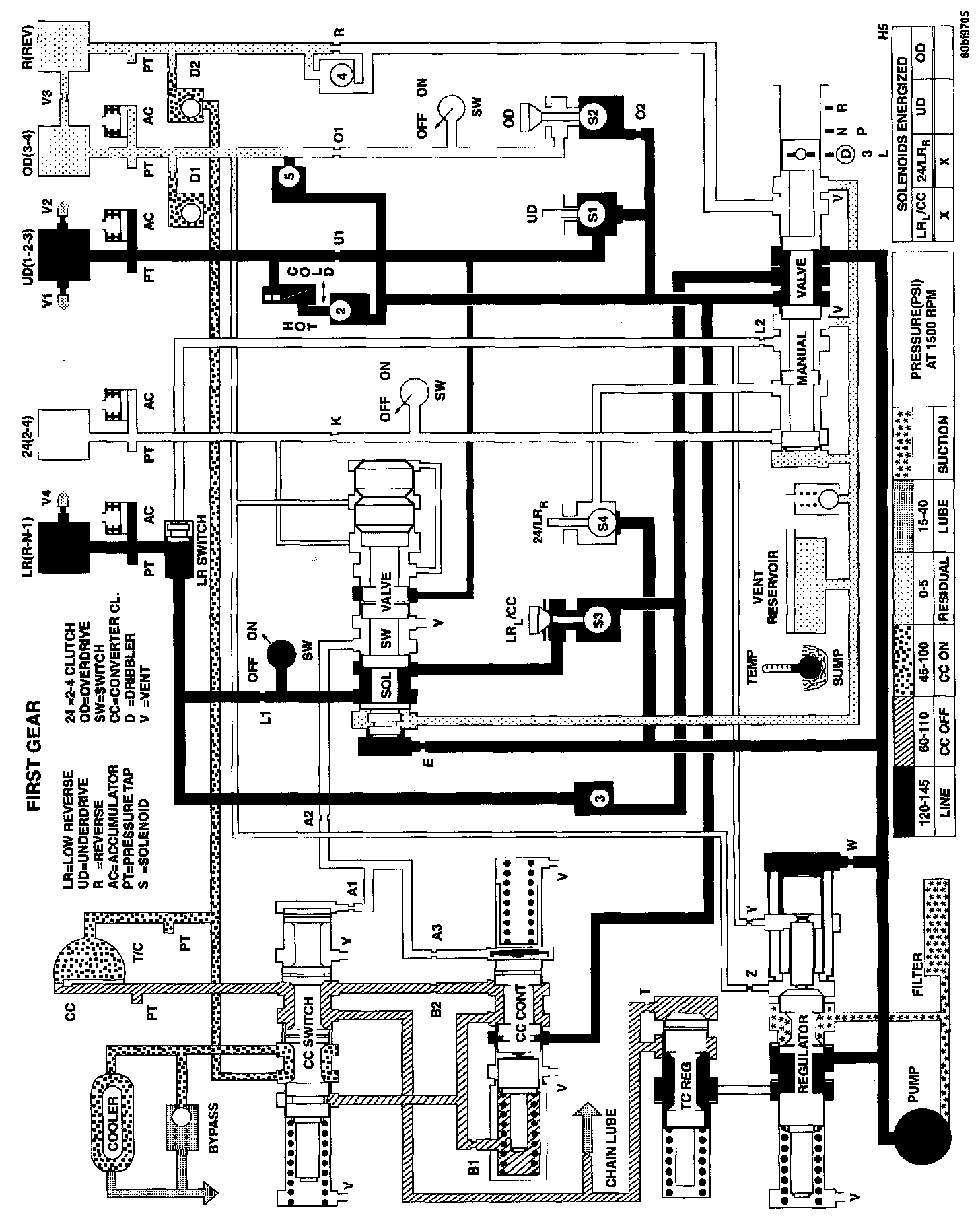

FIRST GEAR

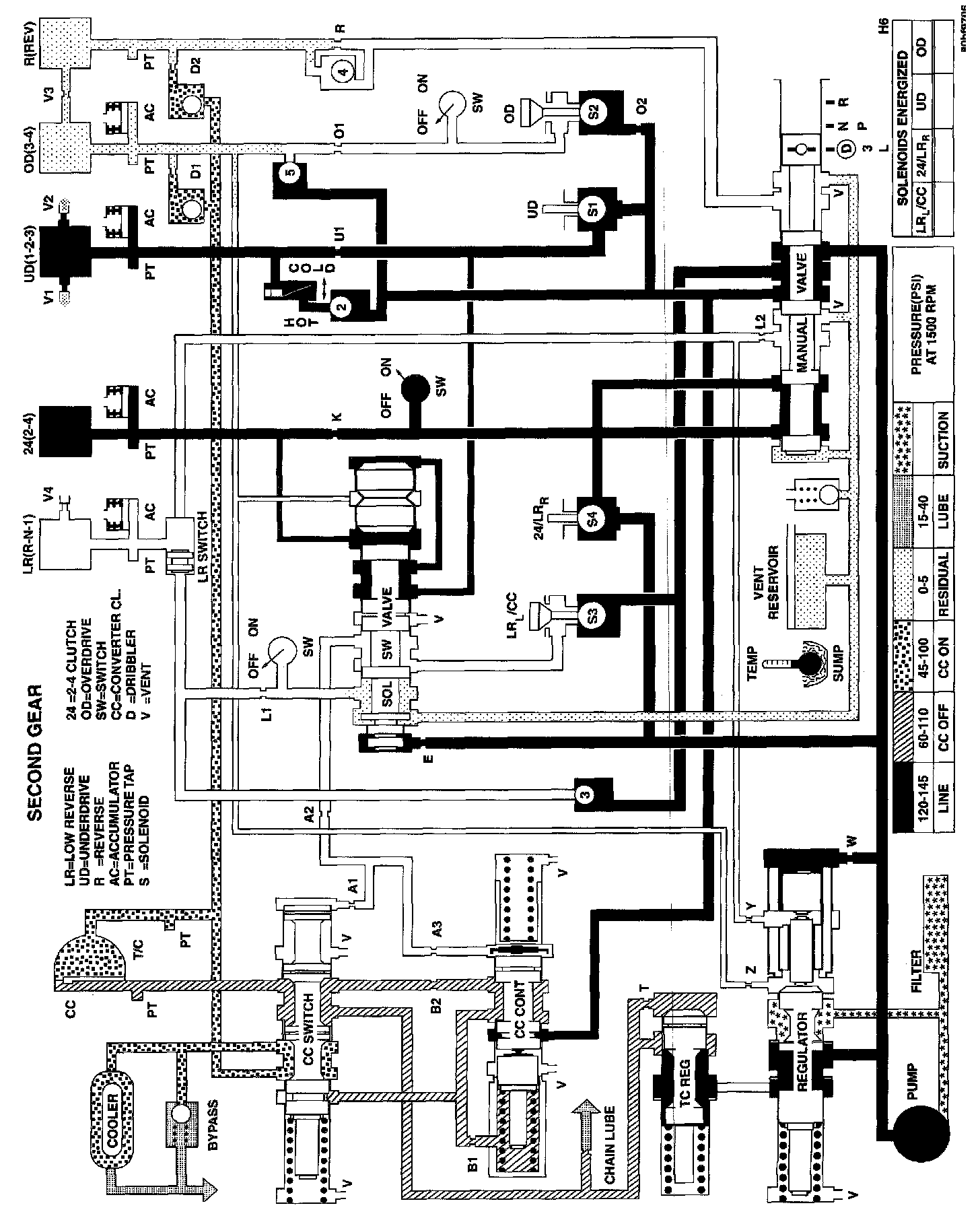

SECOND GEAR

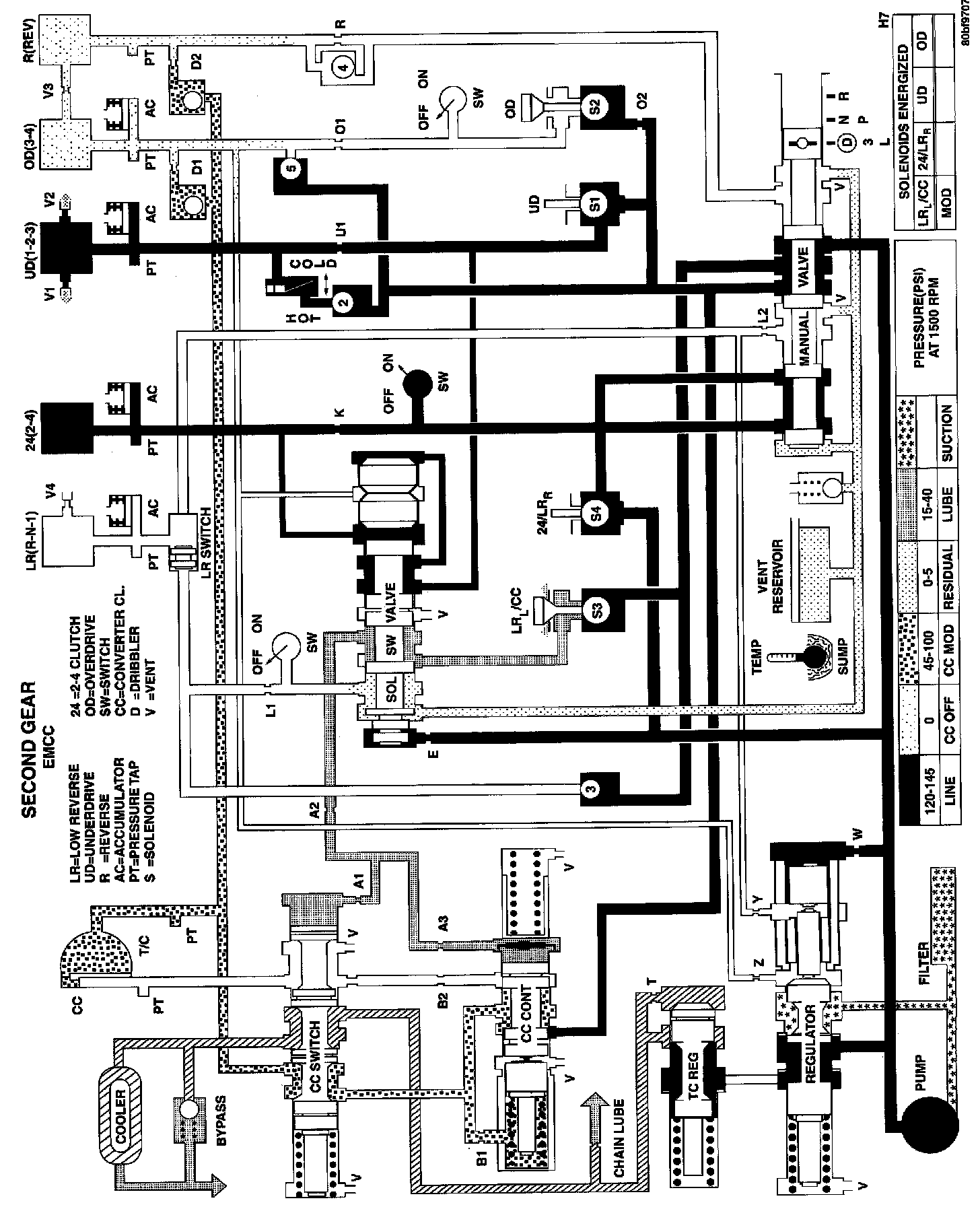

SECOND GEAR (EMCC)

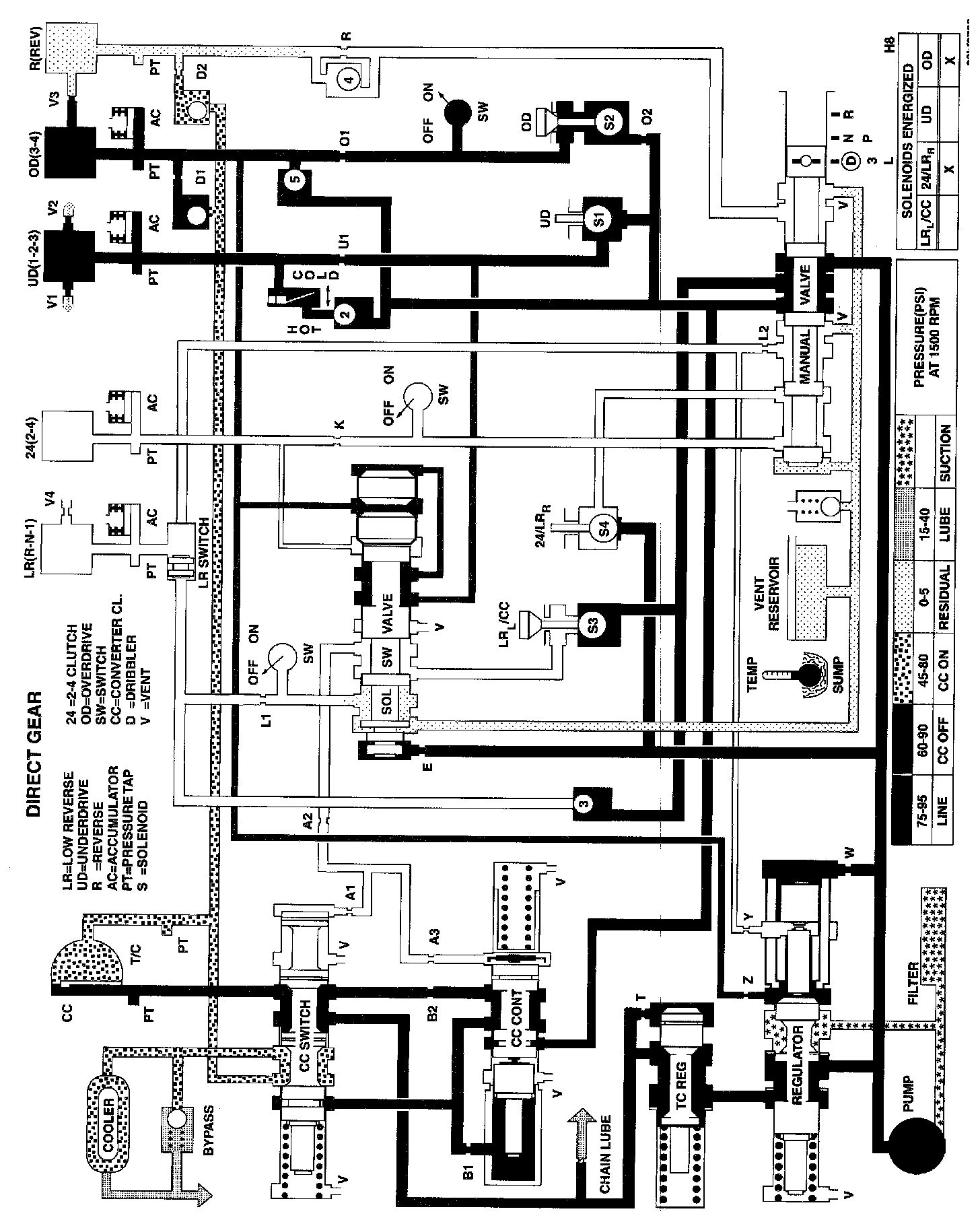

DIRECT GEAR

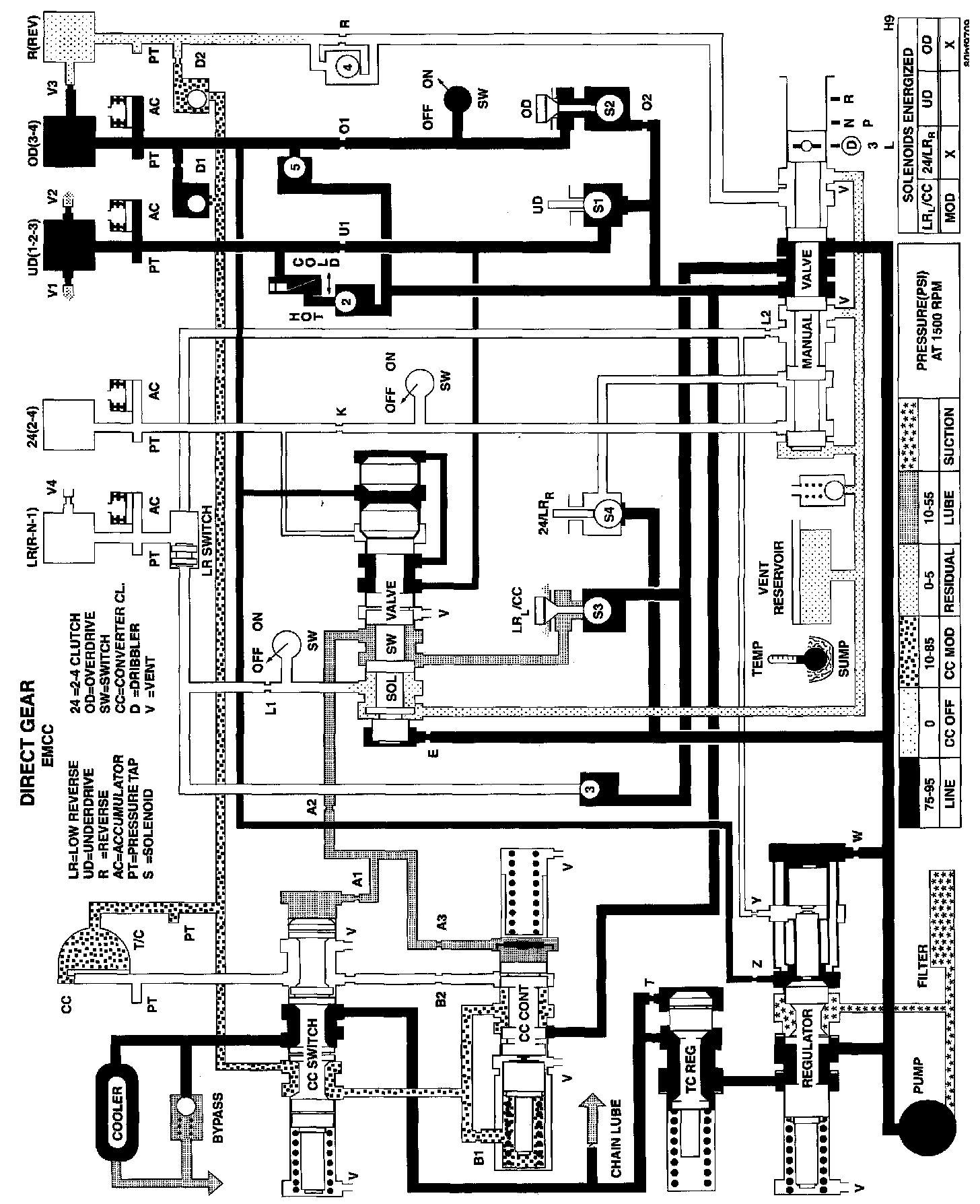

DIRECT GEAR (EMCC)

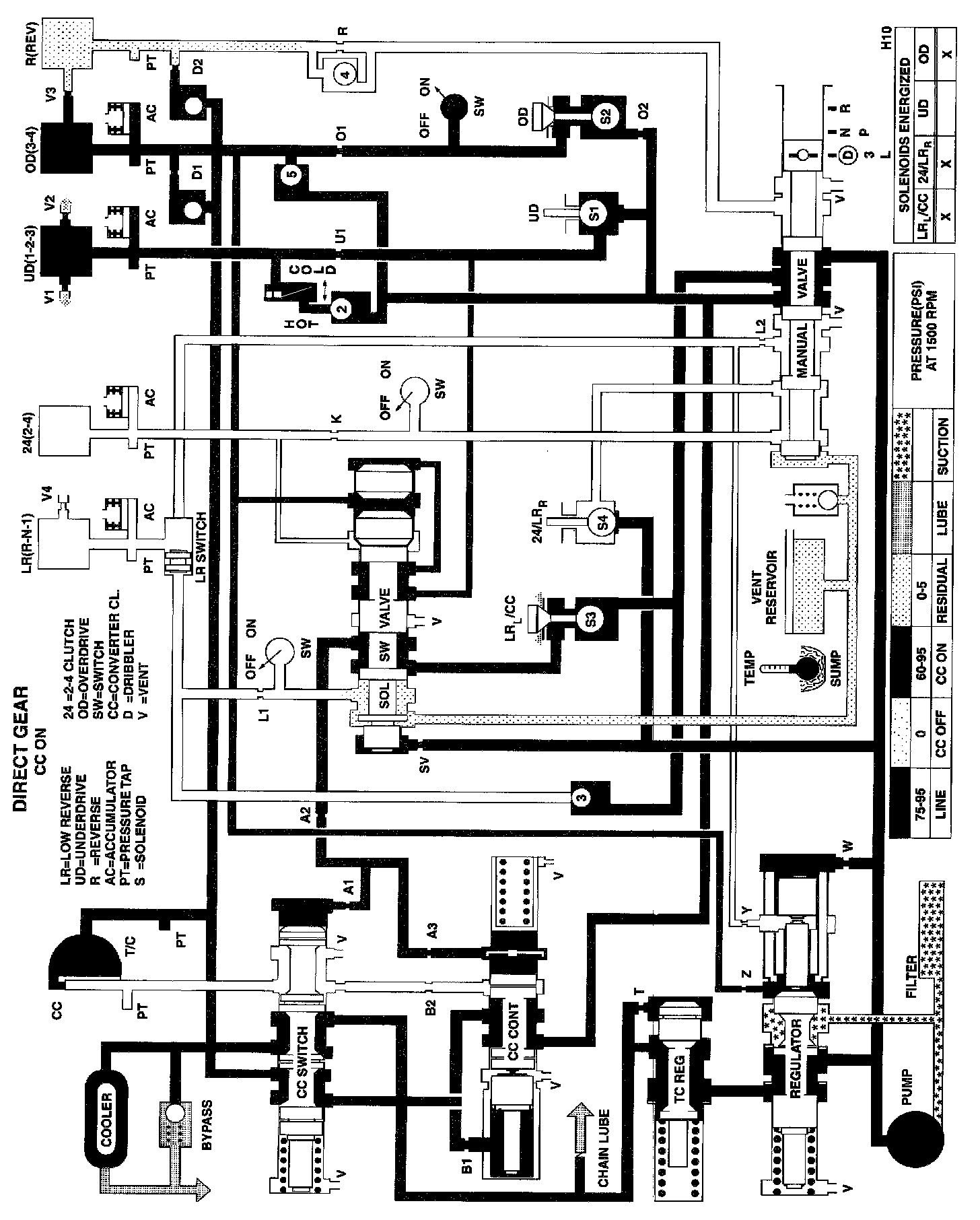

DIRECT GEAR (CC ON)

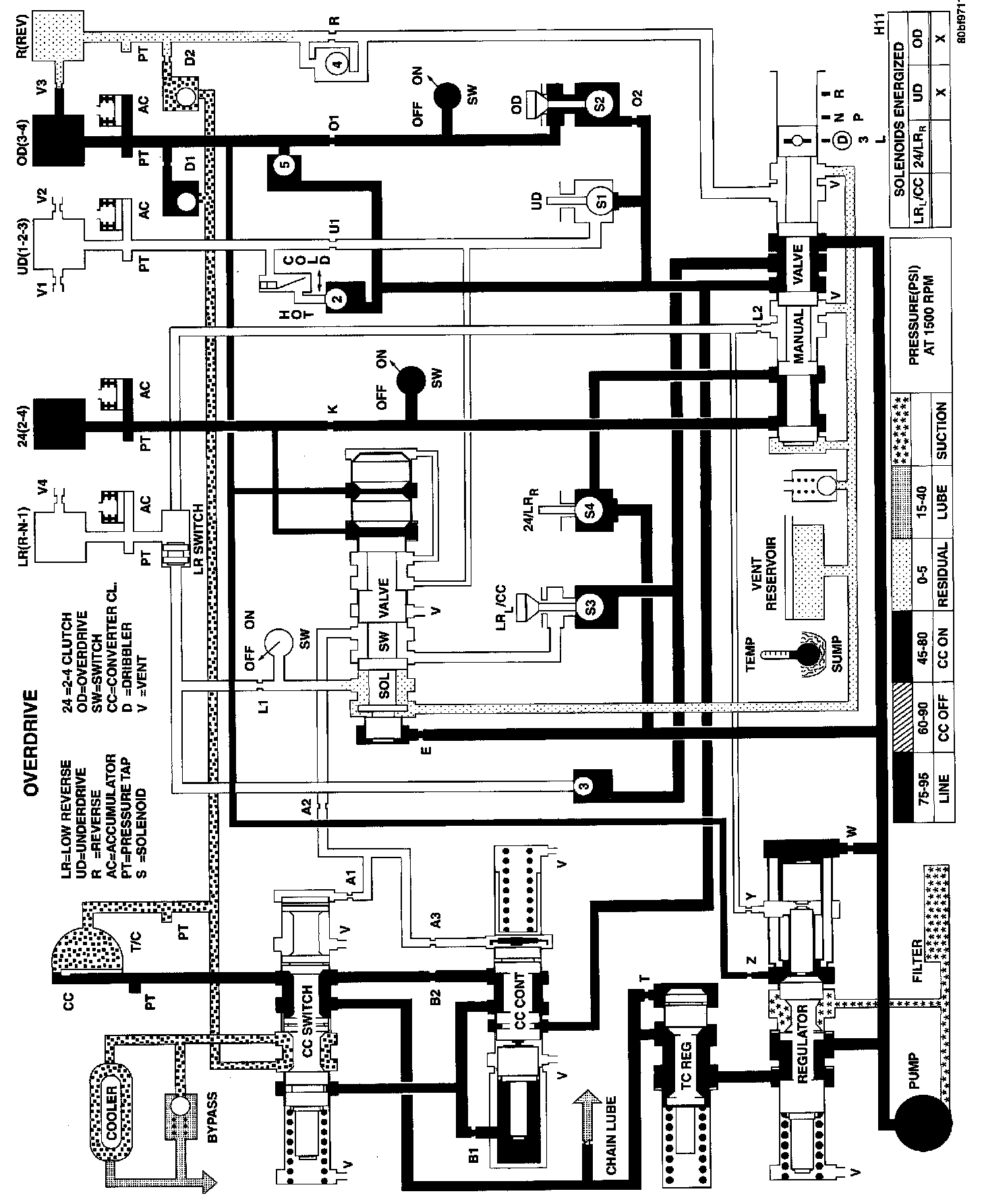

OVERDRIVE

OVERDRIVE (EMCC)

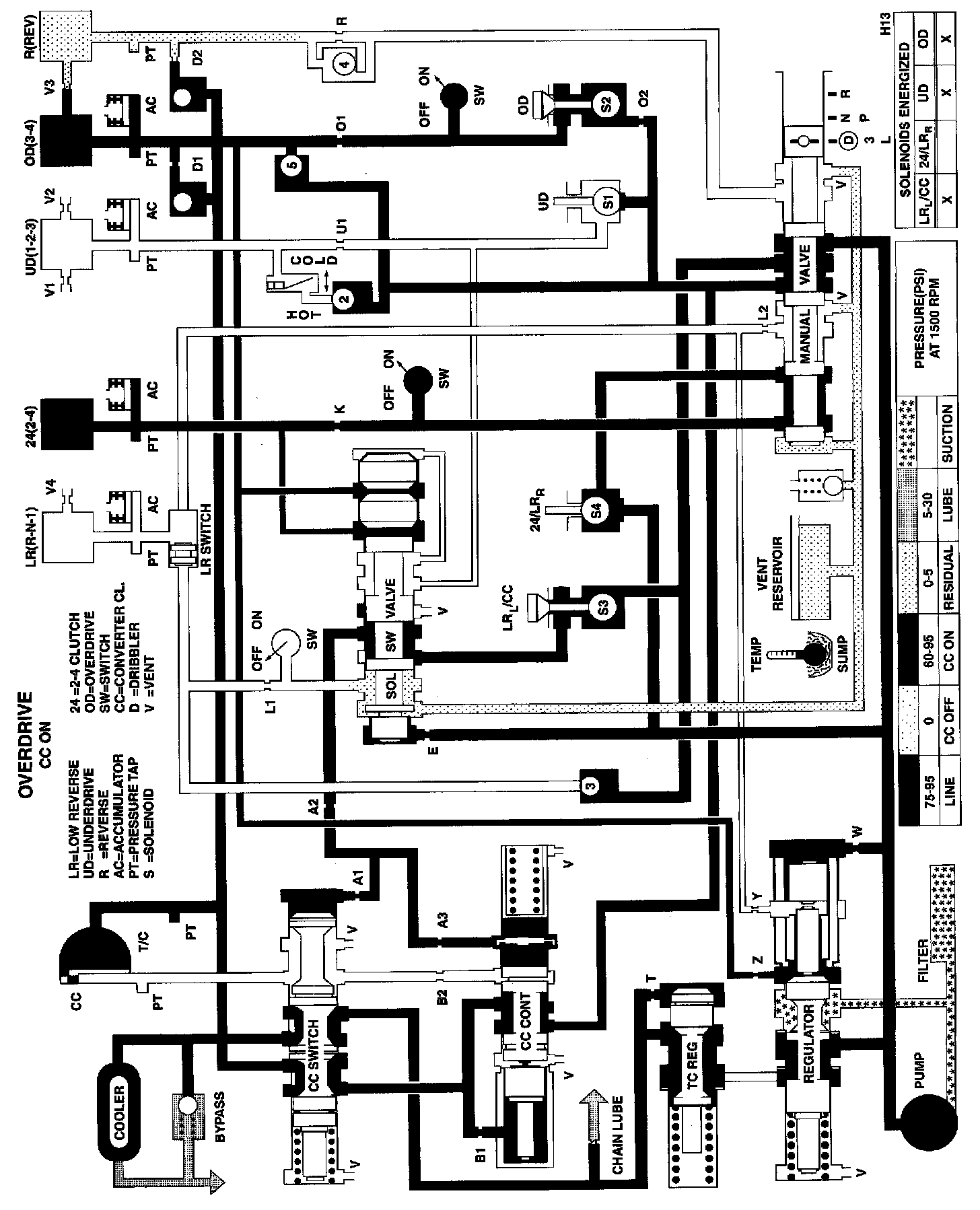

OVERDRIVE (CC ON)
