Pontiac
>>
1982
>>
Firebird V6-173 2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

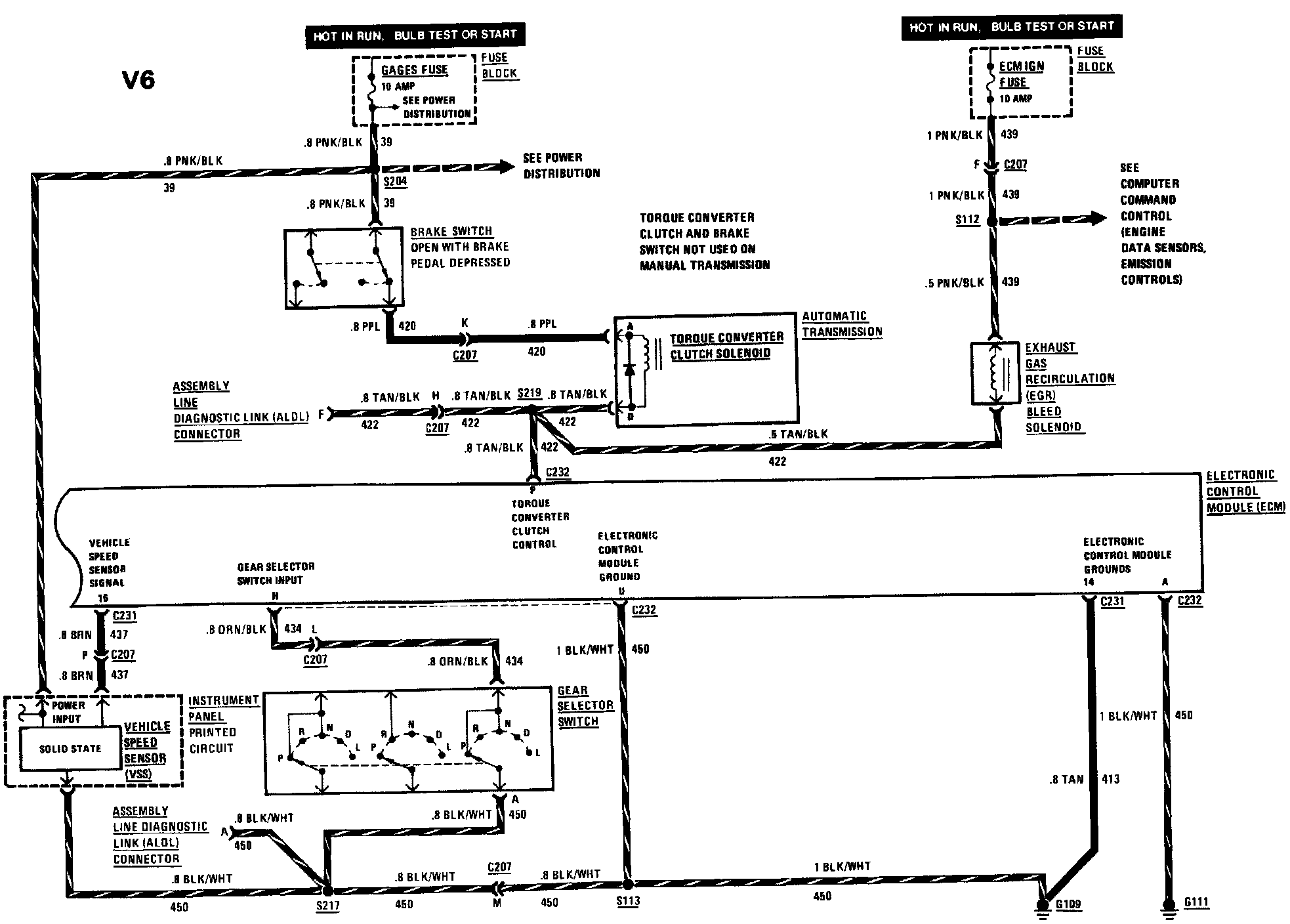

Emission Controls, Vehicle Sensors & Torque Converter Clutch
Emission Controls, Vehicle Sensors & Torque Converter Clutch
