Home >> Pontiac >> 1982 >> J2000 L4-112 1.8L VIN 0 TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Ground Distribution >> Rear Light Grounds >> Hatchback

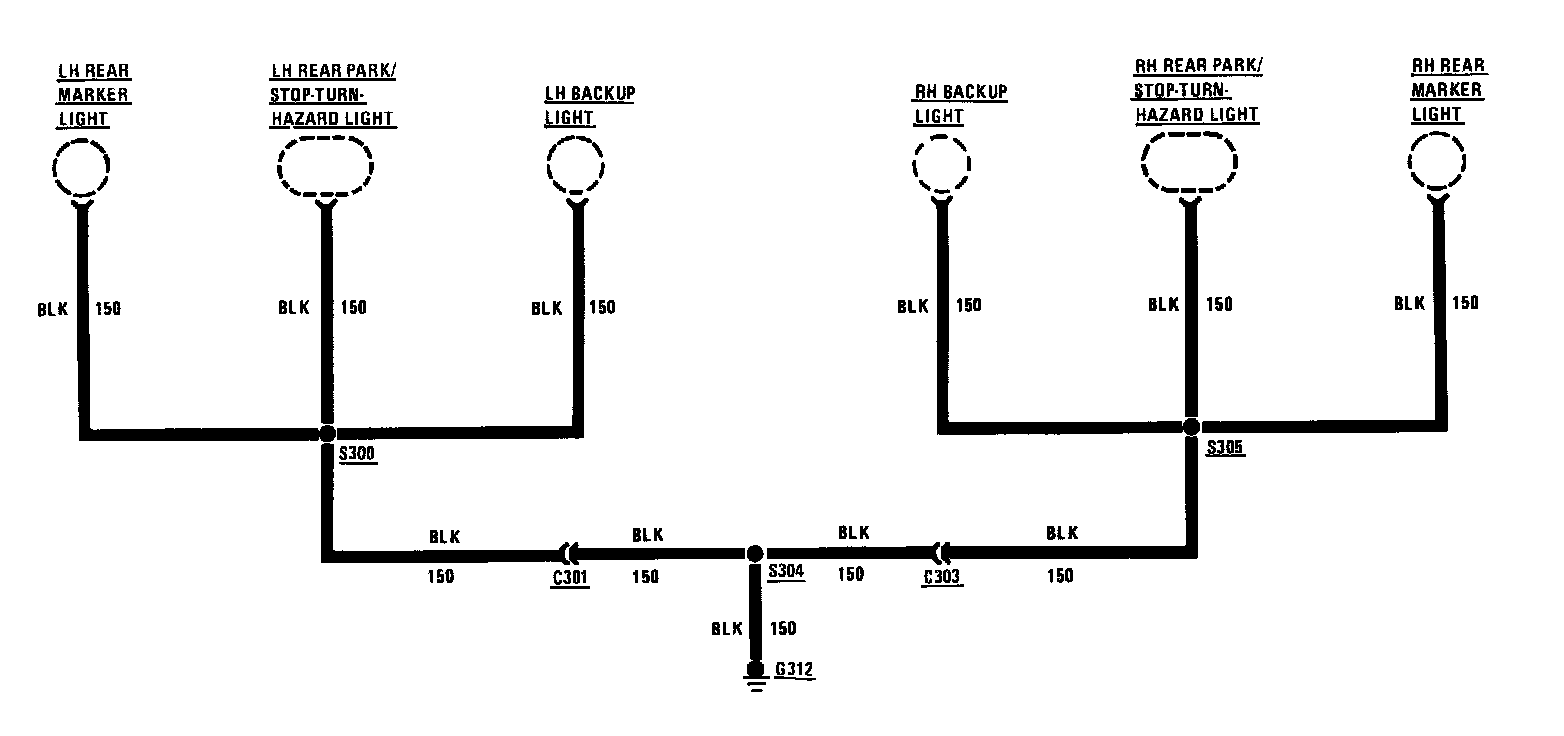

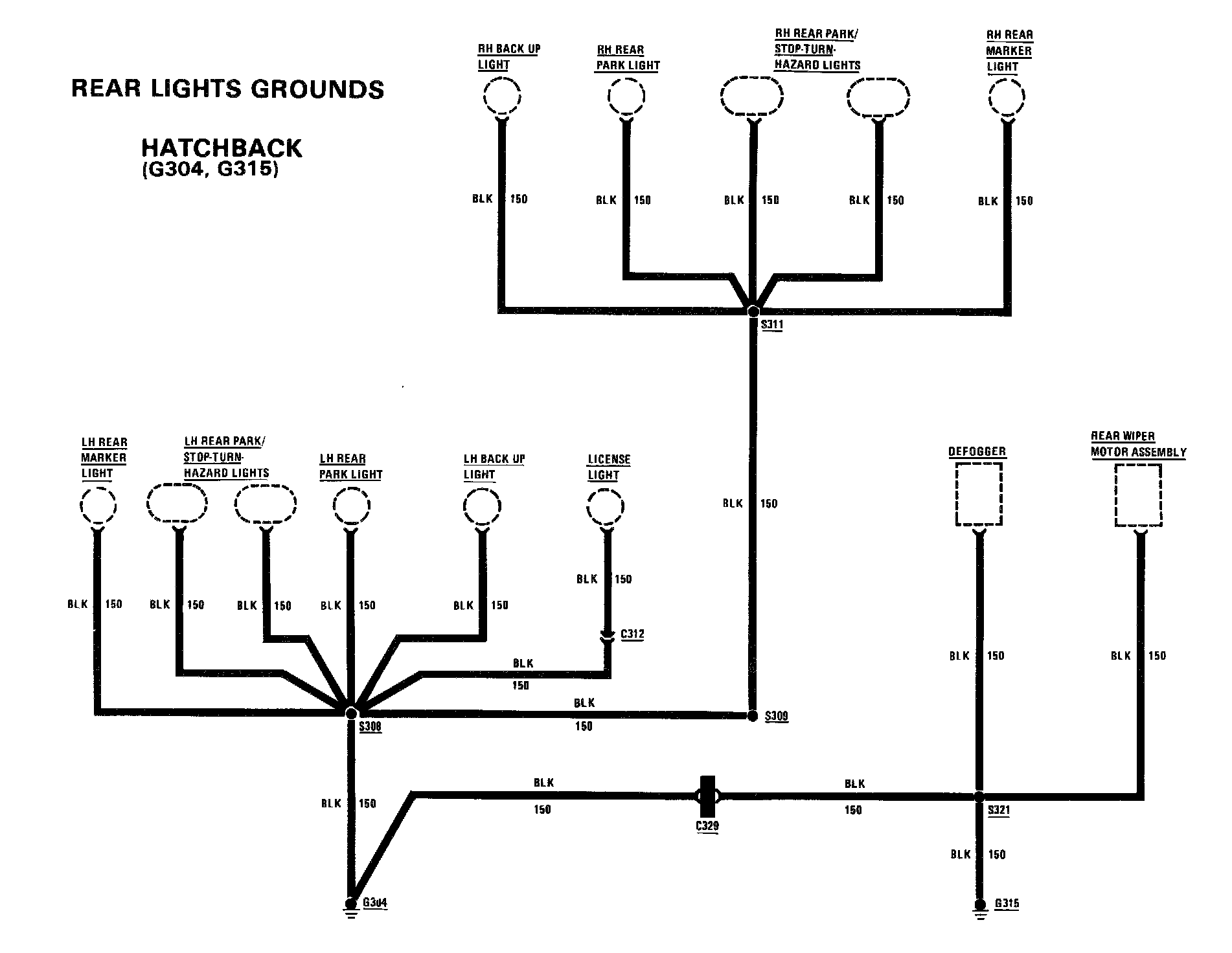

Hatchback
