Home >> Pontiac >> 1982 >> J2000 L4-112 1.8L VIN 0 TBI >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams

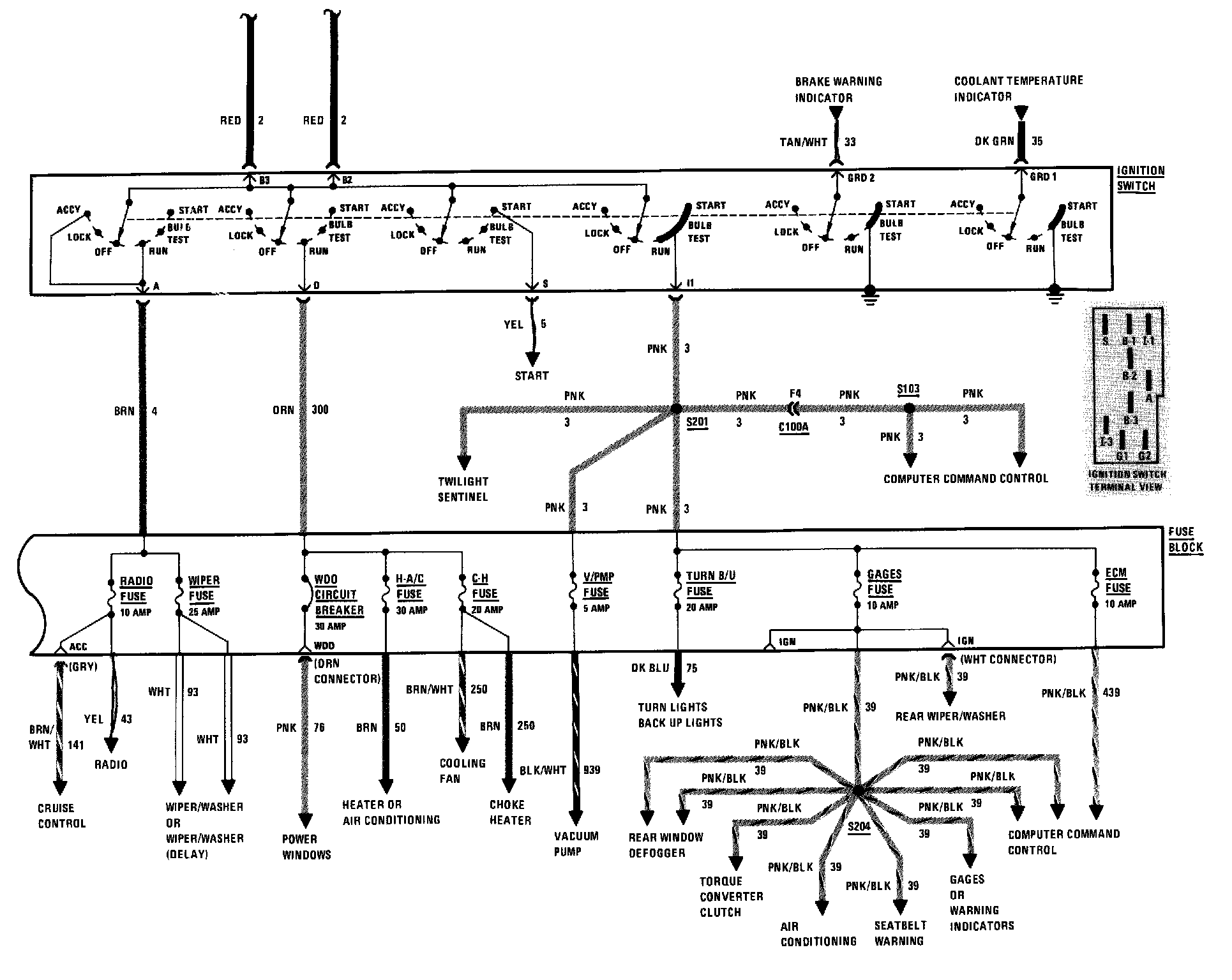

Power Distribution Diagrams
