Suspension Control ( Automatic - Electronic )

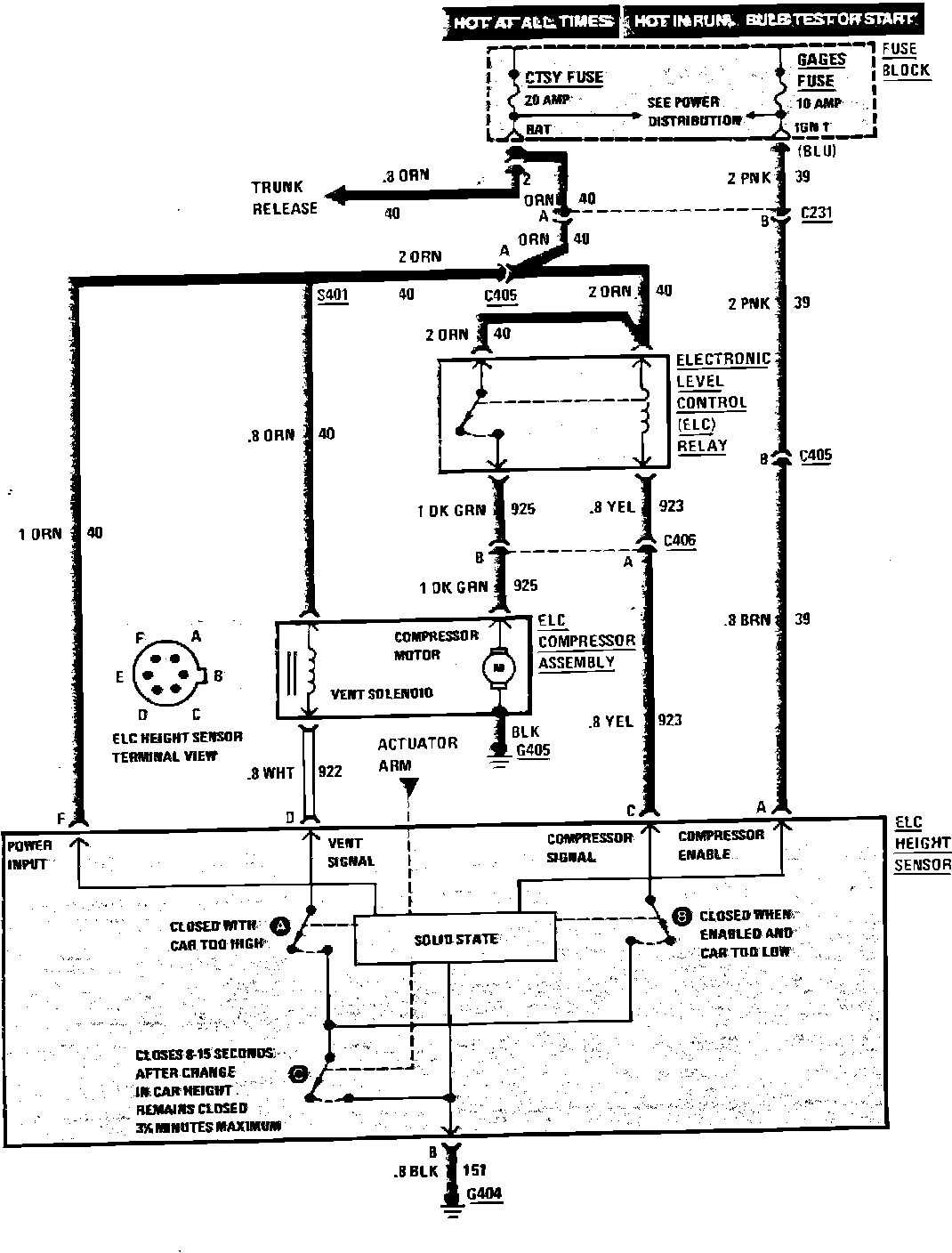

Electronic Level Control Wiring Circuit 6000 & 6000LE:
