Home
>>
Pontiac
>>
1983
>>
6000 V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Control & Glow Plugs
Fuel Control & Glow Plugs

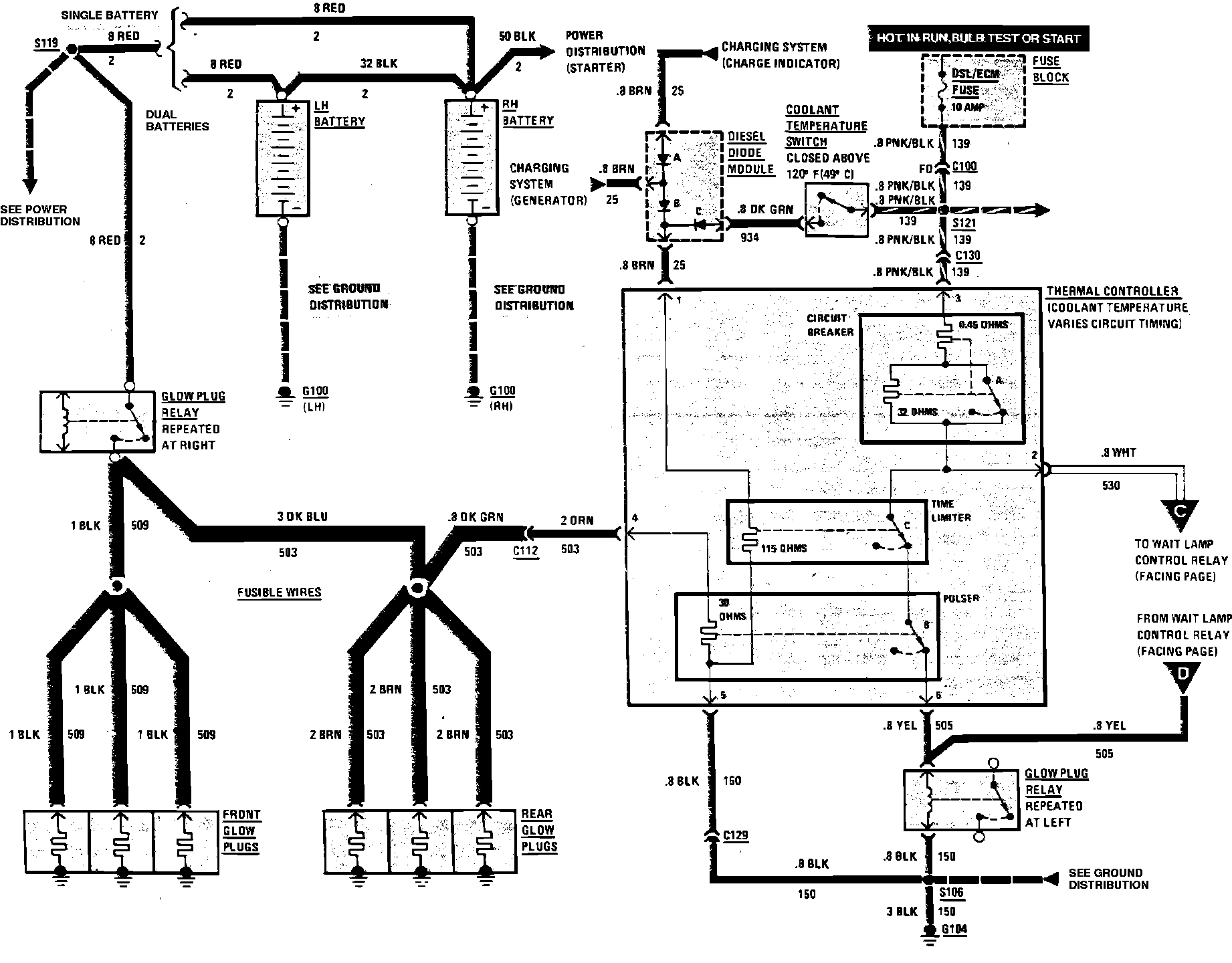

Diesel Engine Fuel Control & Glow Plug Wiring Circuit 6000 & 6000LE:
Diesel Engine Fuel Control & Glow Plug Wiring Circuit 6000 & 6000LE:
