Cruise Control
Cruise Control

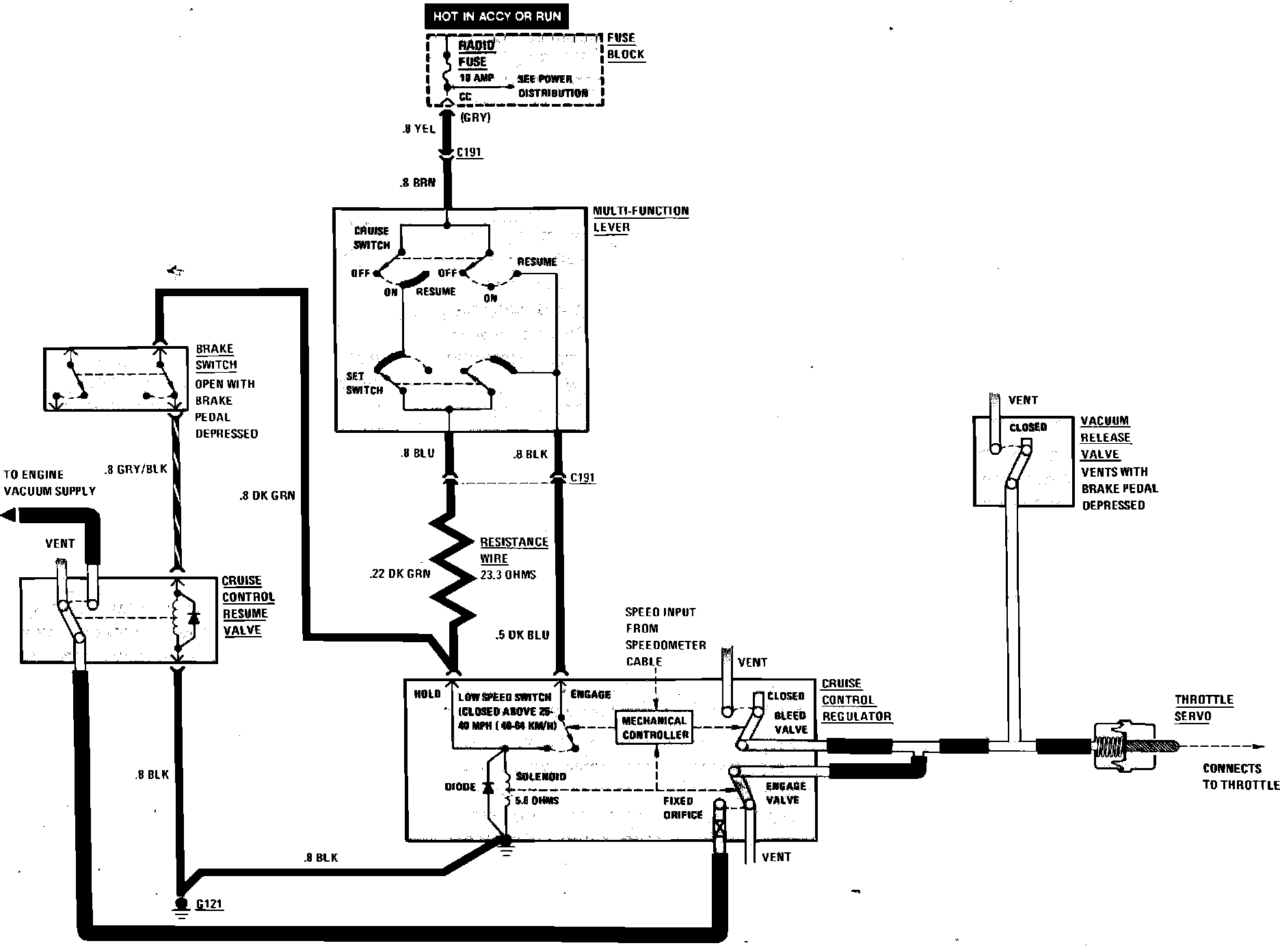

Cruise Control Vacuum Circuit (W/V6 & V8 Gasoline Engine):
Cruise Control Wiring Circuit:
