System Diagram

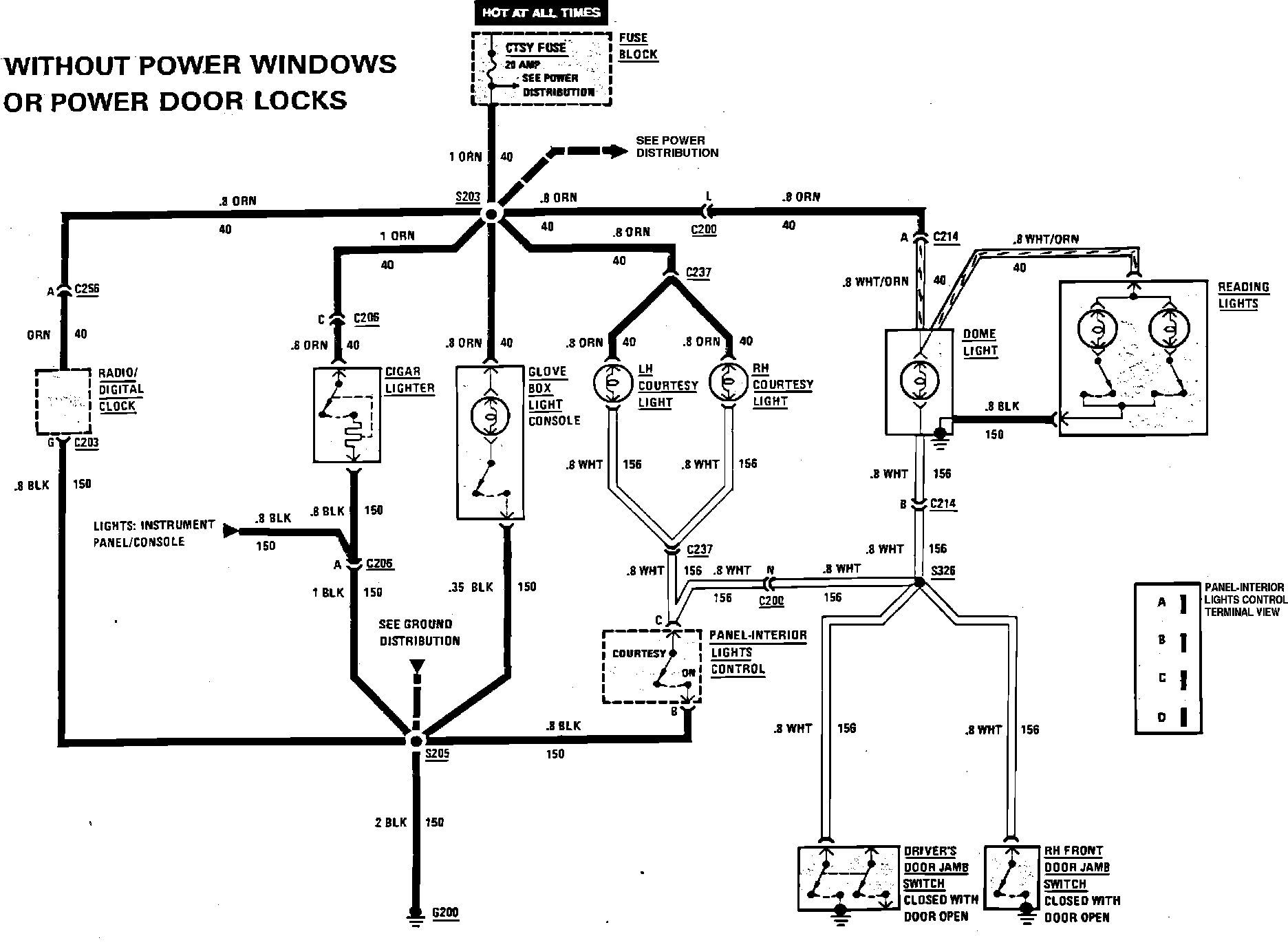

Cigar Lighter, Clock & Interior Lighting Wiring Circuit. Less Power Windows and/or Power Door Locks:
