Turn Signals

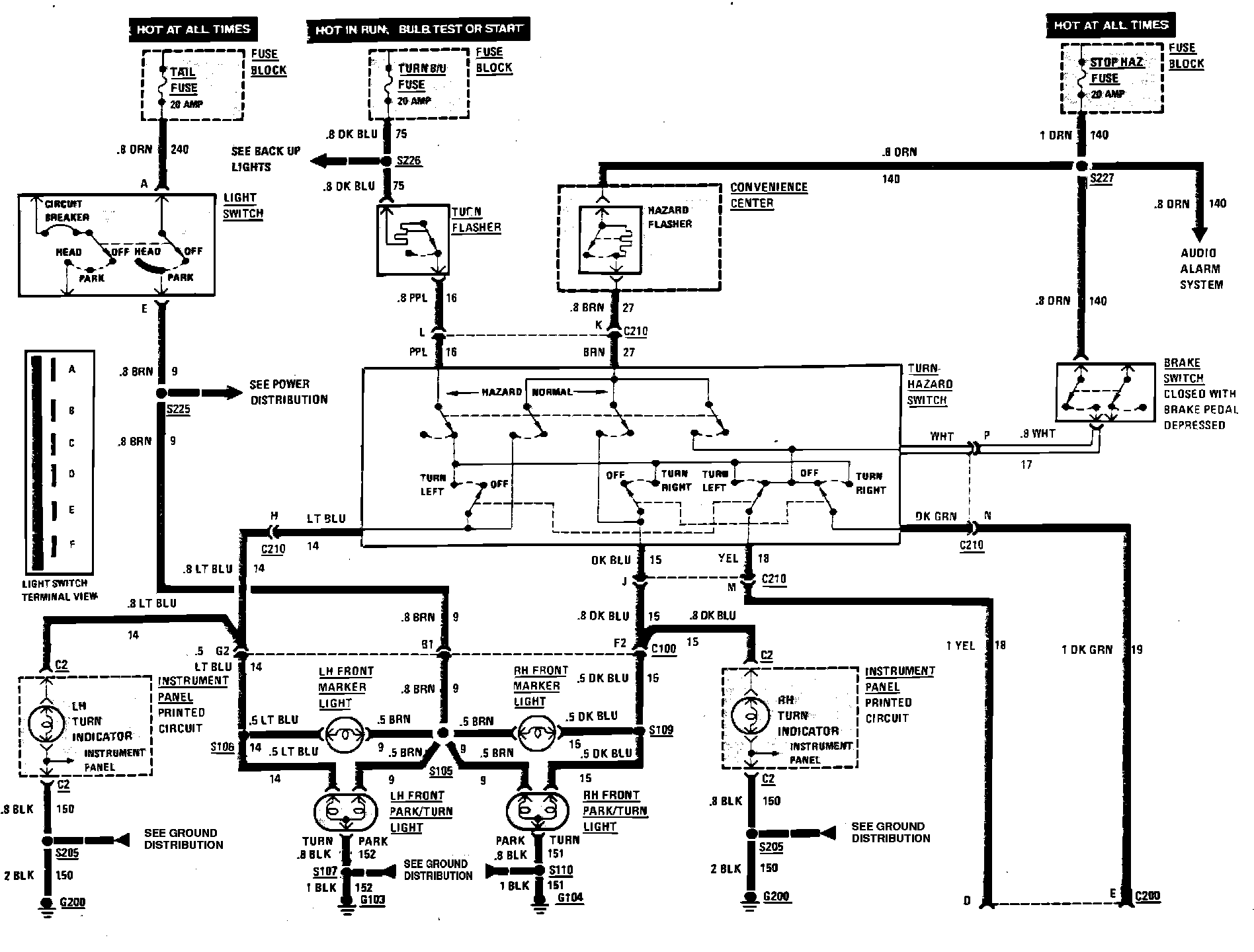

Front Marker, Front Park, Hazard, Stop & Turn Signal Lights Wiring Circuit:



Front Marker, Front Park, Hazard, Stop & Turn Signal Lights Wiring Circuit:
