Home >> Pontiac >> 1983 >> Firebird V6-173 2.8L VIN 1 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Powertrain Controls >> Check Engine Light, Idle Speed Control

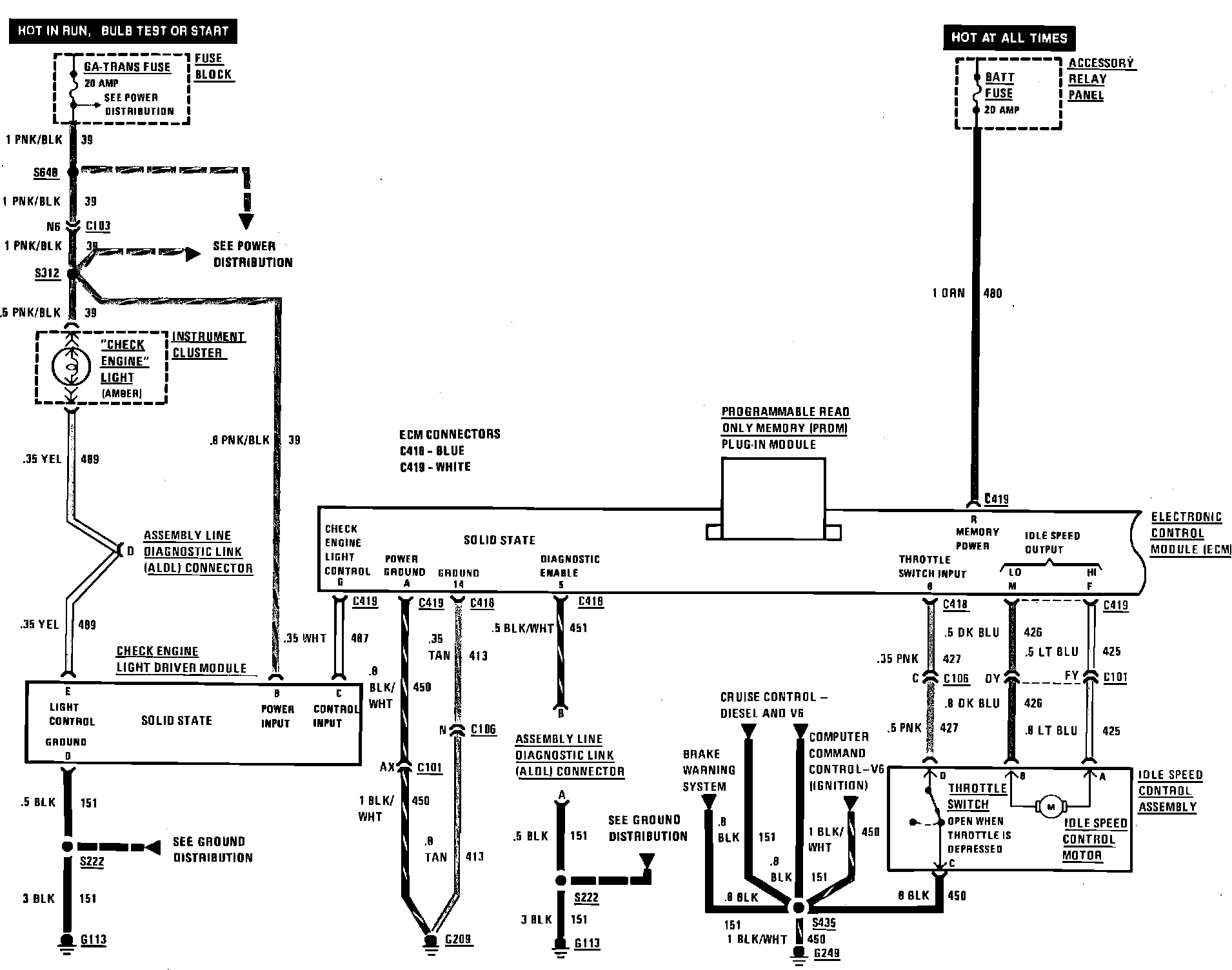

Check Engine Light, Idle Speed Control

Computer Command Control (Check Engine Light, Idle Speed Control):
