Home >> Pontiac >> 1983 >> Firebird V6-173 2.8L VIN 1 2-bbl >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Emission Control Systems >> High Output

High Output

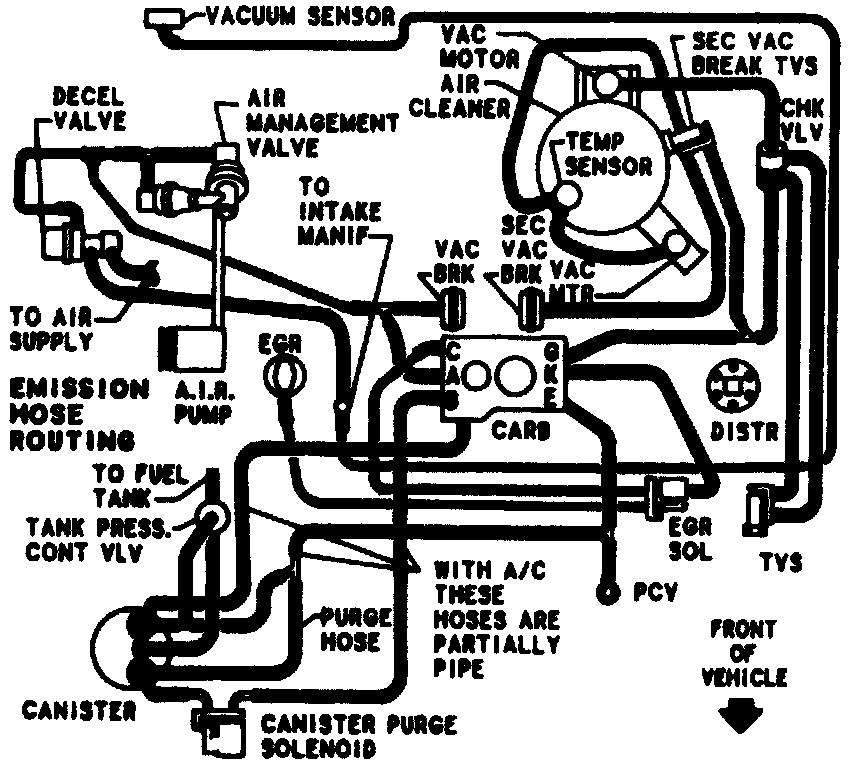

Vacuum Hose Routing:
