System Specifications

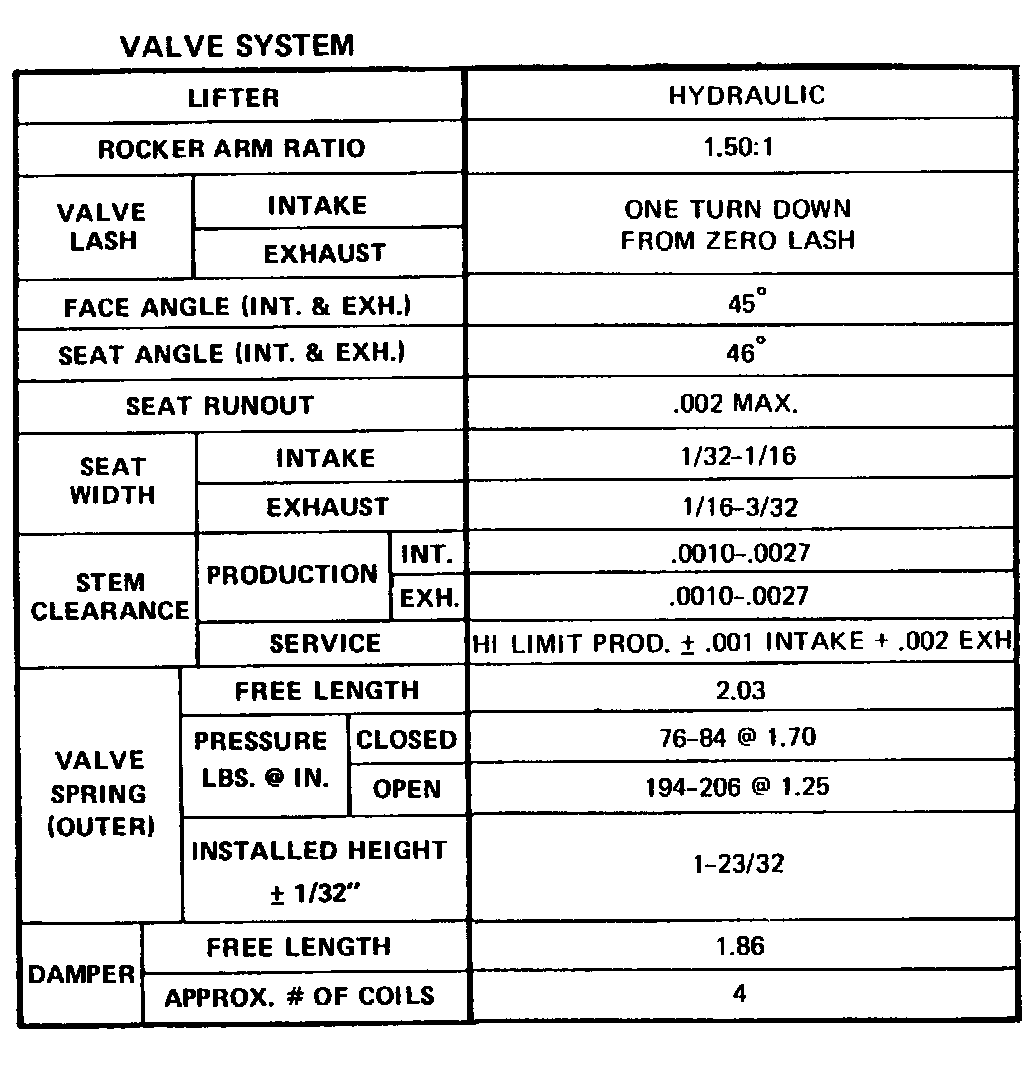

Engine Specifications:

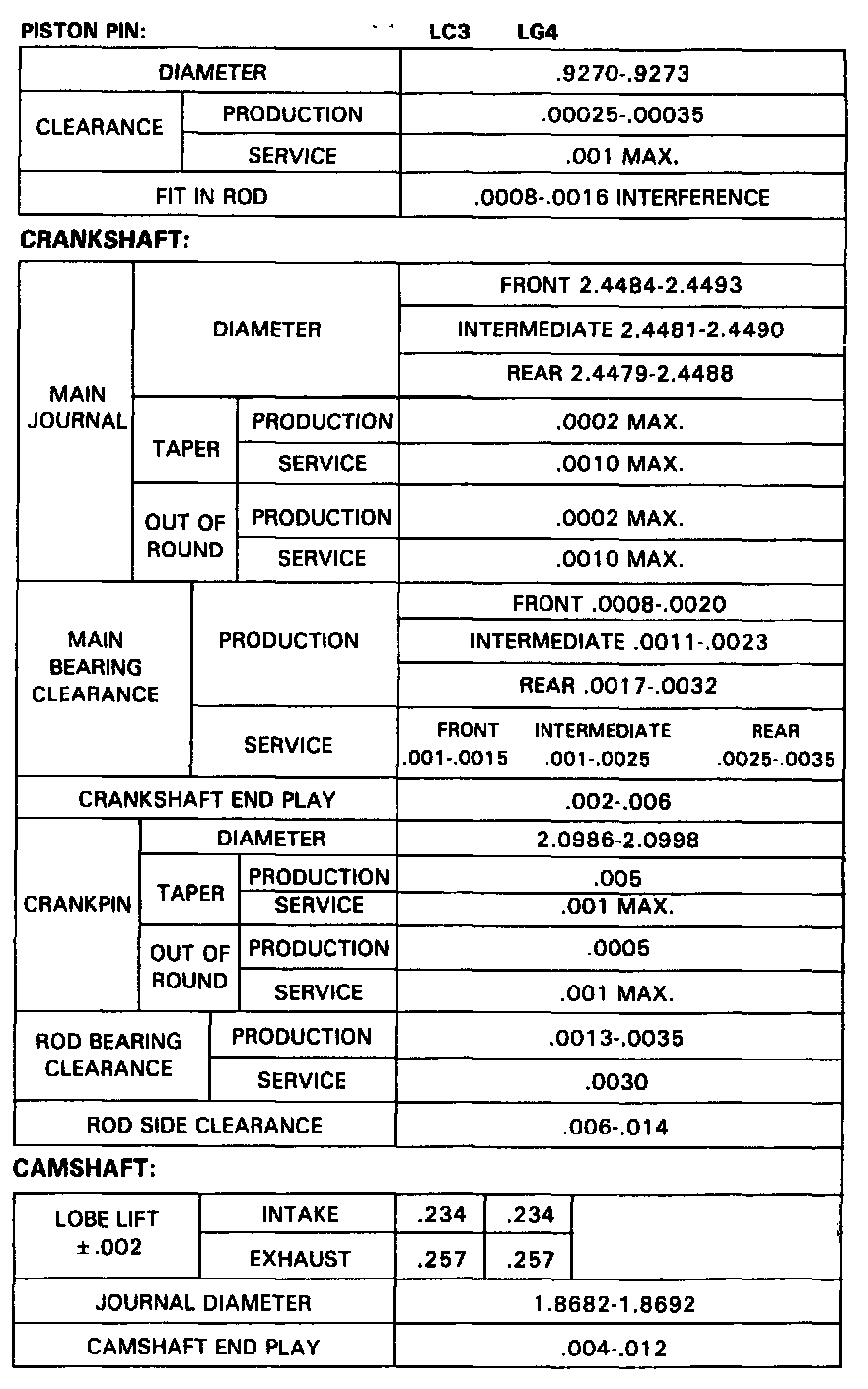

Continued Engine Specifications:





Continued Engine Specifications:

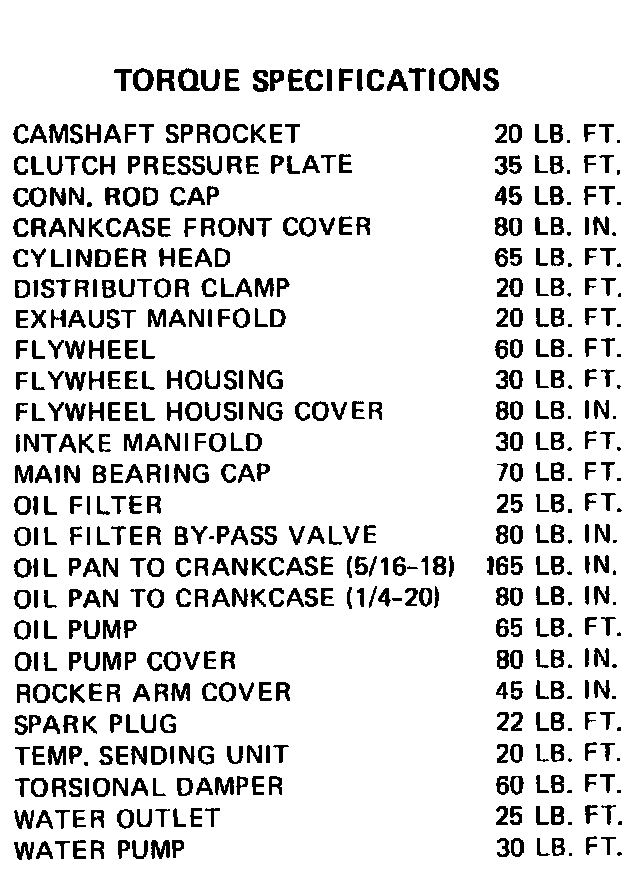

Torque Specifications:

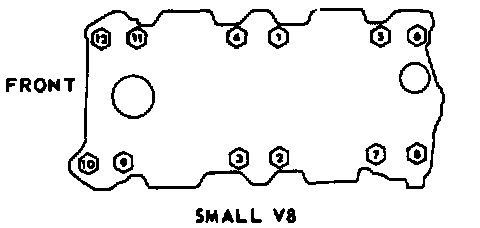

Intake Manifold V8:

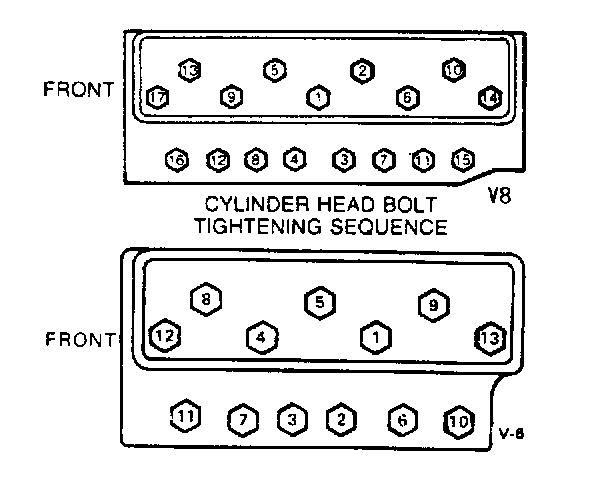

Cylinder Head Sequence:
