Glow Plugs/Fuel Control

Glow Plug Control System Wiring Circuit:

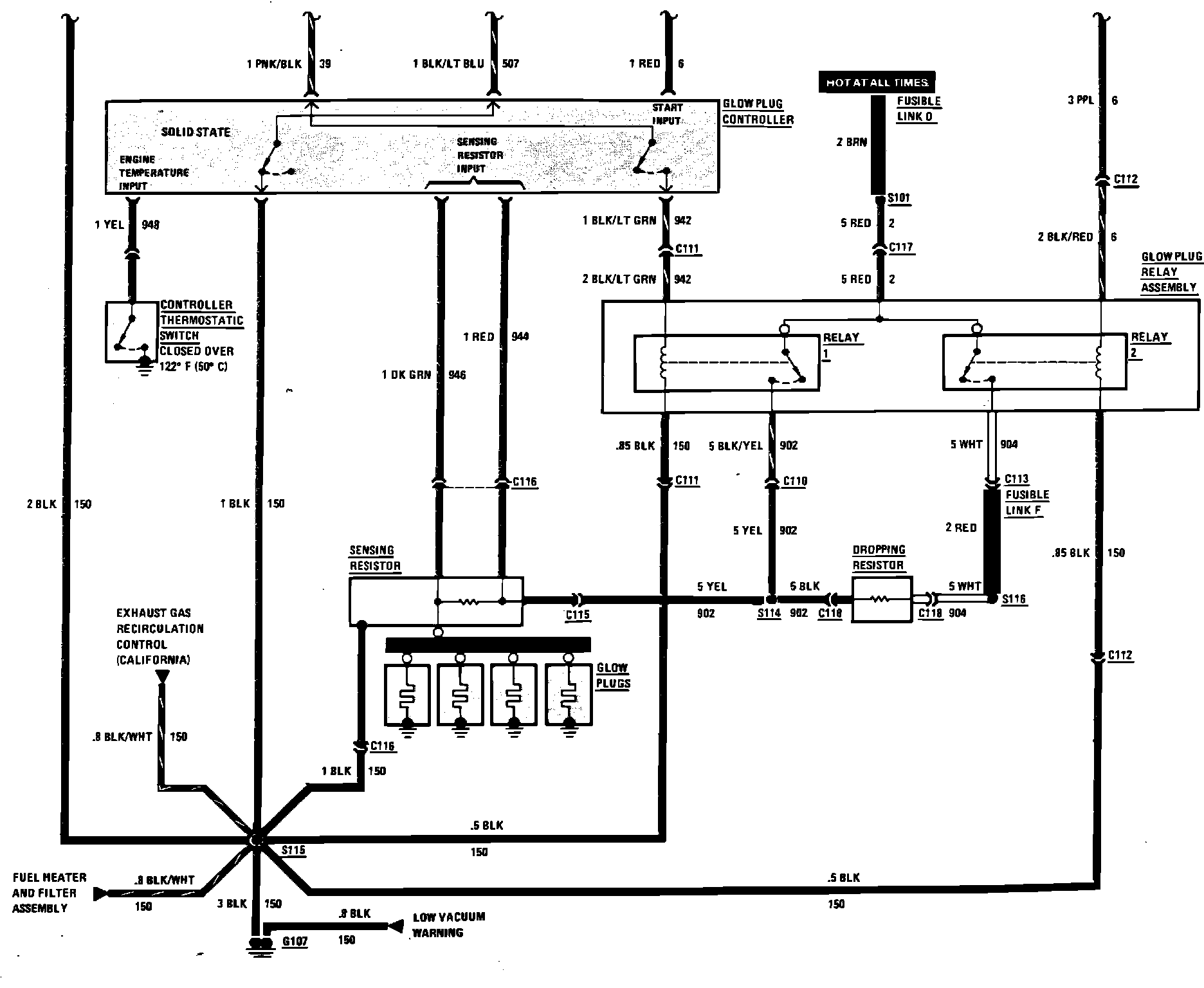

Glow Plug Control System Wiring Circuit:
