System Specifications

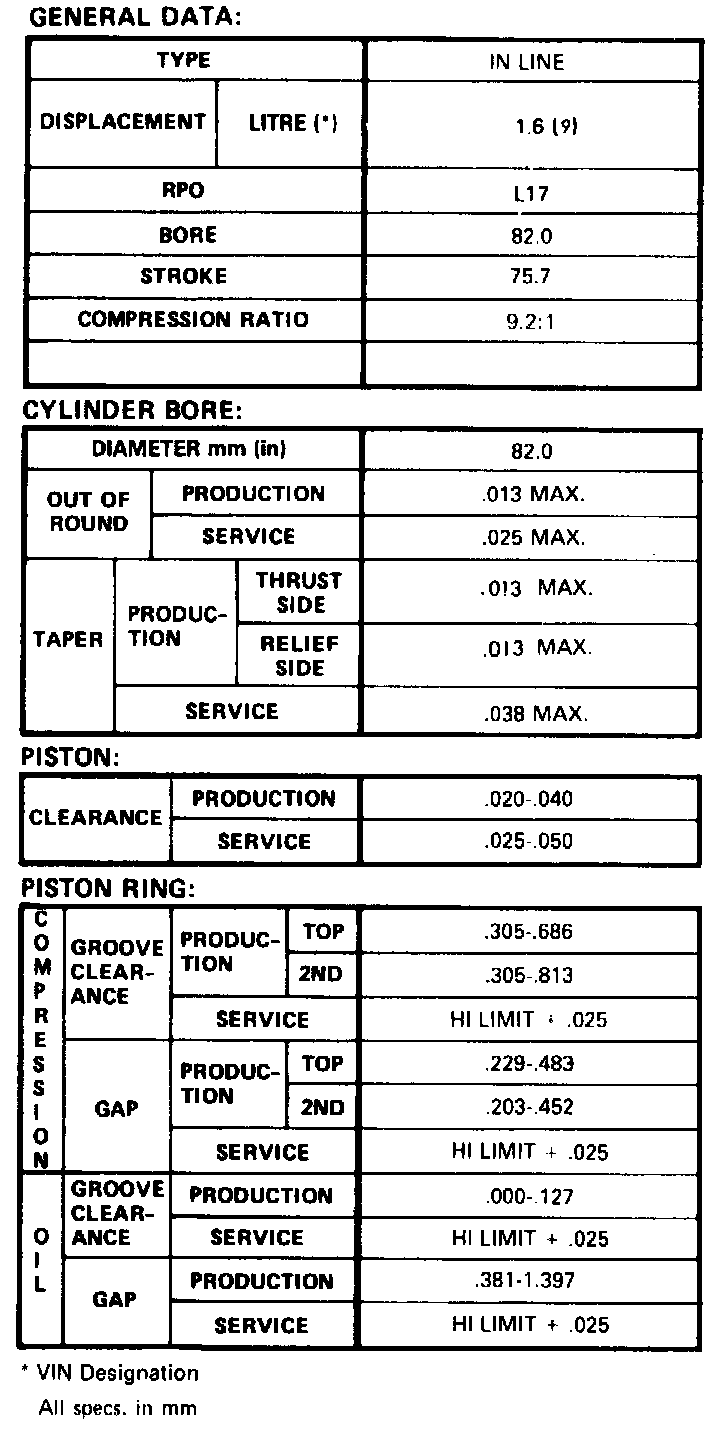

Engine Specifications:





Engine Specifications:

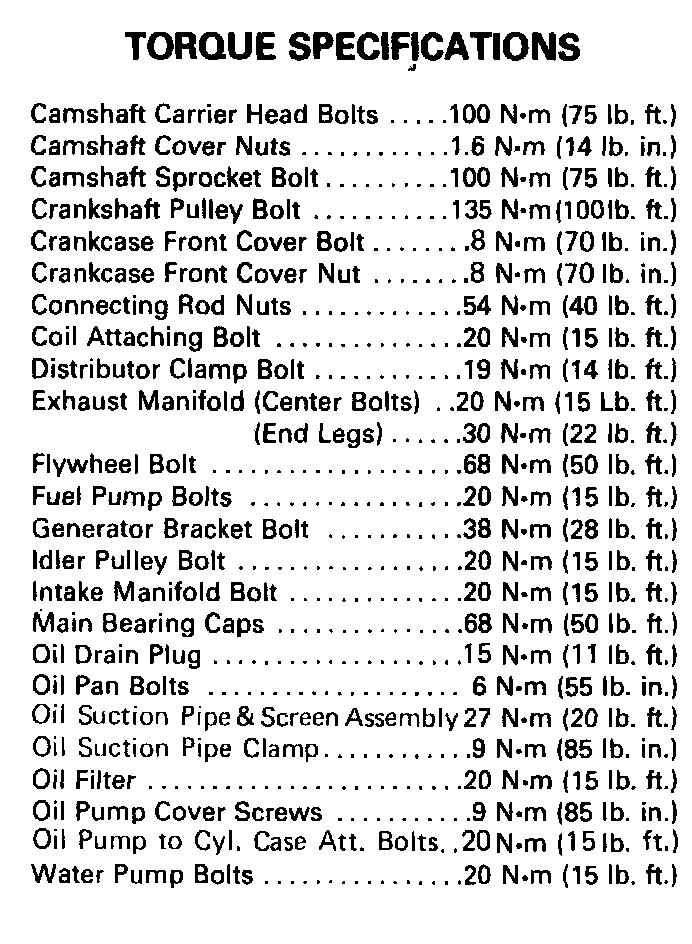

Torque Specifications:





Engine Specifications:







Cylinder Head Sequence:
