Fuel Control & Vehicle Data Sensor

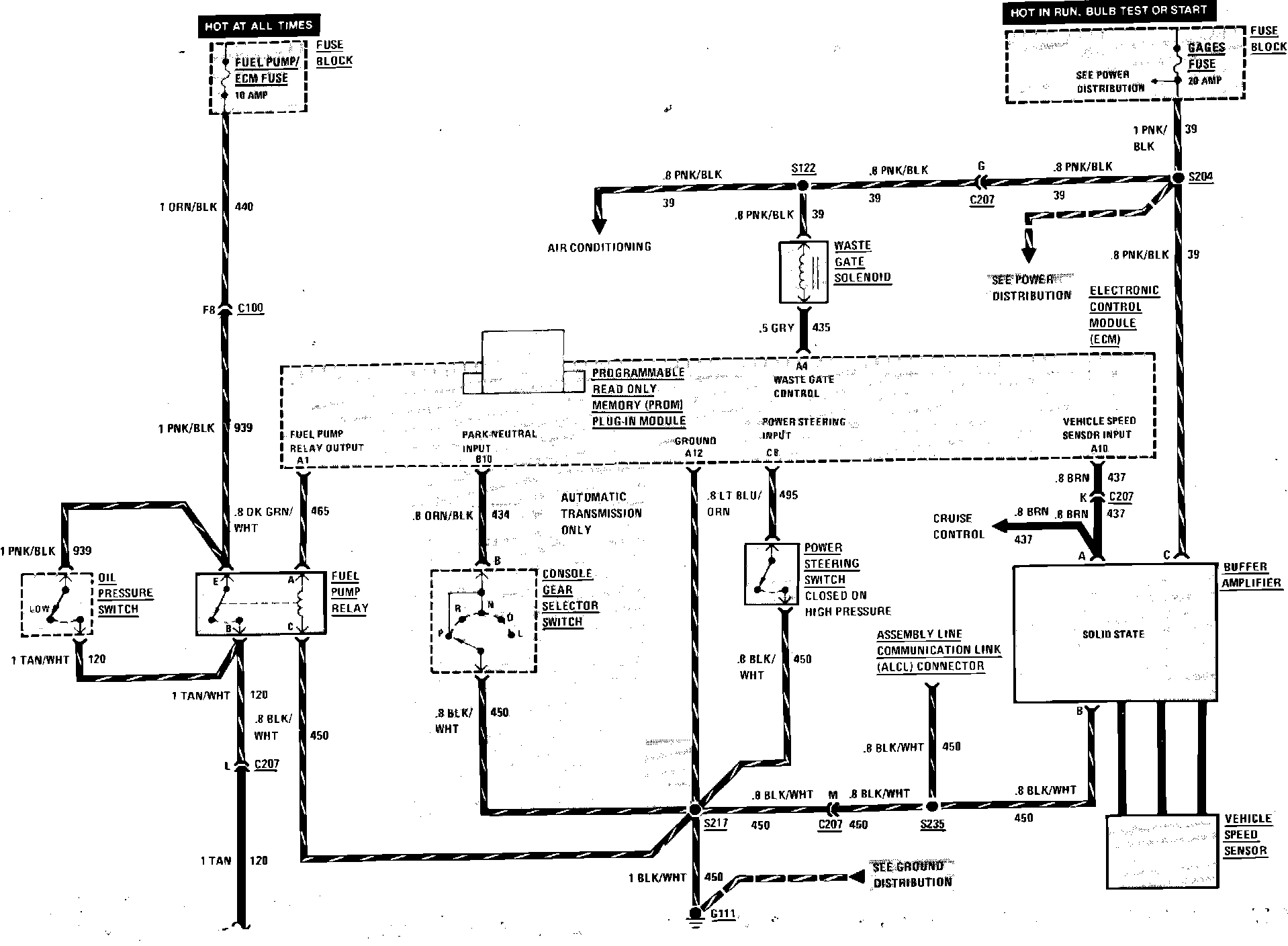

Turbo Fuel Injection Wiring Circuit (Fuel Control & Vehicle Data Sensor):



Turbo Fuel Injection Wiring Circuit (Fuel Control & Vehicle Data Sensor):
