A/C, Except Calif. 6000 & 6000LE

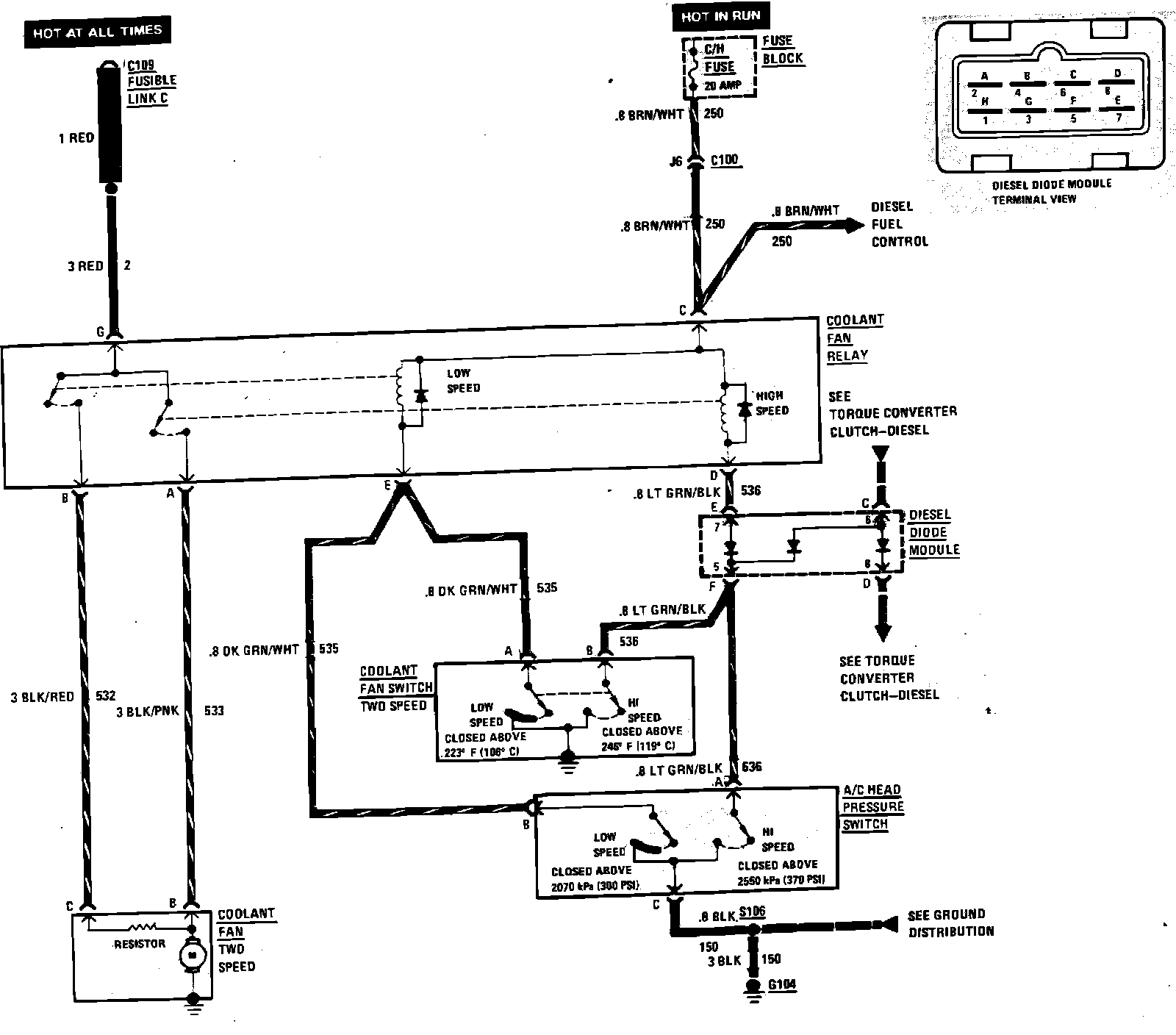

Engine Cooling Fan Wiring Circuit 6000 & 6000LE W-A/C, Except Calif.:
