Home
>>
Pontiac
>>
1984
>>
6000 V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

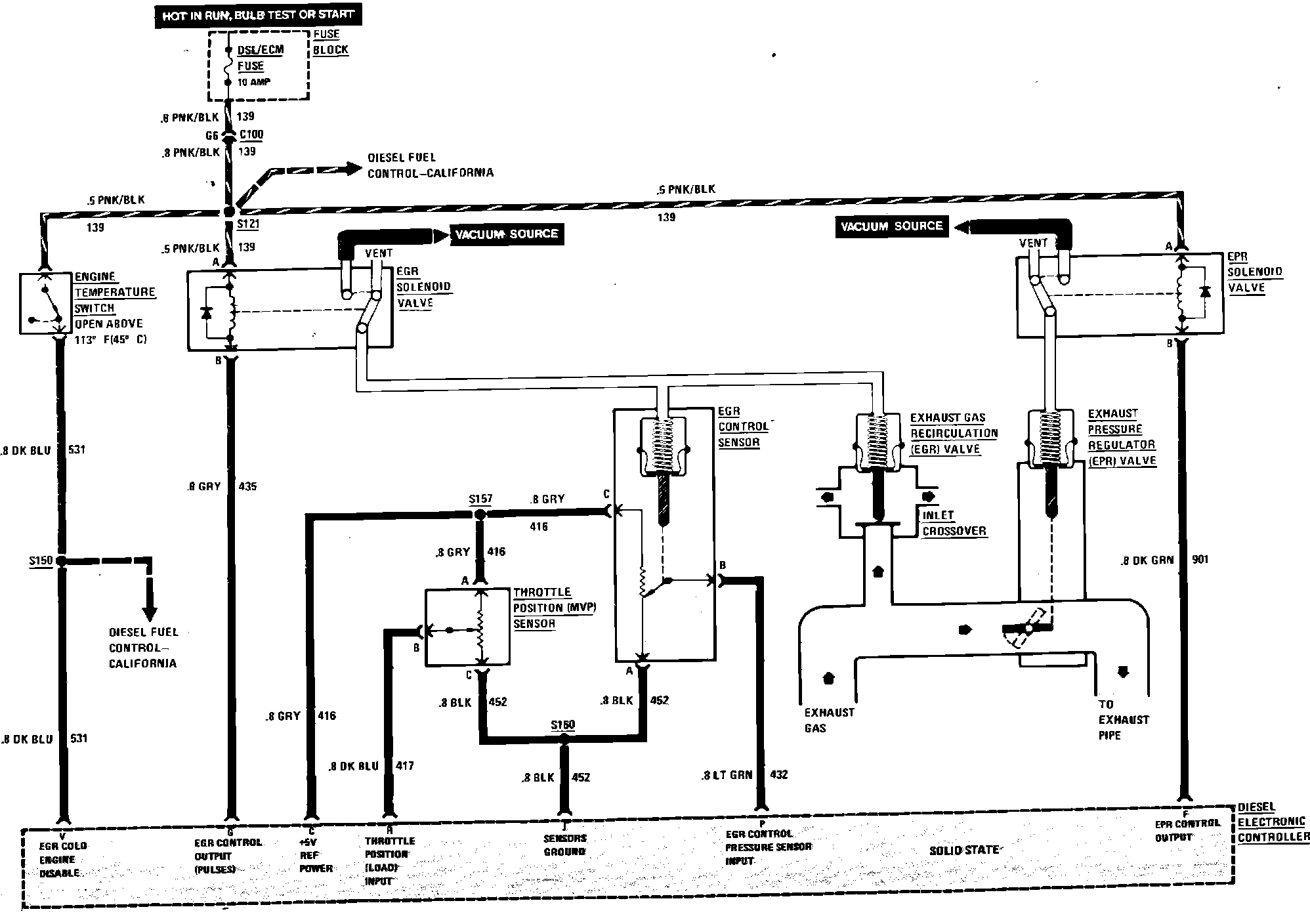

Exhaust Gas Recirculation (EGR) System
Exhaust Gas Recirculation (EGR) System
EGR 6000 & 6000LE, Calif.:
EGR 6000 & 6000LE, Calif.:
