Fuel Control, Idle Air Control (IAC) & Vehicle Speed Sensors
Fuel Control, Idle Air Control (IAC) & Vehicle Speed Sensors

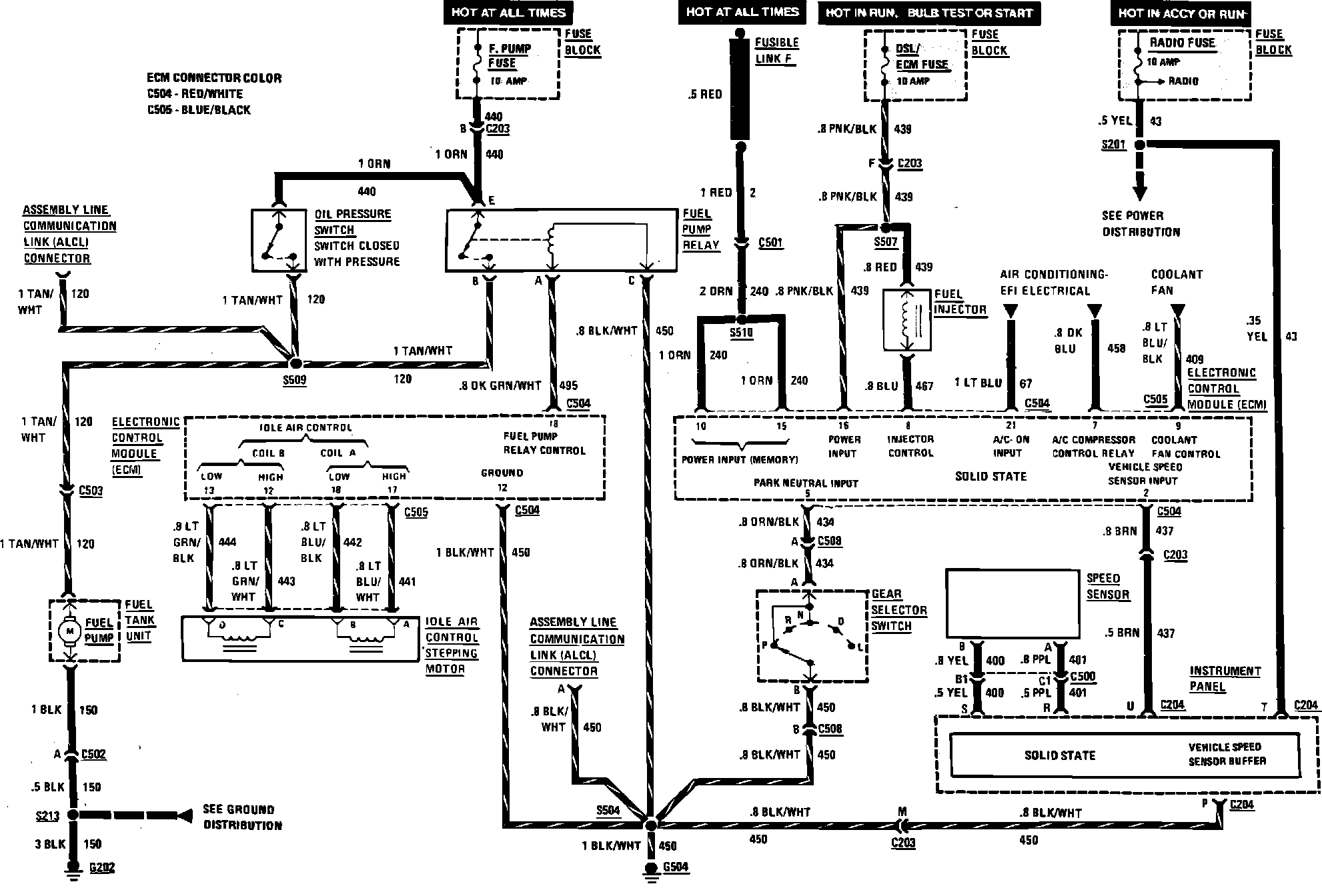

Electronic Fuel Injection Wiring Circuit (Fuel Control, Idle Air Control & Vehicle Data Sensors):
