Vacuum and Vapor Hose Diagrams

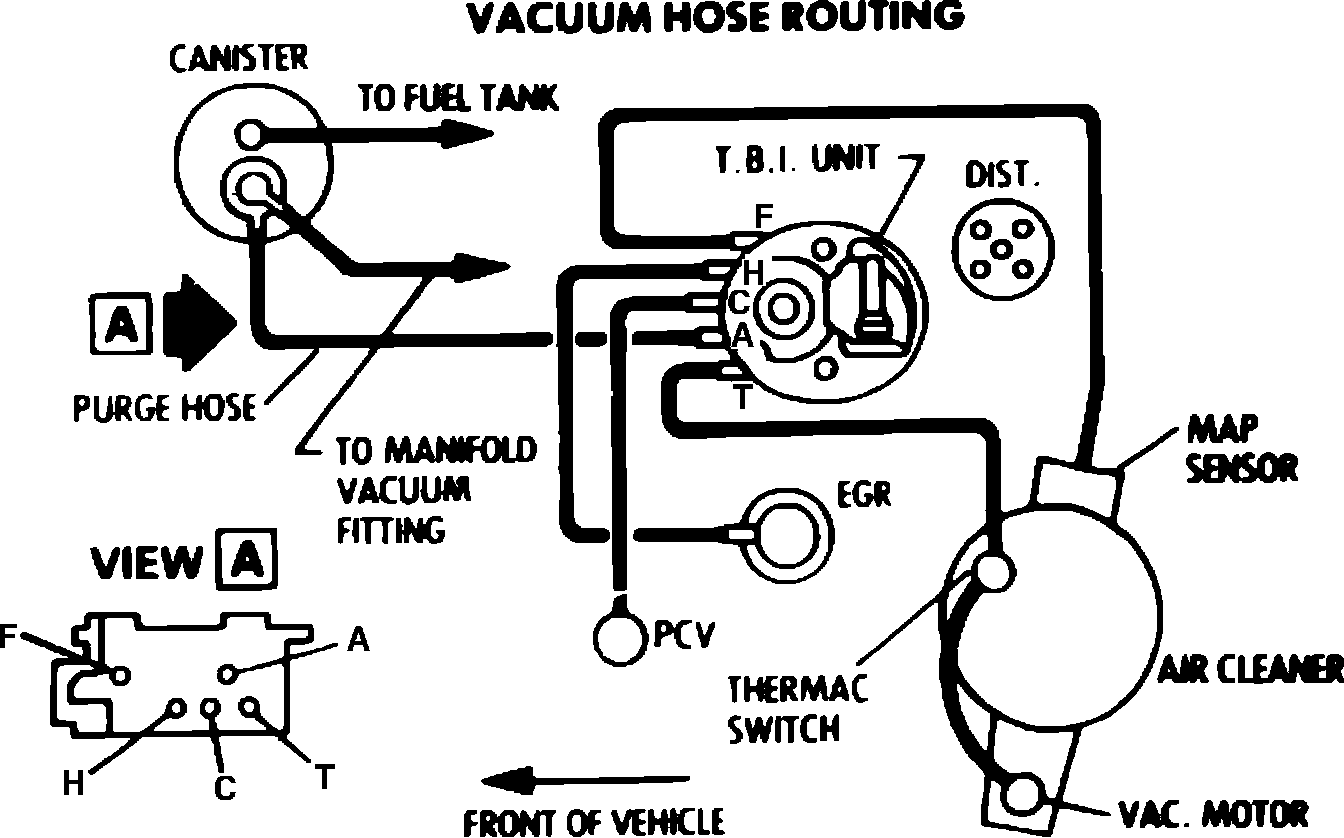

Fig. 10 Vacuum Hose Routing. 1984 4-151 (2.5L) TBI Firebird & Camaro (VIN 2):
