Vacuum and Vapor Hose Diagrams

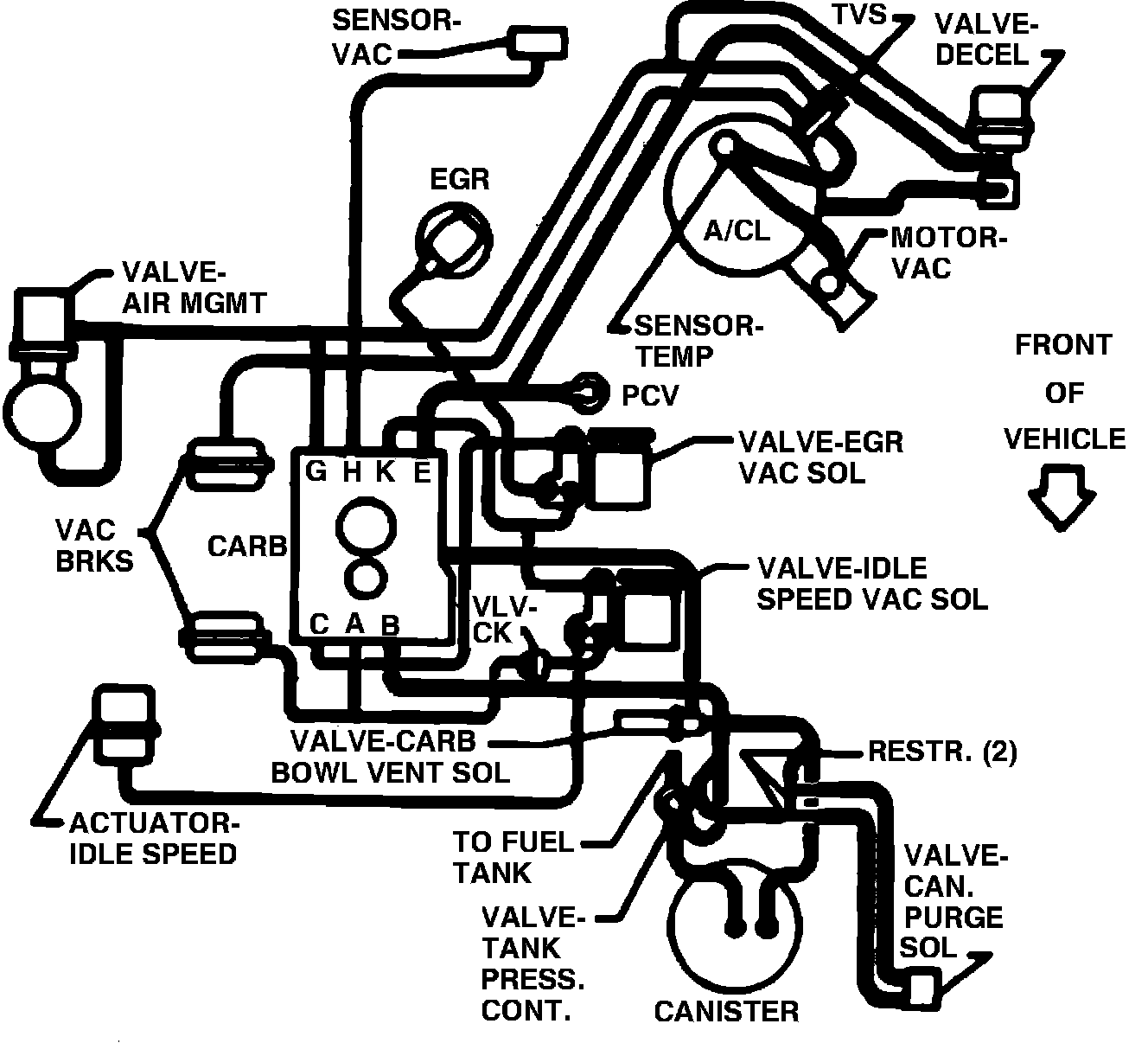

Fig. 12 Vacuum Hose Routing. 1984 V6-173 (2.8L) 2 Bbl. Camaro & Firebird, (VIN 1 & L):
