Part 1 of 2 Firebird W/V8-305 VIN G
Part 1 of 2 Firebird W/V8-305 VIN G

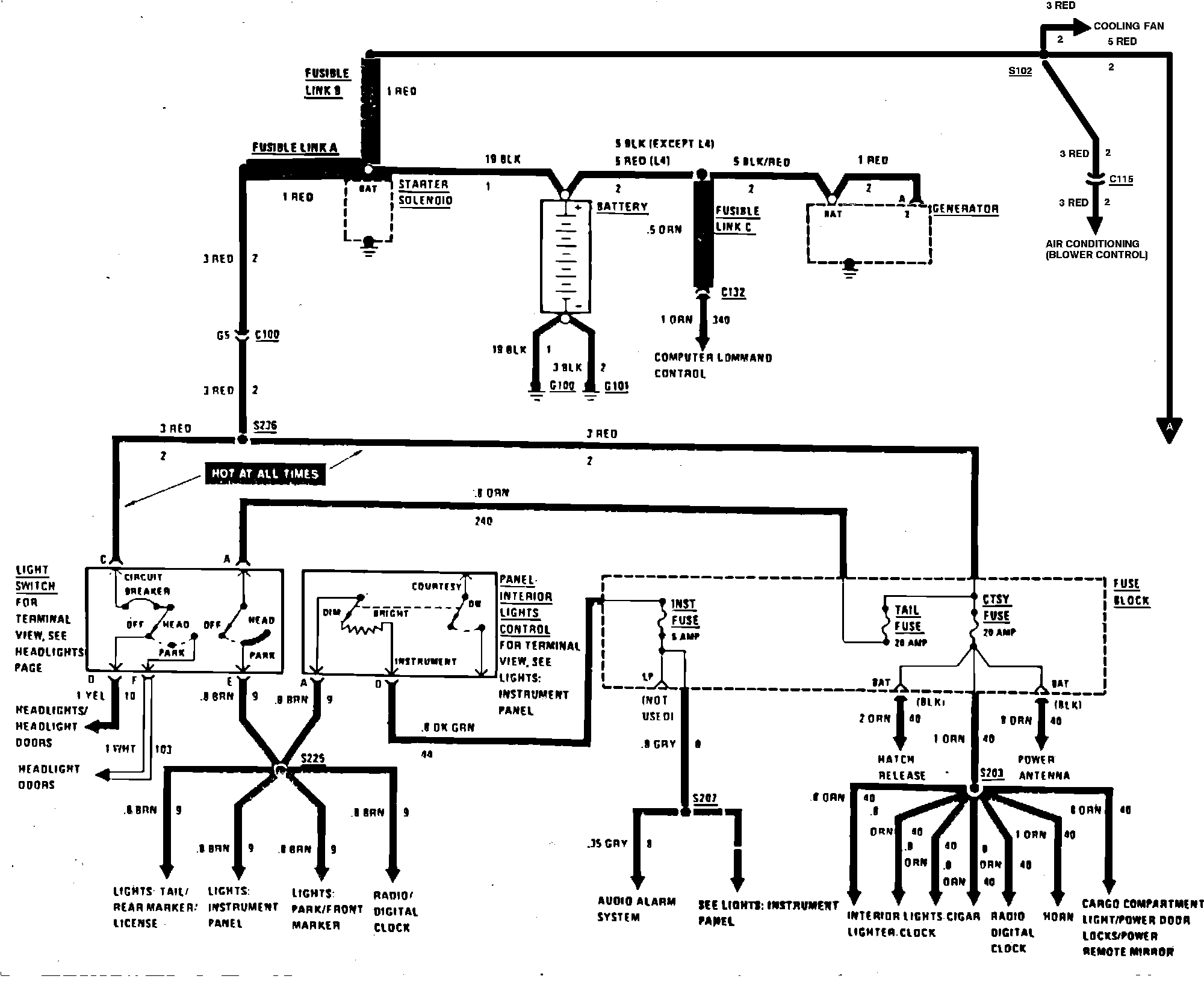

Power Distribution Wiring Circuit W/V8-305 (V.I.N. G):
