Torque Converter Clutch & Vehicle Speed Sensor (VSS)

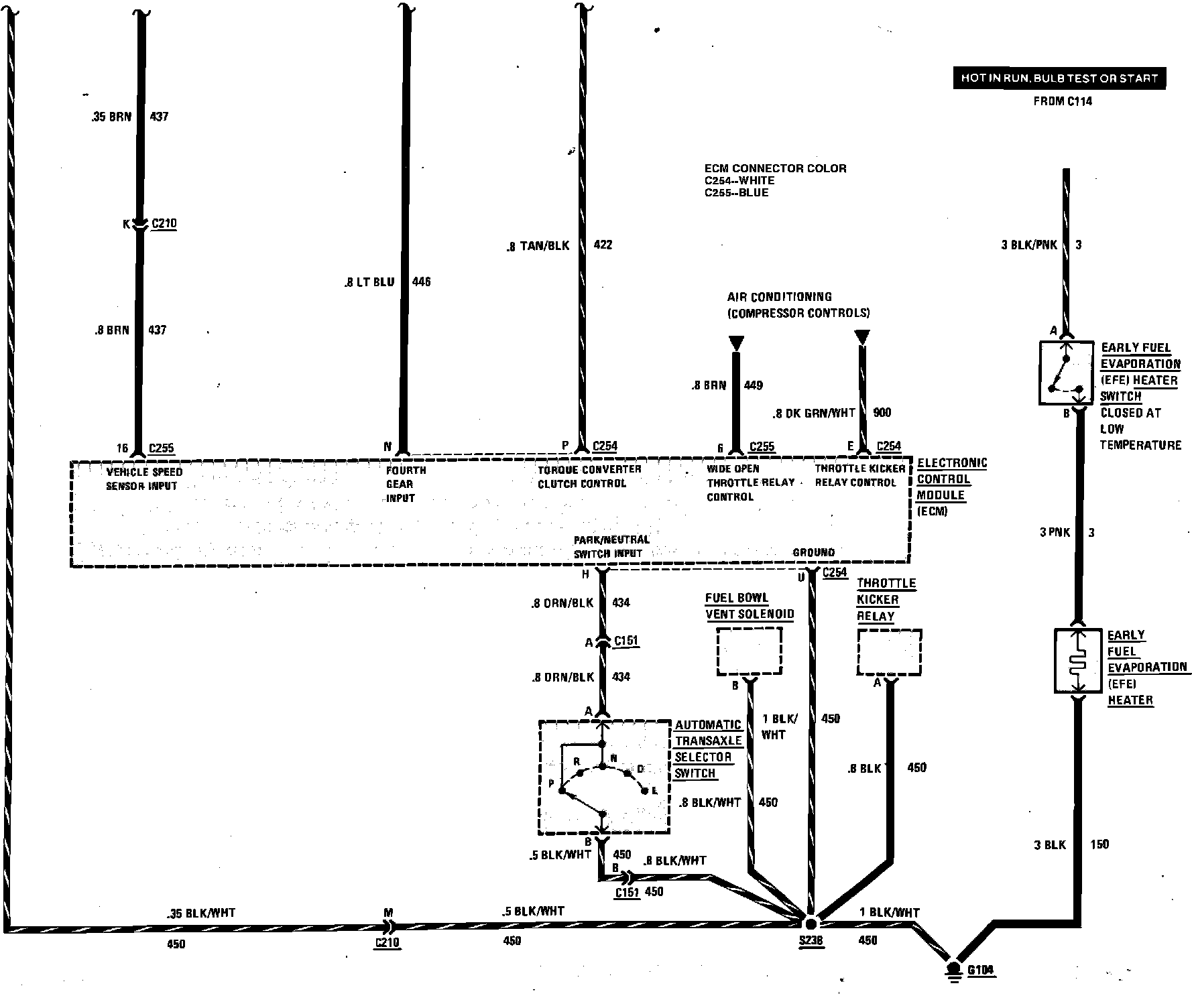

Fig. 81 Computer Command Control (Torque Convertor Clutch & Vehicle Data Sensors-Part (1 of 2) Wiring Circuit:

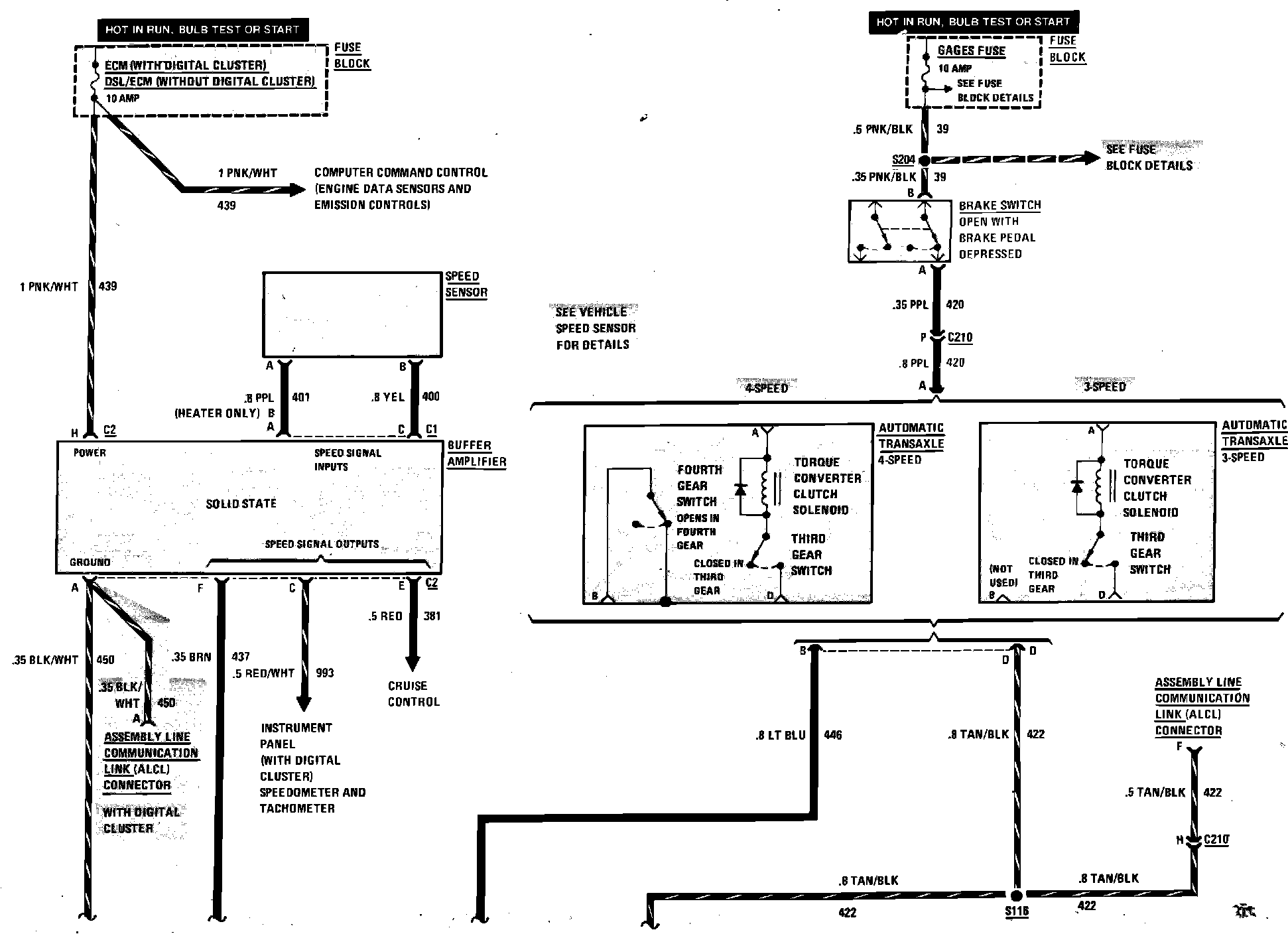

Fig. 81 Computer Command Control (Torque Convertor Clutch & Vehicle Data Sensors-Part (2 of 2) Wiring Circuit:
