Exhaust Gas Recirculation (EGR) & Check Engine Light

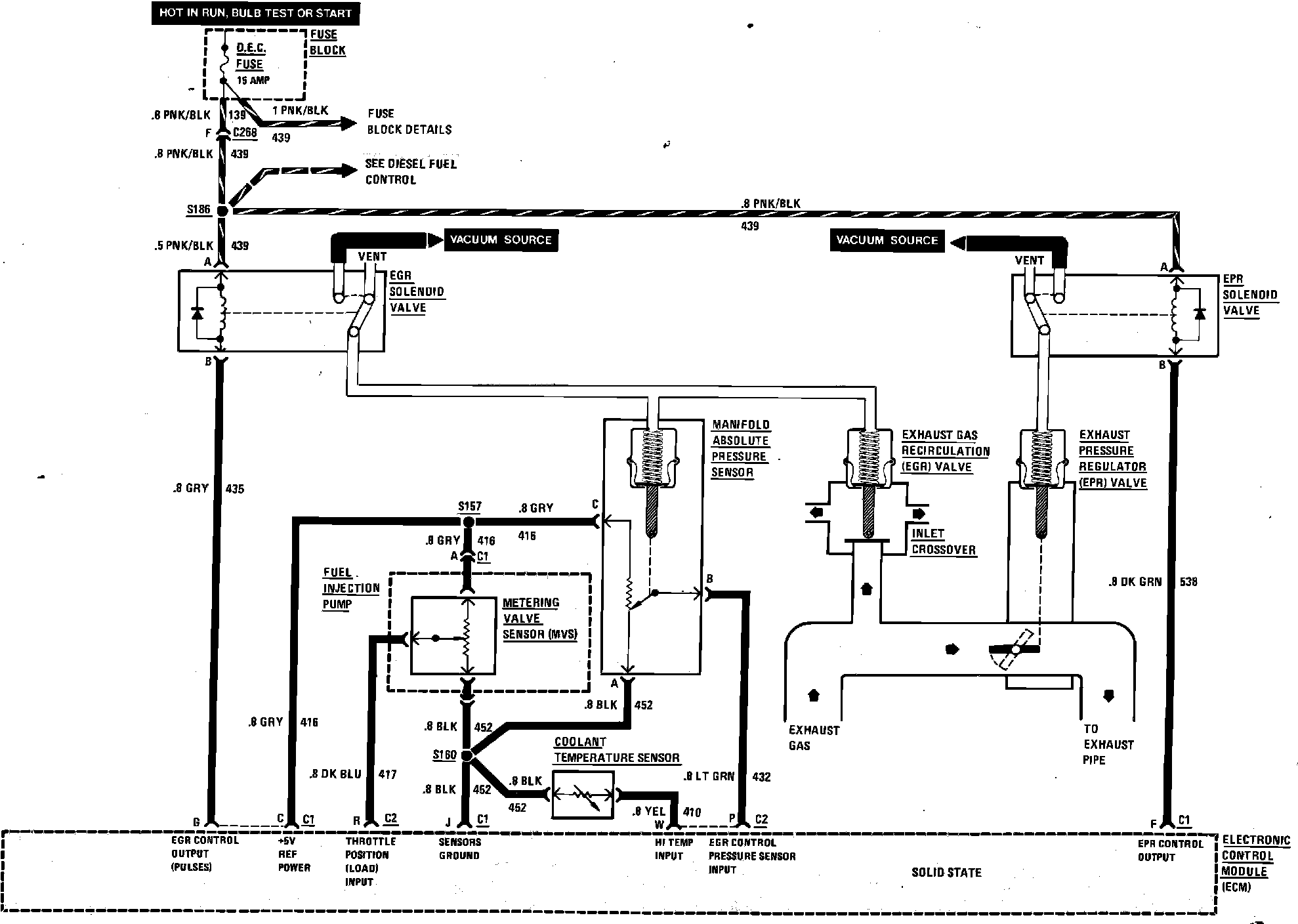

Fig. 125 Exhaust Gas Recirculation & Check Engine Light Wiring Circuit (Part 1 of 2):



Fig. 125 Exhaust Gas Recirculation & Check Engine Light Wiring Circuit (Part 2 of 2):
