Engine Does Not Start When Cold Wait Lamp OK Goes on, Then Off

Fig. 7 Diesel engine electrical troubleshooting chart (Part 1 of 2). 1984-85 Models:

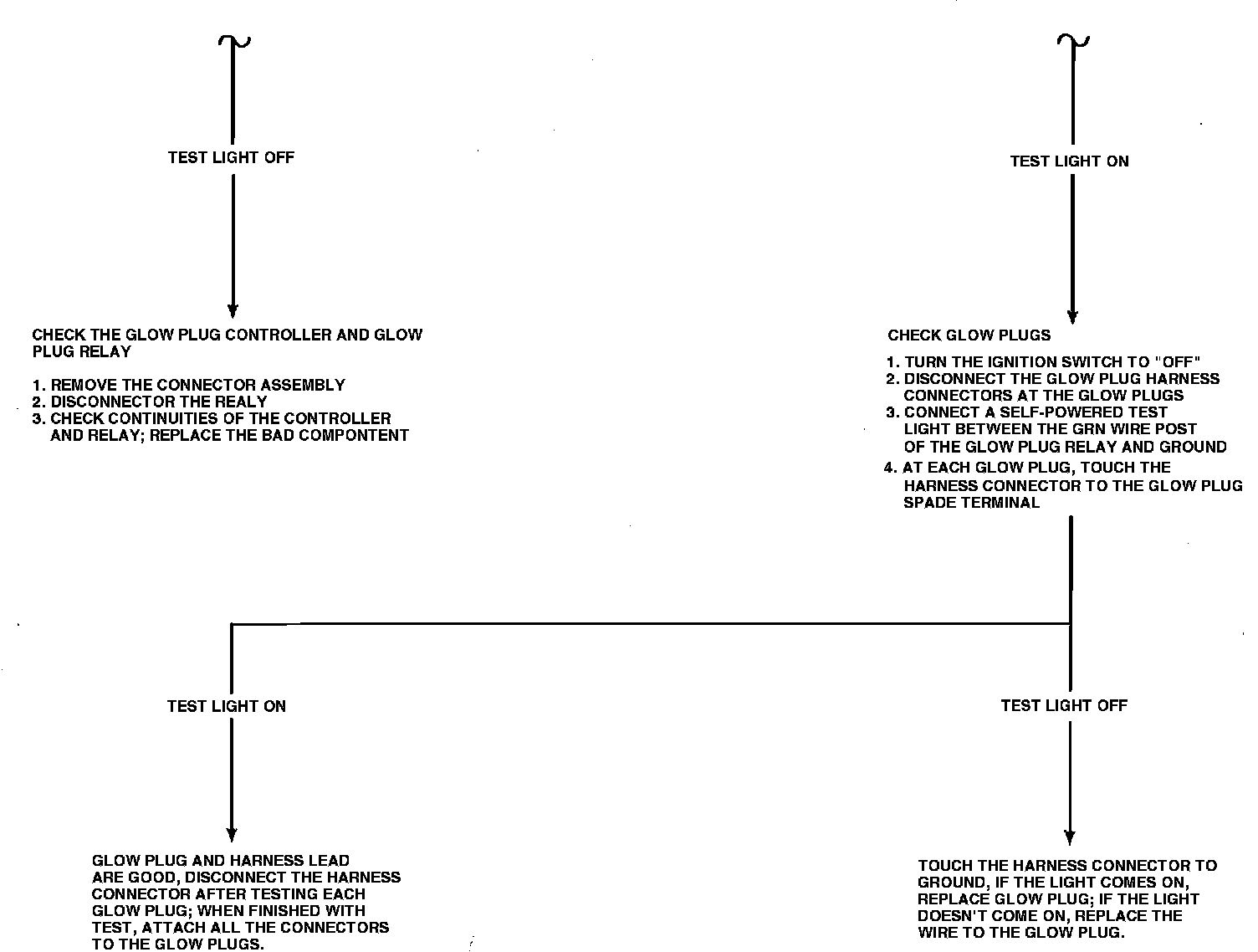

Fig. 7 Diesel engine electrical troubleshooting chart (Part 2 of 2). 1984-85 Models:
