Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1985
>>
Firebird V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control

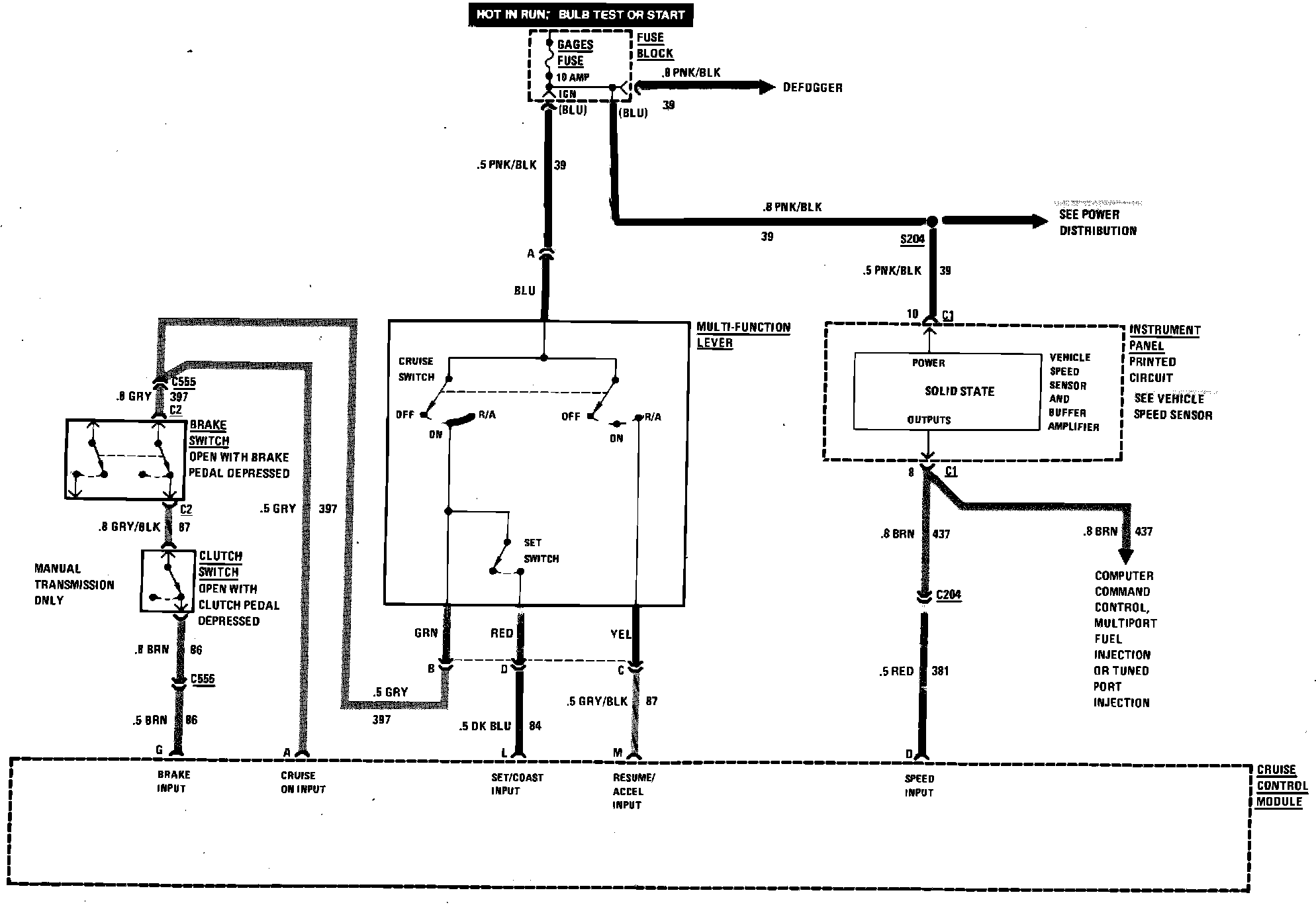

Cruise Control Vacuum & Wiring Circuit:
Cruise Control Vacuum & Wiring Circuit:
