Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>

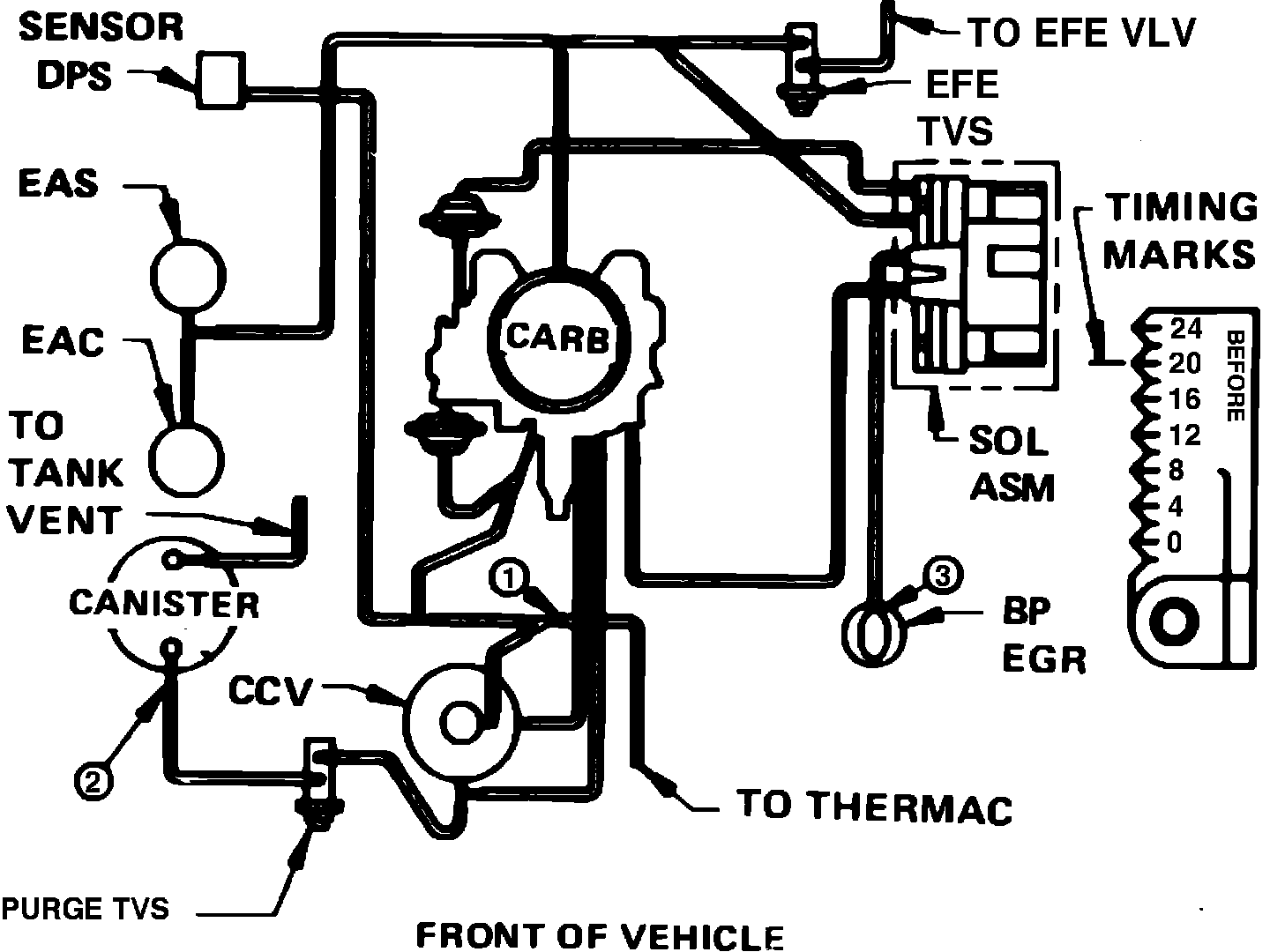

Figure 32 V8-305 (5.0L) 4 Bbl. With A/T, (Vin 9)
Figure 32 V8-305 (5.0L) 4 Bbl. With A/T, (Vin 9)
Fig. 32 Vacuum Hose Routing. 1985 V8-305 (5.0L) 4 Bbl. With A/T, (VIN 9):
