Instrument Panel Printed Circuit (Typical)
Instrument Panel Printed Circuit (Typical)

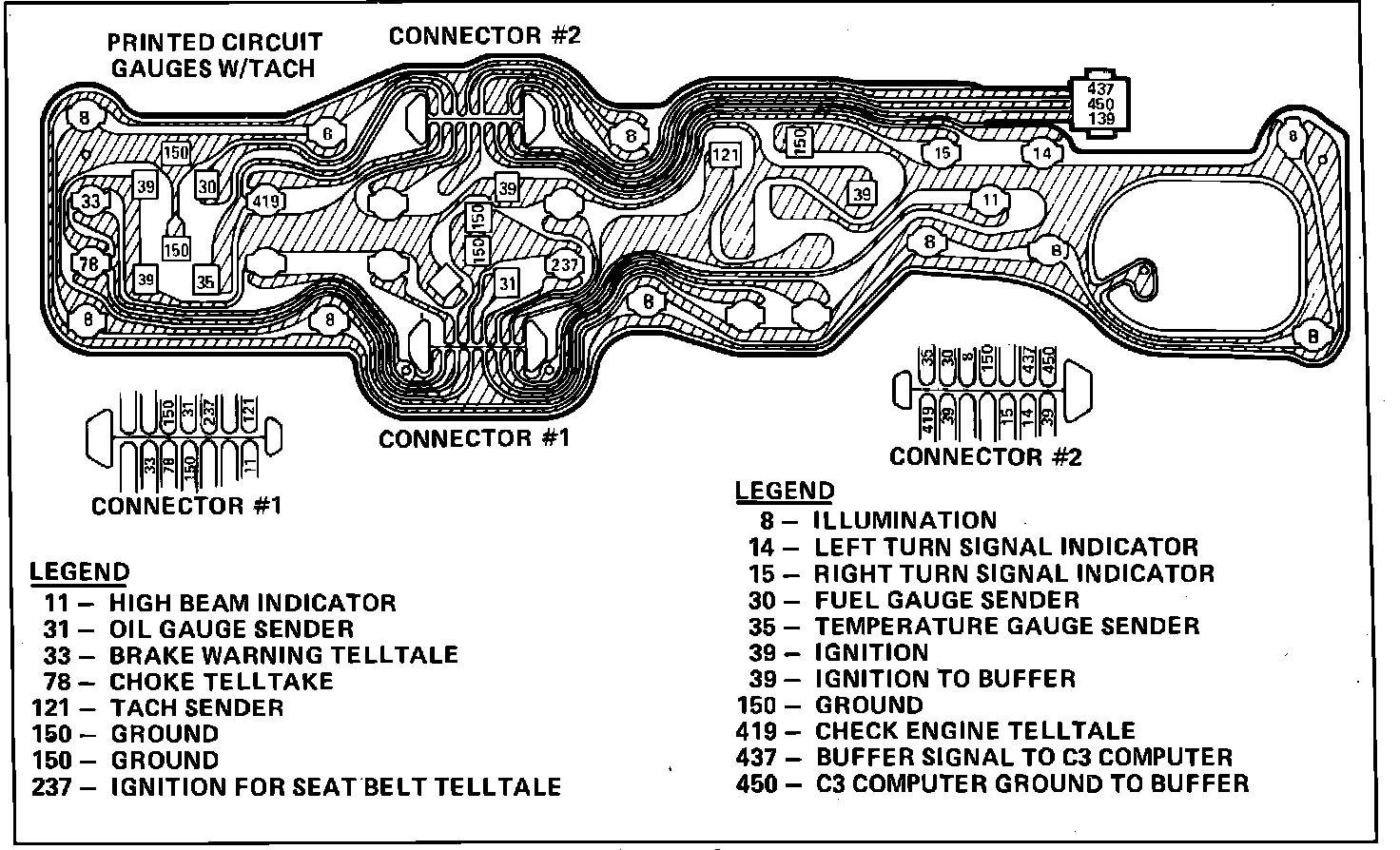

Instrument Cluster Printed Circuit (With Gauge Package):
