DTC 34

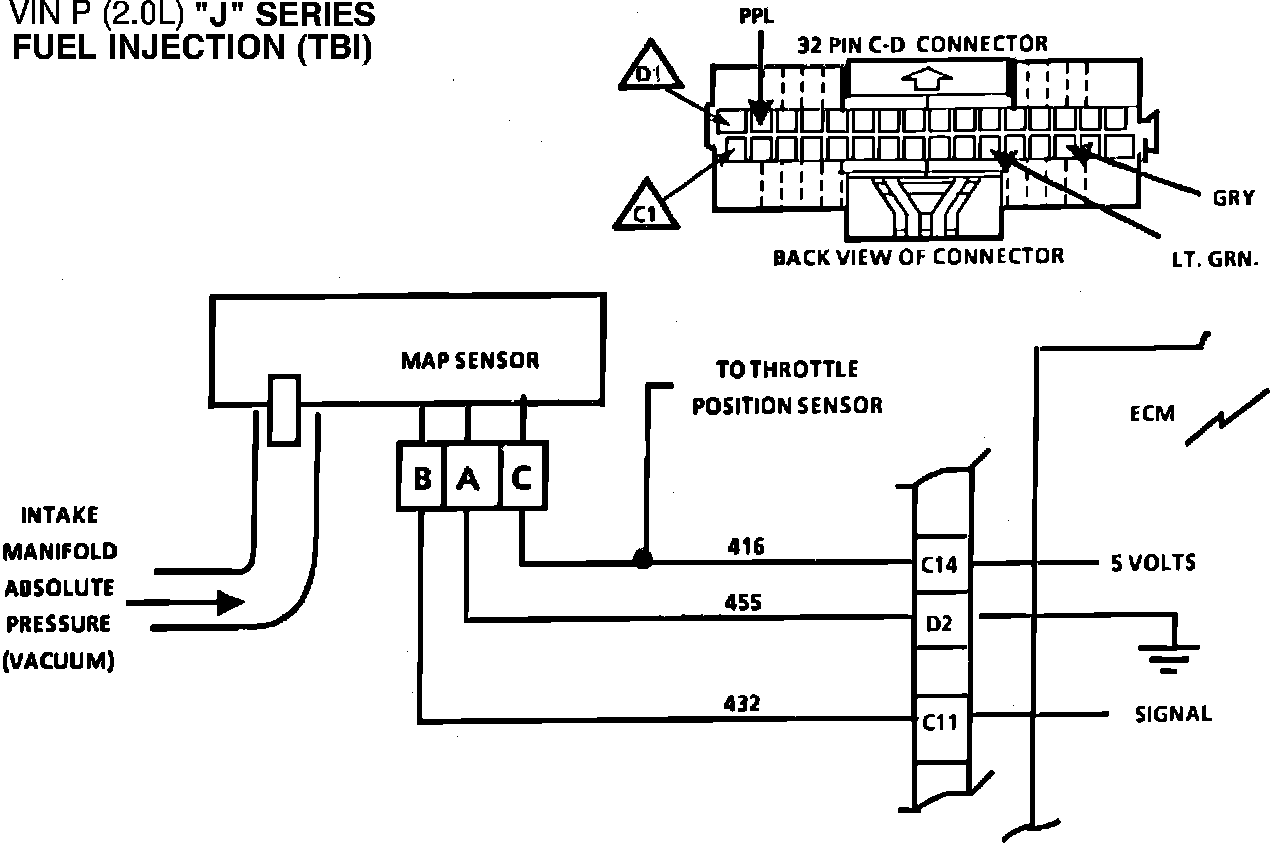

Fig. 058 - Wiring Diagram for Code 34 MAP Sensor. VIN P:

CODE 34

MAP SENSOR

SIGNAL VOLTAGE LOW

2.0L "J" SERIES,

FUEL INJECTION (TBI)

Fig. 057 Chart - Code 34 MAP Sensor (Signal Voltage Too Low):

The Manifold Absolute Pressure Sensor (MAP) responds to changes in manifold pressure (vacuum). The ECM receives this information as a signal voltage that will vary from about 1 to 1.5 at idle to 4-4.5 volts at wide open throttle.
If the MAP sensor fails the ECM will substitute a fixed MAP value and use the Throttle Position Sensor (TPS) to control fuel delivery.
Code 34 will set when signal is too low and ignition is on.
1. Confirms Code 34 and that fault is present.
2. If the ECM recognizes and sets Code 33, high MAP signal, the ECM and wiring are OK.,
