Clock
Clock

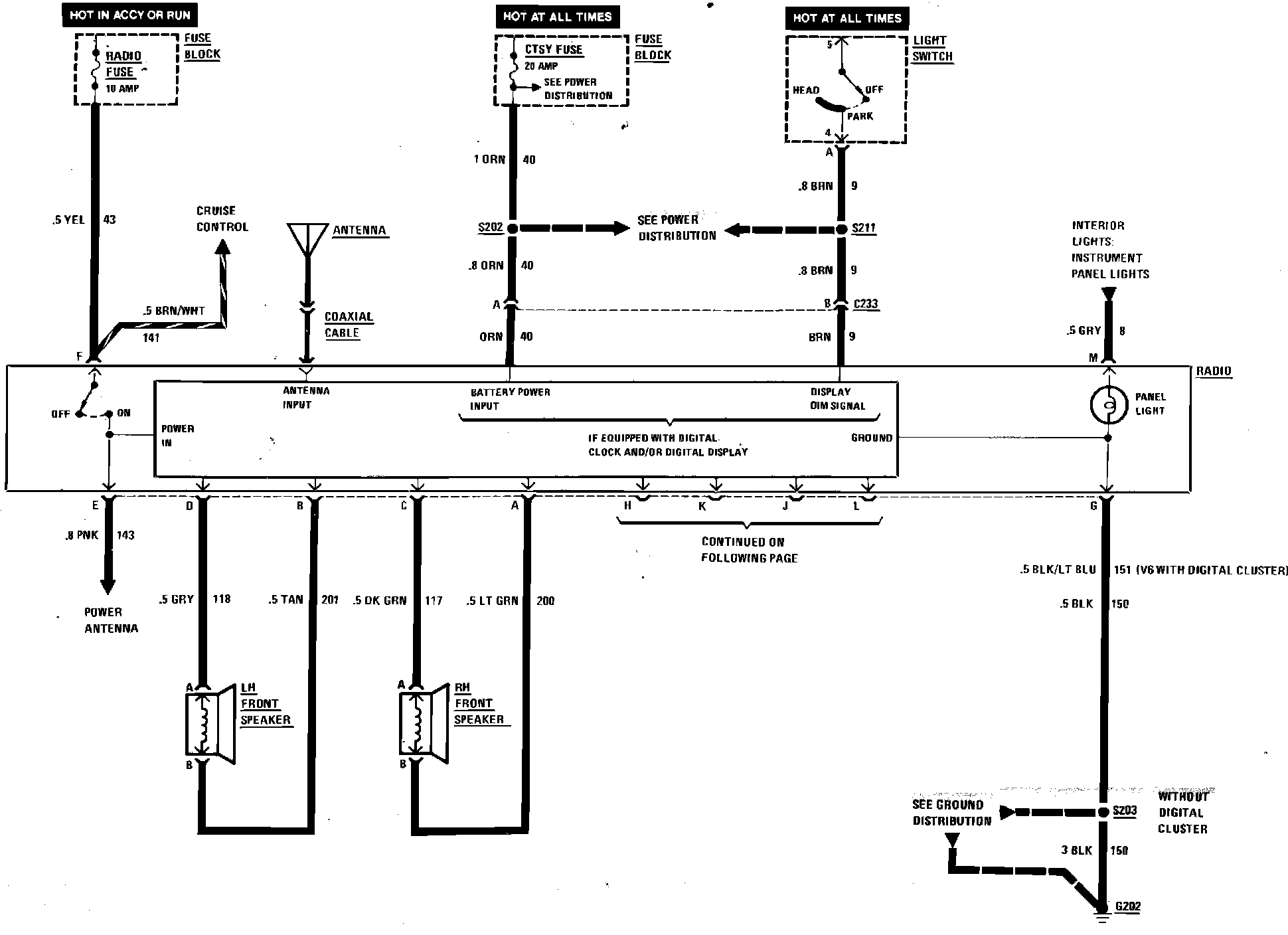

Radio & Digital Clock Wiring Circuit (Part 1 Of 2) Exc. STE:
Radio Rear Speaker Wiring Circuit (Part 2 Of 2) Exc. STE:
