Heated Glass Element
>>
W/Digital Cluster & 6000 STE
W/Digital Cluster & 6000 STE

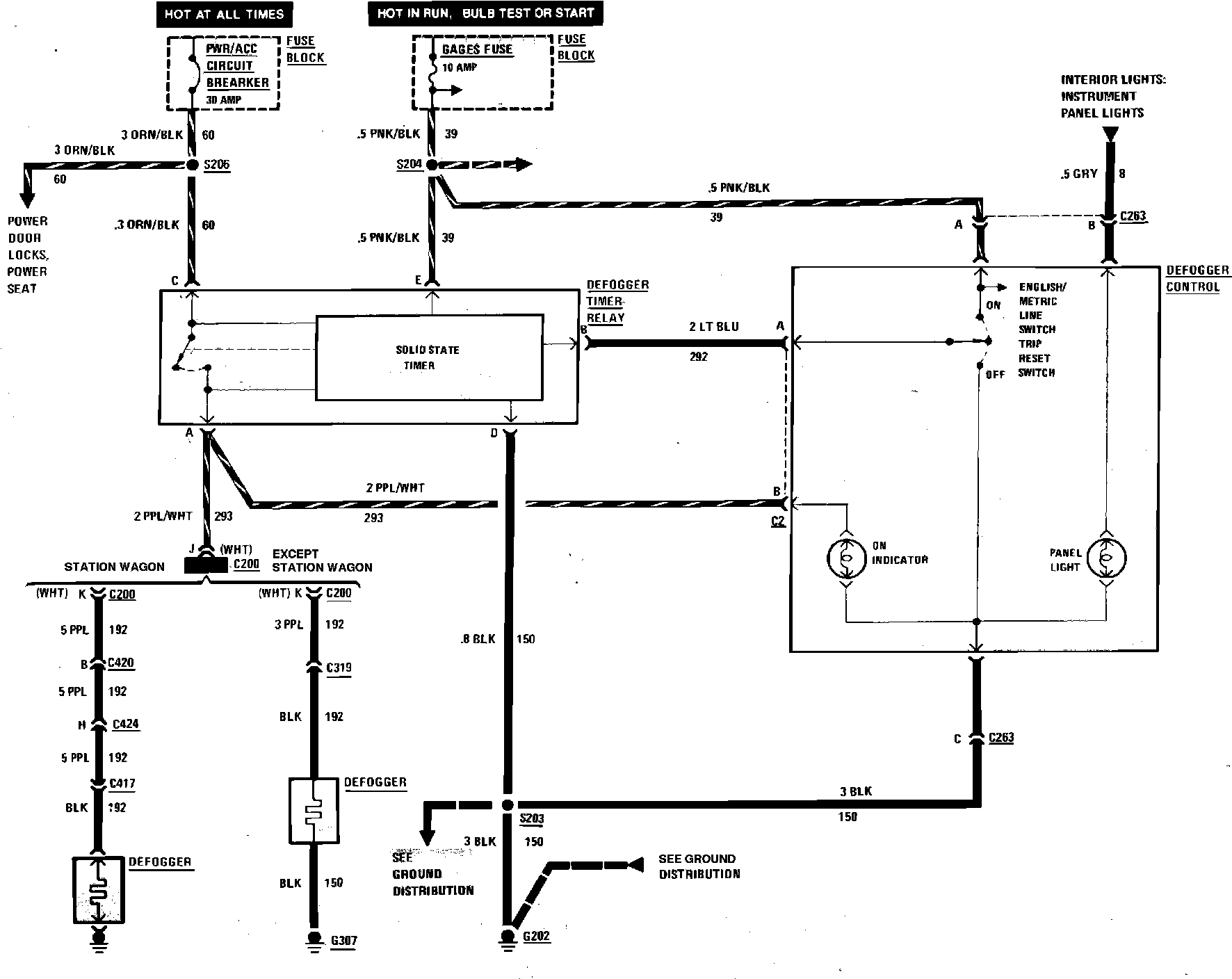

Rear Defogger Wiring Circuit. W/Digital Cluster & 6000 STE:
