Emission Controls & Engine Data Sensors

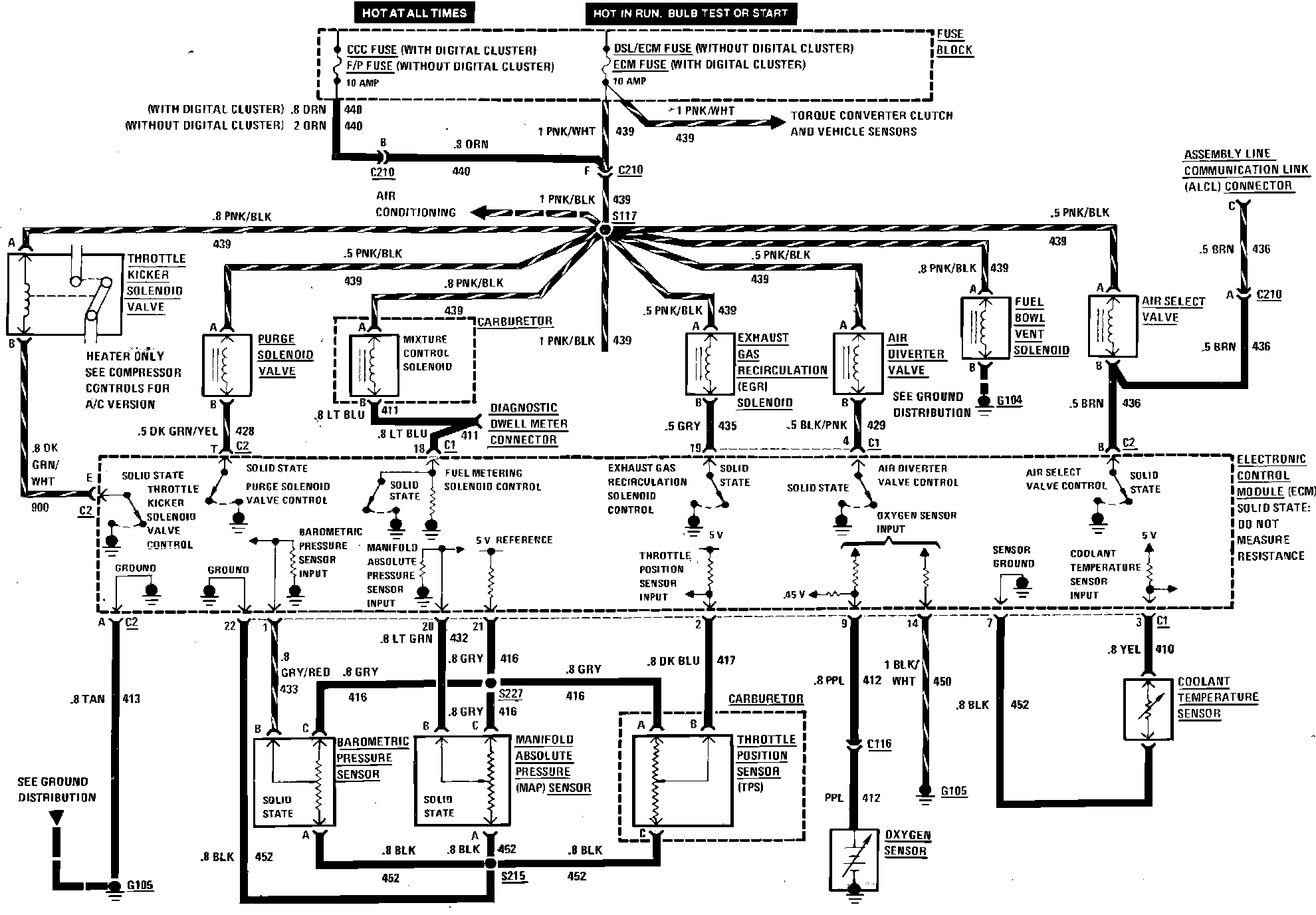

Computer Command Control Wiring Circuit (Emission Controls & Engine Data Sensors, Part 1 Of 2) VIN X:



Computer Command Control Wiring Circuit (Emission Controls & Engine Data Sensors, Part 2 Of 2) VIN X:
