6000 (Less Digital Cluster) VIN X Except STE

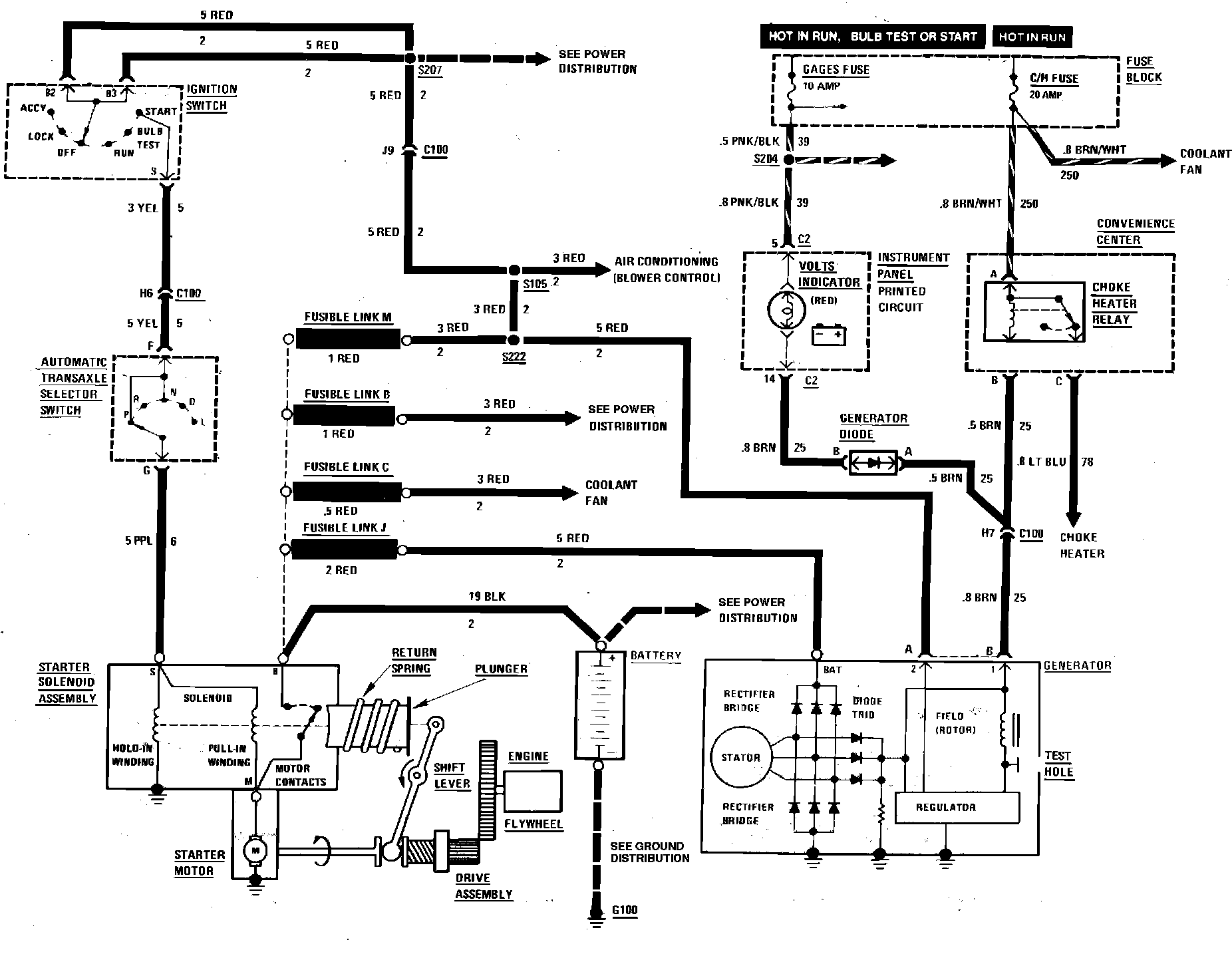

Charging System & Starter Wiring Circuit. (Less Digital Cluster) VIN X:
