Console
>>
W/Digital Cluster
W/Digital Cluster

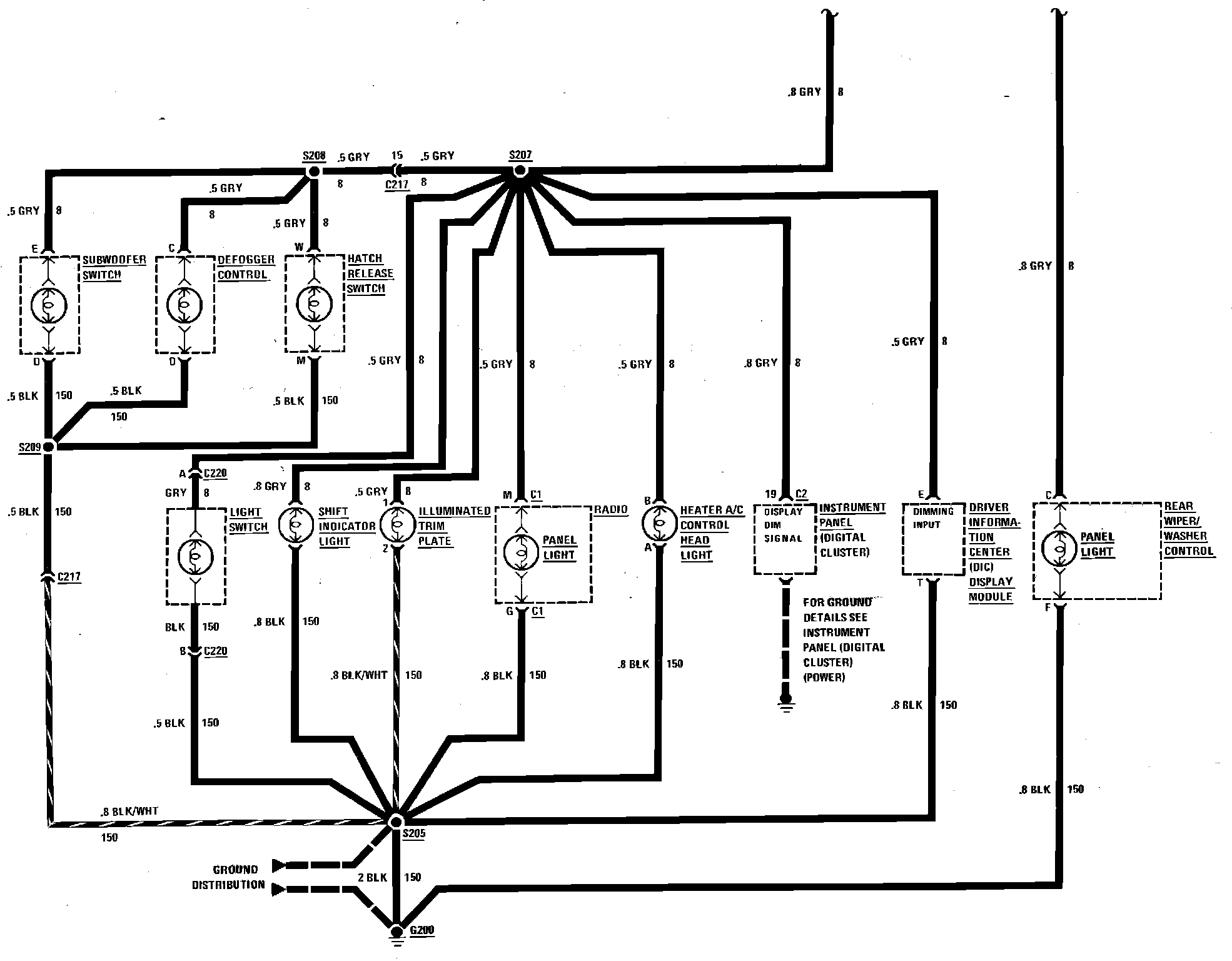

Instrument Panel & Console Lighting (Part 1 of 2). W/Digital Cluster:

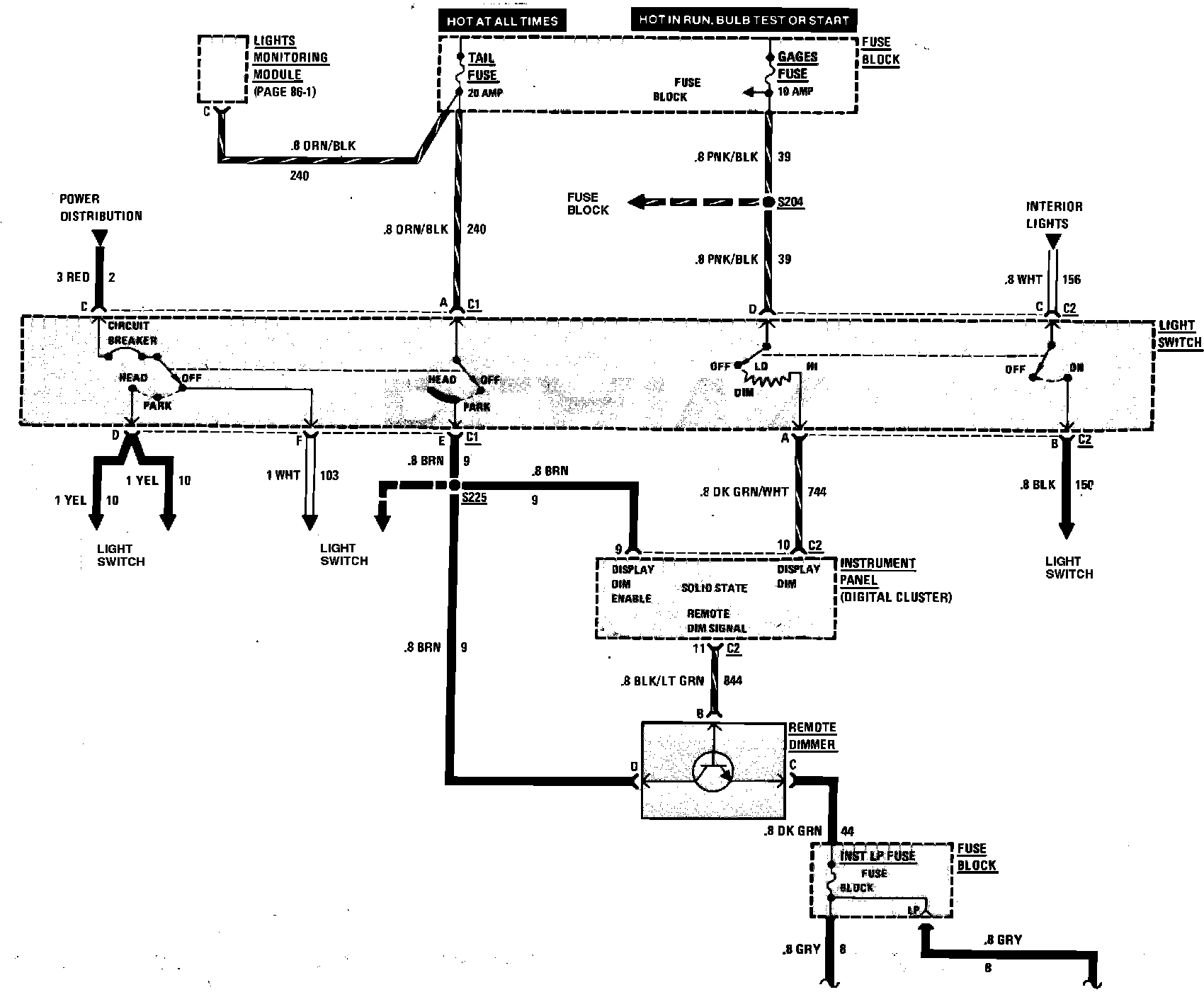

Instrument Panel & Console Lighting (Part 2 of 2). W/Digital Cluster:
