Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Warning Alarms & Chime
>>
With Digital Cluster
With Digital Cluster

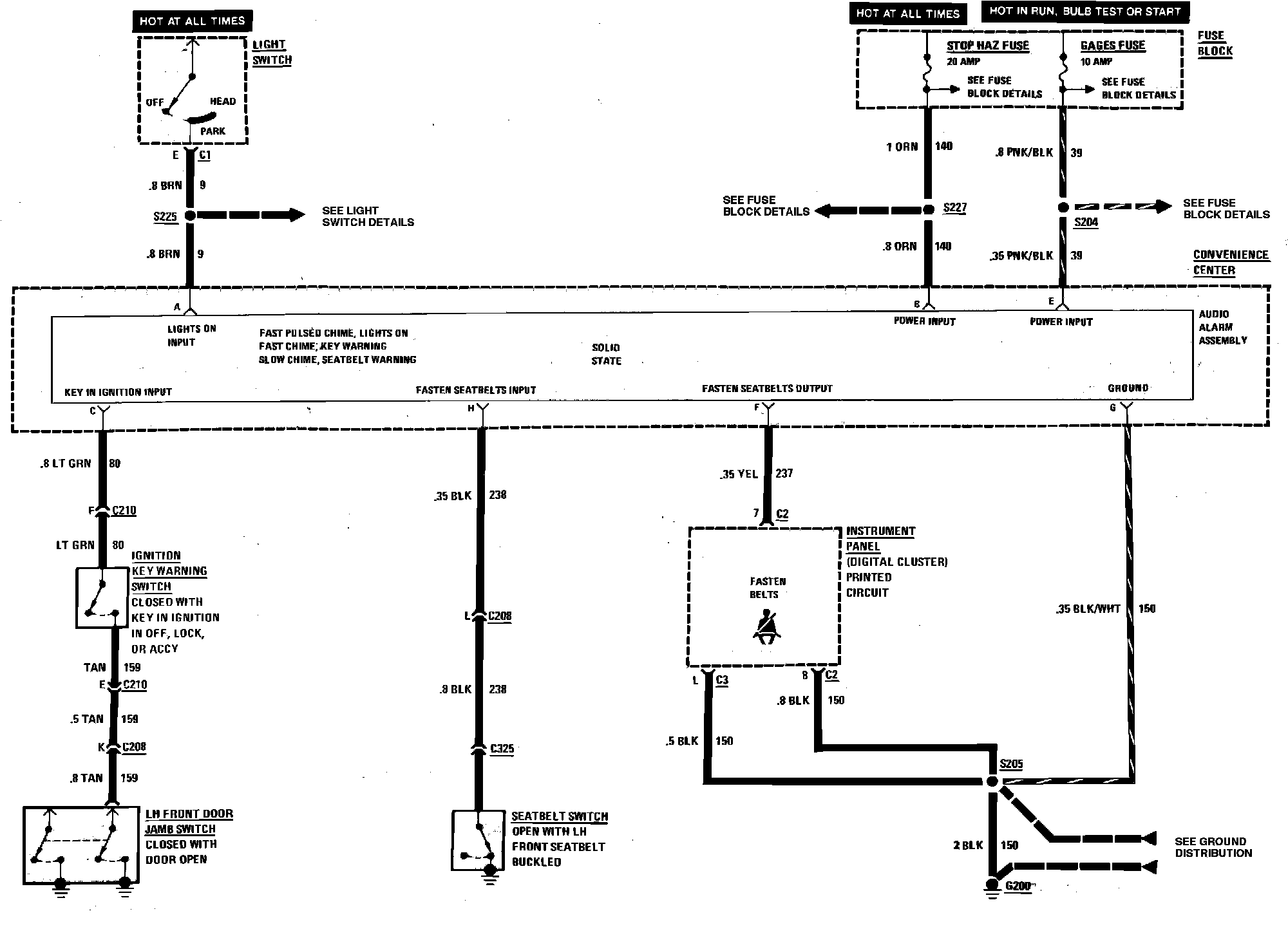

Warning Alarms & Chime Wiring Circuit. W/Digital Cluster:
