Power Trunk / Liftgate Lock Actuator
>>
Luggage Compartment Lid & Tailgate Release
Luggage Compartment Lid & Tailgate Release

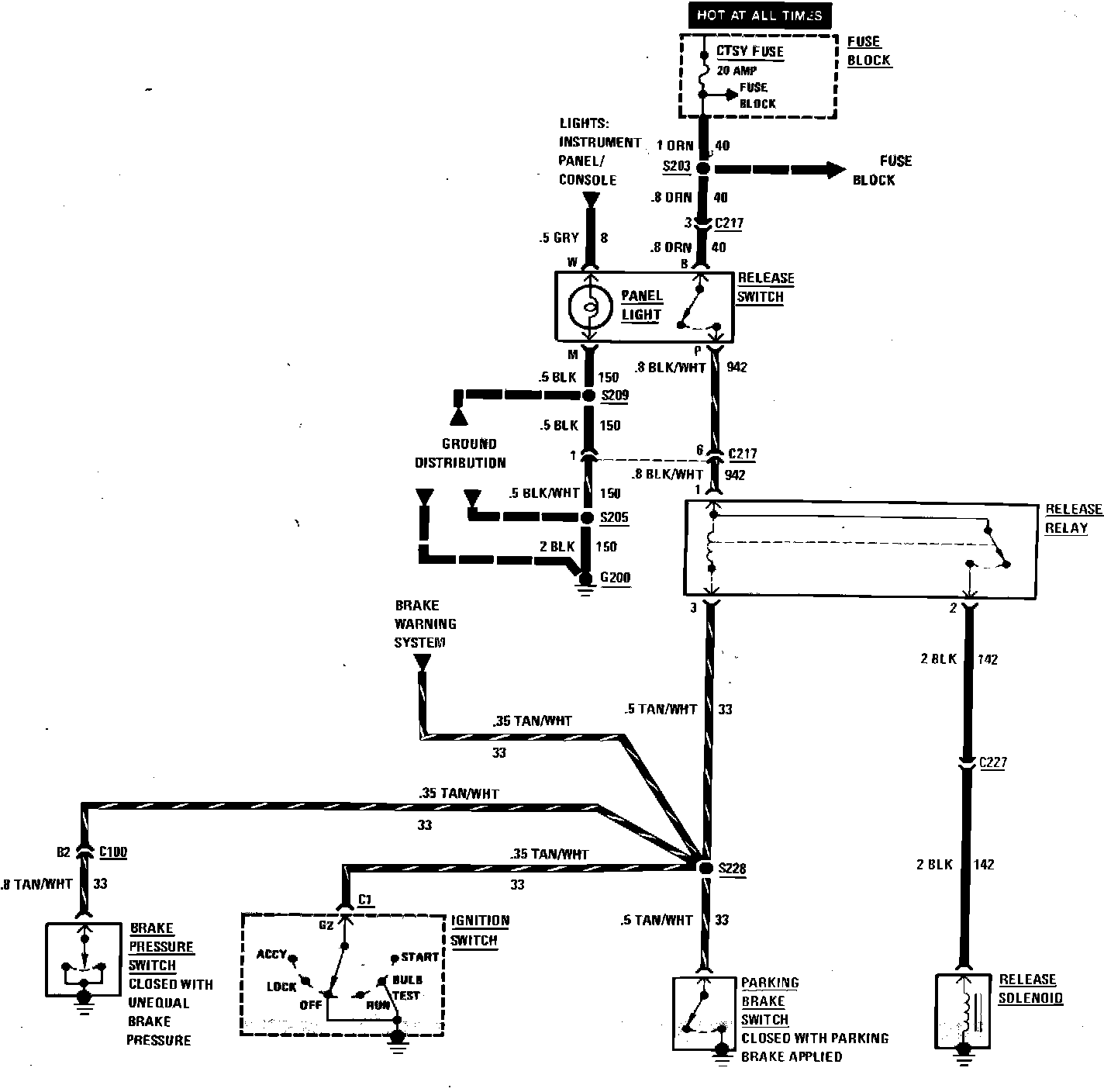

Hatch Release Wiring Circuit:
